GBA H 1000 1 E
Instructions for Use

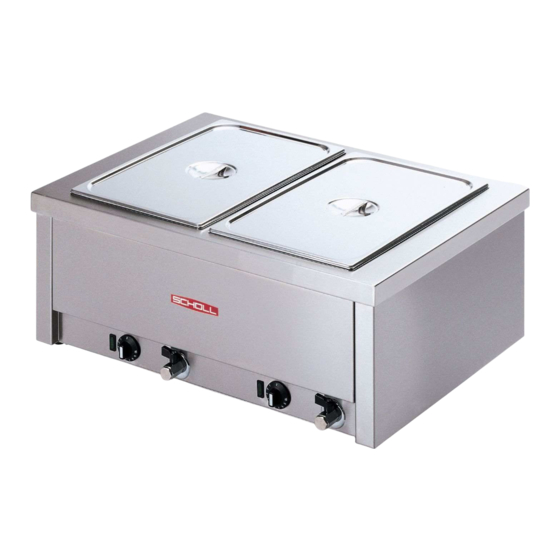

Bain-Marie tabletop
Continuously heated basin
Model-No.
3010 TA
3021 TA
3012 TA
3013 TA
3014 TA
3015 TA
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 01-2018
Separately heated basins
Art.-No.
Model-No.
H 1000
H 1100
H 1200
3012 TAG
H 1300
3013 TAG
H 1400
3014 TAG
H 1500
3015 TAG
Page 1 of 35
Art.-No.
H 1210
H 1310
H 1410
H 1510
Januar 17, 2018
Rev. 1
Advertisement
Table of Contents
Related Manuals for Scholl 3010 TA
Summary of Contents for Scholl 3010 TA
- Page 1 H 1400 3014 TAG H 1410 3015 TA H 1500 3015 TAG H 1510 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg/Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de E-mail info@scholl-gastro.de...
-
Page 2: Table Of Contents
GBA H 1000 1 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ....................5 Pictograms – Warning notes ......................7 Pictograms – Important notes ......................8 Product information ..........................9 Information regarding compliance with standards, laws and directives ......... - Page 3 GBA H 1000 1 E Technical data............................18 Execution ............................18 8.1.1 Execution continuously heated basin ..................19 8.1.2 Execution separately heated basins ..................19 Dimensioned drawings ........................20 8.2.1 Dimensioned drawing H 1000 ....................20 8.2.2 Dimensioned drawing H 1100 ....................21 8.2.3 Dimensioned drawing H 1200 ....................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA H 1000 1 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 Connecting the unit to the mains with its thermostat switch not set to „0“ may cause accidents. Only for Model-No. 3010 TA, 3021 TA: Do not allow this appliance to operate unattended. Ensure that the switch with indicator lamp and the dimmer is set to „0“ before inserting the plug into an electri- cal socket-outlet or connecting the appliance to the power supply.
-
Page 7: Pictograms - Warning Notes
GBA H 1000 1 E – W ICTOGRAMS ARNING NOTES Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent. -
Page 8: Pictograms - Important Notes
GBA H 1000 1 E – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. WARNING indicates a potentially dangerous situation. Failure to observe this warning notice may result in severe physical injury or death. -
Page 9: Product Information
GBA H 1000 1 E RODUCT INFORMATION Bain-Maries are electrically heated warm retaining basins. Bain-Maries are operated with water and are used for keeping warm preheated food at output temperature. Bain-Maries are feeded from above with GN-insets in accordance with DIN EN 631-1. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES Standards, laws, directives... -
Page 10: Packing, Transport, Intermediate Storage, Scope Of Delivery
GBA H 1000 1 E ACKING TRANSPORT INTERMEDIATE STORAGE SCOPE OF DELIVERY ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 11: Installation And Electrical Installation
GBA H 1000 1 E NSTALLATION AND ELECTRICAL INSTALLATION NSTALLATION Before the installation of the appliance, observe the following: Inspect the unit for any defect or damage sustained in transit. Check all screw connections for tightness. Familiarize yourself with the Instructions for Use and with the conditions for the safe operation of this appliance. -
Page 12: Operation
The Bain-Marie has a thermostat and an indicator lamp. The thermostat switches the heating on and off and set the temperature. Bain-Marie with continuously heated basin (Model-No. 3010 TA, 3021 TA): The Bain-Marie has a switch with indicator lamp and a thermostat. -
Page 13: Intended Use
Fill the Bain-Marie basin manually with water, fill level approx. 20-30 mm. Only Model-No. 3010 TA and 3021 TA: Fill level approx. 10 mm above fill mark. Only Model-No. 3010 TA and 3021 TA: Switch on the switch with indicator lamp. -
Page 14: Maintenance
GBA H 1000 1 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. - Page 15 GBA H 1000 1 E Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water containing a small amount of dishwashing detergent.
-
Page 16: Troubleshooting
GBA H 1000 1 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applica- ble safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 17: Possible Malfunctions
Bain-Marie was used drily with- Bain-Marie filling level: 20- out water. 30mm water Tthermostat defective Replace thermostat Heating defective Replace heating Model-No. 3010 TA, 3021 TA: Switch with indicator lamp Replace switch with indicator defective lamp Bain-Marie Operating error: Use GN-inset 200mm high,... -
Page 18: Technical Data
Bain-Marie manual filling by hand Bain-Marie water drain with ball valve Drain 1/2": Model-No. 3010 TA, 3021 TA, 3012 TAG, 3013 TAG, 3014 TAG, 3015 TAG Drain 3/4": Model-No. 3012 TA, 3013 TA, 3014 TA, 3015 TA E-connection: 230V: Connection cable approx. -
Page 19: Execution Continuously Heated Basin
GBA H 1000 1 E 8.1.1 E XECUTION CONTINUOUSLY HEATED BASIN Model-No. Art.-No. Length Depth Height GN-insets Voltage Power 3010 TA H 1000 360 mm 560 mm 285 mm 1 x 1/1- 230 V 1 kW 3021 TA H 1100 560 mm... -
Page 20: Dimensioned Drawings
GBA H 1000 1 E IMENSIONED DRAWINGS Dimensioned drawings are available upon request. 8.2.1 D H 1000 IMENSIONED DRAWING Model-No. Art.-No. 3010 TA H 1000 Page 20 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 21: Dimensioned Drawingh 1100
GBA H 1000 1 E 8.2.2 D H 1100 IMENSIONED DRAWING Model-No. Art.-No. 3021 TA H 1100 Page 21 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 22: Dimensioned Drawingh 1200
GBA H 1000 1 E 8.2.3 D H 1200 IMENSIONED DRAWING Model-No. Art.-No. 3012 TA H 1200 Page 22 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 23: Dimensioned Drawingh 1210
GBA H 1000 1 E 8.2.4 D H 1210 IMENSIONED DRAWING Model-No. Art.-No. 3012 TAG H 1210 Page 23 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 24: Circuit Diagrams
Circuit diagrams are available upon request. 8.3.1 C IRCUIT DIAGRAMS CONTINUOUSLY HEATED BASIN 8.3.1.1 C H 1000 H 1100 IRCUIT DIAGRAM Model-No. Art.-No. 3010 TA H 1000 3021 TA H 1100 Key: Switch with indicator lamp Thermostat Heating with overheat protection Page 24 of 35... -
Page 25: Circuit Diagramh 1200
GBA H 1000 1 E 8.3.1.2 C H 1200 IRCUIT DIAGRAM Model-No. Art.-No. 3012 TA H 1200 Key: Thermostat R1-R2 Heating with overheat protection Indicator lamp Page 25 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 26: Circuit Diagramh 1300
GBA H 1000 1 E 8.3.1.3 C H 1300 IRCUIT DIAGRAM Model-No. Art.-No. 3013 TA H 1300 Key: Thermostat R1-R3 Heating with overheat protection Indicator lamp Page 26 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 27: Circuit Diagramh 1400
GBA H 1000 1 E 8.3.1.4 C H 1400 IRCUIT DIAGRAM Model-No. Art.-No. 3014 TA H 1400 Key: Thermostat R1-R4 Heating with overheat protection Indicator lamp Page 27 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 28: Circuit Diagramh 1500
GBA H 1000 1 E 8.3.1.5 C H 1500 IRCUIT DIAGRAM Model-No. Art.-No. 3015 TA H 1500 Key: Thermostat R1-R5 Heating with overheat protection Indicator lamp Page 28 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 29: Circuit Diagrams Separately Heated Basins
GBA H 1000 1 E 8.3.2 C IRCUIT DIAGRAMS SEPARATELY HEATED BASINS 8.3.2.1 C H 1210 IRCUIT DIAGRAM Model-No. Art.-No. 3012 TAG H 1210 Key: S1-S2 Thermostat R1-R2 Heating with overheat protection H1-H2 Indicator lamp Page 29 of 35 Januar 17, 2018 Last revised 01-2018 Rev. -
Page 30: Circuit Diagramh 1310
GBA H 1000 1 E 8.3.2.2 C H 1310 IRCUIT DIAGRAM Model-No. Art.-No. 3013 TAG H 1310 Key: S1-S3 Thermostat R1-R3 Heating with overheat protection H1-H3 Indicator lamp Page 30 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 31: Circuit Diagramh 1410
GBA H 1000 1 E 8.3.2.3 C H 1410 IRCUIT DIAGRAM Model-No. Art.-No. 3014 TAG H 1410 Key: S1-S4 Thermostat R1-R4 Heating with overheat protection H1-H4 Indicator lamp Page 31 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 32: Circuit Diagramh 1510
GBA H 1000 1 E 8.3.2.4 C H 1510 IRCUIT DIAGRAM Model-No. Art.-No. 3015 TAG H 1510 Key: S1-S5 Thermostat R1-R5 Heating with overheat protection H1-H5 Indicator lamp Page 32 of 35 Januar 17, 2018 Last revised 01-2018 Rev. 1... -
Page 33: Disposal And Environmental Notes
GBA H 1000 1 E ISPOSAL AND NVIRONMENTAL OTES The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a sym- bol to that effect. -
Page 34: Warranty And Service
GBA H 1000 1 E ARRANTY AND SERVICE 10.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 35: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg/Germany Phone 0049 (0)2661/9868-10...
