2. MODEL SELECTION WHEN ORDERING

The following figure indicates the connection configuration of NCW-3DHPN.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except (1) to (5) in
the connection configuration.

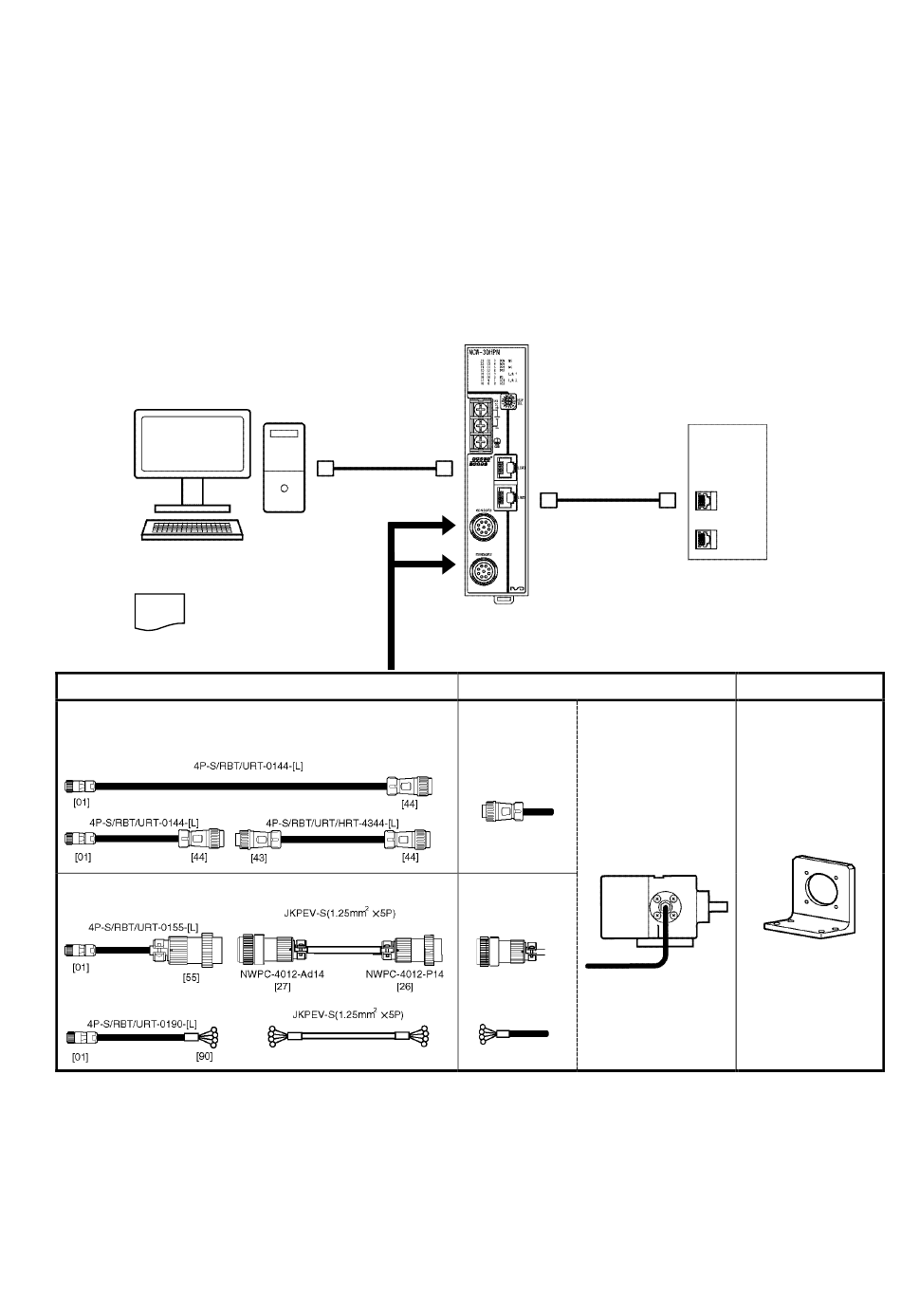

● Connection configuration
PROFINET controller.
( PLC, Industrial PC )
Configuration Tool
(5) GSDML File
(3) Extension sensor cable
In the case of using the NSD special cable
In the case of using the commercially available cable
(1) NCW-3DHPN
(PROFINET device)
(2) ABSOCODER sensor
Connector
type
B
P
R
2
PROFINET device
(4) Option
RB-01
VRE-P061
L type flange for
VRE-P074
VRE-P097 VRE-P061
VRE-P101
