  • Page 1: User Guide

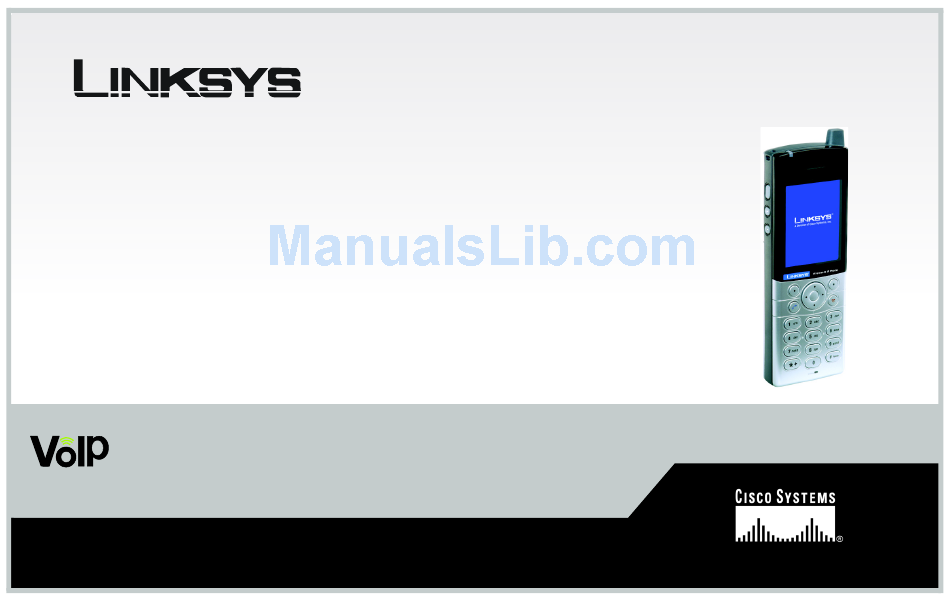

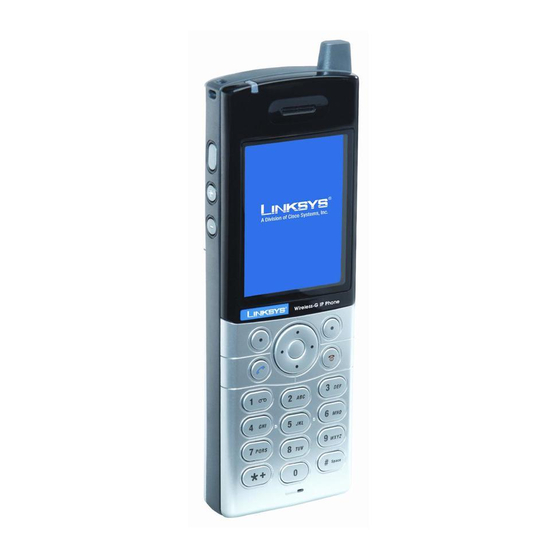

    ® A Division of Cisco Systems, Inc. Wireless-G IP Phone User Guide Voice WIP330 Model No.
  • Page 3 Wireless-G IP Phone Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved.
  • Page 4 Wireless-G IP Phone...

  • Page 5: Table Of Contents

    Wireless-G IP Phone Table of Contents Chapter 1: Introduction Welcome What’s in This User Guide? Chapter 2: Getting to Know the Wireless-G IP Phone The Bottom Panel The Front and Side Panels The Back Panel Chapter 3: Installing and Using the Wireless-G IP Phone Overview Inserting the Battery into the Wireless-G IP Phone Powering on the Wireless-G IP Phone...
  • Page 6 Wireless-G IP Phone List of Figures Figure 2-1: Bottom Panel Figure 3-20: Edit Outbound Proxy Port Figure 2-2: Front Panel Figure 3-21: Save Expire Time Figure 2-3: Symbol Selection Figure 3-22: Save Phone Number Figure 2-4: Side Panel Figure 3-23: Save User Name Figure 2-5: Back Panel Figure 3-24: Save Password Figure 3-1: Press the Button...
  • Page 7 Wireless-G IP Phone Figure 4-13: Enter Name Figure 4-39: Edit EAP Type (WPA-PSK) Figure 4-14: Select Network Settings Figure 4-40: Change EAP Type (WPA-PSK) Figure 4-15: Network Settings - DHCP Figure 4-41: Enter SSID Figure 4-16: Network Settings - Fixed IP Figure 4-42: Change Transmit Key Figure 4-17: Enter IP Address Figure 4-43: Edit WPA Key...
  • Page 8 Wireless-G IP Phone Figure 4-65: Edit Download URL Figure 4-66: Upgrade in Progress Figure 4-67: Upgrade Successful Figure 4-68: Edit Proxy IP Figure 4-69: Enter Proxy IP Figure 4-70: Enter Register Proxy IP Figure 4-71: Enter Register Proxy Port Figure 4-72: Change Outbound Proxy IP Figure 4-73: Edit Outbound Proxy Port Figure 4-74: Change Expire Time Figure 4-75: Change Phone Number...

  • Page 9: Chapter 1: Introduction Welcome

    Chapter 1: Introduction Welcome Thank you for choosing the Linksys Wireless-G IP Phone. It will allow you to make phone calls using your ip (internet protocol): a protocol used to broadband connection, whether you are at home, in your office, or at a public hotspot.
  • Page 10 Appendix E: Regulatory Information This appendix supplies the regulatory information regarding the IP Phone. • Appendix F: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 1: Introduction What’s in This User Guide?

  • Page 11: Chapter 2: Getting To Know The Wireless-G Ip Phone

    Wireless-G IP Phone Chapter 2: Getting to Know the Wireless-G IP Phone The Bottom Panel The IP Phone’s headset jack and USB port are located on the bottom panel. USB Port Headset Jack Figure 2-1: Bottom Panel Headset Jack This jack allows you to connect a headset. USB Port The USB port allows you to attach the included power adapter.

  • Page 12: The Front And Side Panels

    Wireless-G IP Phone Power LED The Front and Side Panels The power LED is located at the top of the IP Phone, while its buttons are located on the front and side panels. Power LED Blue/Red/Purple. The LED is a solid blue when the IP Phone is powered on and ready for phone calls.

  • Page 13: Figure 2-3: Symbol Selection

    Wireless-G IP Phone Icon Button Name Function Power or End Call Press and hold this button for two seconds to power the IP Phone on or off. Ends the call or exits the current menu Different Key To enter an entry or setting, use Choices or + Sign the keypad.

  • Page 14: The Back Panel

    Wireless-G IP Phone Icon Button Name Function Volume Increases or decreases the volume The Back Panel Volume The IP Phone’s battery compartment is located on the back panel of the IP Phone. For directions on how to insert the battery, refer to “Chapter 3: Installing and Using the Wireless-G IP Phone.”...

  • Page 15: Chapter 3: Installing And Using The Wireless-G Ip Phone

    Wireless-G IP Phone Chapter 3: Installing and Using the Wireless-G IP Phone Overview This chapter provides instructions for first-time installation and use of the IP Phone. You will insert the battery Metal Contacts into the IP Phone and then set it up for your wireless network and Internet phone service. Then you will be able to make and receive Internet phone calls.

  • Page 16: Powering On The Wireless-G Ip Phone

    Wireless-G IP Phone Powering on the Wireless-G IP Phone Make sure you have the account information, including necessary IP Phone settings, supplied by your Internet phone service provider. If you already have an account set up with your Internet phone service provider, then proceed to step 1.
  • Page 17 Wireless-G IP Phone 3. The power LED will flash, alternating between blue and purple. For the initial charge, allow the battery to charge for at least 10 hours, so the battery will have a full charge, which is indicated by a solidly lit power LED.

  • Page 18: Navigating The Wireless-G Ip Phone

    Wireless-G IP Phone Power LED Navigating the Wireless-G IP Phone Review the descriptions of the buttons you will use to navigate menus and select your choices. Icon Button Name Function Soft Key Press the left or right soft key to select the appropriate action shown on the left- or right- hand side of the screen.

  • Page 19: Figure 3-5: Symbol Selection

    Wireless-G IP Phone Icon Button Name Function Different Key To enter an entry or setting, use Choices or + Sign the keypad. Keys 1-9 can represent uppercase letters (A, B, C), lowercase letters (a, b, c), or numbers (1, 2, 3). Press the * (star) key to switch between the different choices.

  • Page 20: Setting Up The Wireless-G Ip Phone

    Wireless-G IP Phone Setting up the Wireless-G IP Phone Before you begin, make sure your network has an active Internet connection. 1. Press and hold the Power button for two seconds. 2. The IP Phone will boot up and automatically scan for wireless networks. Figure 3-6: Scan for Wireless Networks A list of wireless networks will be displayed and show their wireless network names (also known as Service...

  • Page 21: Figure 3-8: Connect To Wireless Network

    Wireless-G IP Phone 4. The IP Phone will automatically connect to the network you have selected. If WEP security is enabled on the selected network, a new screen will appear. Using the navigation pad, select the appropriate transmit key number and then move to the WEP Key field. Enter the network’s WEP key.

  • Page 22: Figure 3-12: Select Menu

    Wireless-G IP Phone 6. The standby screen will appear. Select Menu. Figure 3-12: Select Menu Phone Settings will be highlighted. Navigate the menu choices, and then select SIP Settings. (SIP stands for Session Initiation Protocol.) Figure 3-13: Select SIP Settings Chapter 3: Installing and Using the Wireless-G IP Phone Setting up the Wireless-G IP Phone...

  • Page 23: Figure 3-14: Edit Proxy Ip

    Wireless-G IP Phone 8. A list of SIP settings will be displayed. For the Proxy IP setting, select Edit. NOTE: The Proxy IP address and other information should have been supplied by your Internet phone service provider. If you do not have this information, contact your Internet phone service provider.

  • Page 24: Figure 3-16: Save Proxy Port

    Wireless-G IP Phone 10. Scroll down to Proxy Port, and select Edit. 11. Enter the Proxy Port number address in the new window, and then press the center selection key. Figure 3-16: Save Proxy Port 12. Scroll down to Register Proxy IP, and select Edit. 13.

  • Page 25: Figure 3-18: Save Register Proxy Port

    Wireless-G IP Phone 14. Scroll down to Register Proxy Port, and select Edit. 15. Enter the Register Proxy Port number in the new window, and then press the center selection key. Figure 3-18: Save Register Proxy Port 16. Scroll down to Outbound Proxy IP, and select Edit. 17.

  • Page 26: Figure 3-20: Edit Outbound Proxy Port

    Wireless-G IP Phone 18. Scroll down to Outbound Proxy Port, and select Edit. 19. Enter the Outbound Proxy Port number in the new window, and then press the center selection key. Figure 3-20: Edit Outbound Proxy Port 20. If your Internet phone service provider did not provide an Expire Time setting, then keep the default setting, 3600 seconds, and proceed to step 22.

  • Page 27: Figure 3-22: Save Phone Number

    Wireless-G IP Phone 22. Scroll down to Phone Number, and select Edit. 23. Enter the Phone Number you will use for Internet phone calls, and then press the center selection key. Figure 3-22: Save Phone Number 24. Scroll down to User Name, and select Edit. 25.

  • Page 28: Figure 3-24: Save Password

    Wireless-G IP Phone 26. Scroll down to Password, and select Edit. 27. Enter the Password, and then press the center selection key. Figure 3-24: Save Password 28. On the SIP Settings screen, select Return. Figure 3-25: Save SIP Settings Chapter 3: Installing and Using the Wireless-G IP Phone Setting up the Wireless-G IP Phone...

  • Page 29: Figure 3-26: Return To Standby Screen

    Wireless-G IP Phone 29. On the main menu, select Return. Figure 3-26: Return to Standby Screen 30. The standby screen will indicate that the IP Phone is ready for phone calls. The installation of the Wireless-G IP Phone is complete. Proceed to the next section, “Using the Wireless-G IP Phone.”...

  • Page 30: Using The Wireless-G Ip Phone

    Wireless-G IP Phone Using the Wireless-G IP Phone To make a call, enter the phone number you want to call. Then press the Call button. When you are on a phone call, select Option to see a list of menu choices. Select HangUp to end the call. To change the volume, use the + and - buttons on the side panel of the IP Phone.

  • Page 31: Figure 3-30: Second Call

    Wireless-G IP Phone Blind TFR. For a blind transfer, select Blind TFR. Dial the number to which you want to transfer the call. Select Blind TFR again. Then hang up. When you are on your call, select Blind TFR. A new window will appear. Enter the phone number to which you want to transfer the call, and then press the Call button.
  • Page 32 Wireless-G IP Phone Chapter 3: Installing and Using the Wireless-G IP Phone Using the Wireless-G IP Phone...

  • Page 33: Chapter 4: Configuring The Wireless-Gip Phone

    Wireless-G IP Phone Power LED Chapter 4: Configuring the Wireless-G IP Phone Instructions for Configuring the Wireless-G IP Phone Follow these instructions to configure the IP Phone’s settings. You will use these buttons to navigate menus and select your choices. Icon Button Name Function...

  • Page 34: Figure 4-2: Symbol Selection

    Wireless-G IP Phone Icon Button Name Function Different Key To enter an entry or setting, use Choices or + Sign the keypad. Keys 1-9 can represent uppercase letters (A, B, C), lowercase letters (a, b, c), or numbers (1, 2, 3). Press the * (star) key to switch between the different choices.

  • Page 35: Status Information

    Wireless-G IP Phone Status Information Wireless Battery Signal The standby screen will display a variety of information about the IP Phone. Strength Strength Wireless Signal Strength At the top of the screen, the icon on the left indicates wireless signal strength. Time Display The current time is shown.

  • Page 36: Settings Of The Wireless-G Ip Phone

    Wireless-G IP Phone Wireless Network Name The screen displays the name of the wireless network used by the IP Phone. Internet Phone Number The Internet phone number of the IP Phone is shown. Menu Press the left soft key button to view the main menu. Its choices will be described in further detail below. Figure 4-4: Standby Phonebook Screen...

  • Page 37: Figure 4-6: Call Log

    Wireless-G IP Phone Call Log Scroll through these choices and press the left soft key to make a selection. Select Return to return to the previous menu. Missed A list of missed calls will be displayed. Scroll through the calls to select the call you want. Select Option to see menu choices for the selected call.
  • Page 38 Wireless-G IP Phone If the phone number is already in the Phone Book, select Modify PhoneBook to modify its entry in the Phone Book. The Phone Book screen will automatically appear. Follow the instructions for the Phone Book settings. Received A list of received calls will be displayed.
  • Page 39 Wireless-G IP Phone Dialed A list of dialed calls will be displayed. Select Option to see menu choices for the selected call. Select Return to return to the previous menu. Option You have these choices: Dial (available when you have contacts in the Phone Book), Delete (available when you have contacts in the Phone Book), Delete All, and Add to (or Modify) PhoneBook.

  • Page 40: Figure 4-9: Select Phone Book

    Wireless-G IP Phone Phone Book You will see a list of contacts (when you have contacts in the Phone Book). To search for an entry, enter the contact’s name in the field provided. The appropriate entry will be selected. Select Option to see menu choices. Select Return to return to the previous menu. Figure 4-10: Phone Figure 4-9: Select Book...

  • Page 41: Figure 4-12: Add Person

    Wireless-G IP Phone Add. Select Add to add a new contact. Scroll through the different settings: Name, Home Number, Office Number, Mobile Number, Home-2 Number, Office-2 Number, Mobile-2 Number, Speed-Dial Number, Ring Tone, and E-Mail. For each setting, select Edit. Enter the appropriate information in the new window. Press the center selection key to save the new information, or select Exit to return to the previous menu.

  • Page 42: Figure 4-14: Select Network Settings

    Wireless-G IP Phone Network Settings You have two IP Modes available, DHCP and Fixed IP. In most cases, you should keep the default ip address: the address setting, DHCP, if your network router or gateway will assign IP addresses to the IP Phone. If you want used to identify a to assign a static IP address to the IP Phone, select Fixed IP.

  • Page 43: Figure 4-16: Network Settings - Fixed Ip

    Wireless-G IP Phone Fixed IP If Fixed IP is selected as the IP Mode, the screen will show these settings: IP Address, Subnet Mask, Default Gateway, Primary DNS, and Secondary DNS. IP Address. To add or change the IP Address, select Edit. Enter the new IP Address in the new window.

  • Page 44: Figure 4-20: Wireless

    Wireless-G IP Phone Wireless You have three choices, Set Wi-Fi, Profiles, and Hotspot. If you want to scan for wireless networks in your local area, select Set Wi-Fi. If you want to set configuration profiles for different network setups, select Profiles. The Hotspot screen lists the IP Phone’s default hotspots. If you want to save your user name and password for these default hotspots, select Hotspot.

  • Page 45: Figure 4-23: Connecting To Wireless Network

    Wireless-G IP Phone 2. The IP Phone will automatically connect to the network you have selected. WEP Security If WEP security is enabled on the selected network, a new screen will appear. Using the navigation pad, select the appropriate transmit key number and then move to the WEP Key field. Enter the network’s WEP key.

  • Page 46: Figure 4-27: Select Default Hotspot

    Wireless-G IP Phone Connection to a Default Hotspot Before you begin, make sure you have saved your User Name and Password for the default hotspot you want to use. These login settings can be configured through the Hotspot screen. 1. Scroll through the choices, and press the center selection key (in the middle of the navigation pad) to select the wireless hotspot you want to use.

  • Page 47: Figure 4-28: Detect Hotspot

    Wireless-G IP Phone Connection to a New Hotspot 1. Scroll through the choices, and press the center selection key (in the middle of the navigation pad) to select the wireless hotspot you want to use. If the hotspot you want is not shown, select Rescan for a new scan. 2.

  • Page 48: Figure 4-32: Wi-Fi Profiles

    Wireless-G IP Phone Profiles You will see a list of profiles (when you have profiles already configured). Select Option to see menu choices. Select Exit to return to the previous menu. You can designate the order of the profiles saved by the IP Phone. The next time it is powered on, it will use the first profile to automatically connect to the profile’s wireless network.

  • Page 49: Figure 4-35: Change Authentication Mode

    Wireless-G IP Phone Authentication Mode. You have a choice of Auto Switch, Share Key, Open System, and WPA- PSK. To change the Authentication Mode, select Edit. A new window will open. Scroll through the modes, and select the appropriate mode. Select Save to save the new Authentication Mode, or select Exit to return to the Edit Profile menu without changing the Authentication Mode.

  • Page 50: Figure 4-39: Edit Eap Type (Wpa-Psk)

    Wireless-G IP Phone WPA-PSK WPA Key. To enter the WPA Key, select Edit. Enter the new WPA Key in the new window. Press the center selection key to save the new WPA Key, or select Exit to return to the previous menu. EAP Type.

  • Page 51: Figure 4-42: Change Transmit Key

    Wireless-G IP Phone Auto Switch, Share Key, or Open System Encryption. You have a choice of Disabled and WEP encryption. To change the Encryption method, select Edit. If you select Disabled, there are no other settings to change. If you select WEP, there are three more settings available, Key Index, WEP Key, and 802.1x.

  • Page 52: Figure 4-44: Profile Added

    Wireless-G IP Phone EAP Type. To change the EAP Type setting, select Edit. You have a choice of TLS, MD5, and PEAP. Select Save to save the new EAP Type, or select Exit to return to the Add Profile menu without changing the EAP Type.

  • Page 53: Figure 4-45: Select Hotspot

    Wireless-G IP Phone Hotspot You will see a list of the IP Phone’s default hotspots. Scroll through these choices and press the left soft key to make a selection. Select Return to return to the Wireless screen. User Name. To change the User Name, select Edit. Enter the new User Name in the new window. Press the center selection key to save the new information, or select Exit to return to the previous menu.

  • Page 54: Figure 4-47: Select Phone Settings

    Wireless-G IP Phone Phone Settings You can customize the settings of the IP Phone. You have these choices: Ring Option, Keypad Tone, Wallpaper, Date & Time, Language, Phone Password, and Upgrade. Select Return to return to the previous menu. Ring Option Scroll through these choices and press the left soft key to make a selection.

  • Page 55: Figure 4-51: Keypad Tone

    Wireless-G IP Phone Keypad Tone To hear the actual keypad tone, scroll through these choices: Off, Soft, and Loud. The selected keypad tone is indicated by the <*> symbol. Highlight the keypad tone you want to select, and then press the center selection key to save your change.

  • Page 56: Figure 4-53: Change Date

    Wireless-G IP Phone Date & Time You have six choices: Date, Clock, Time Format, Clock Type, Time Zone, and NTP Server. Select Exit to return to the previous menu. Date. Press the left soft key to select the Date setting. A new window will be displayed. Make your changes, and then press the center selection key to save your change.

  • Page 57: Figure 4-57: Select Time Zone

    Wireless-G IP Phone Time Zone. Press the left soft key to select the Time Zone setting. A list of multiple time zones will be displayed. The selected time zone is indicated by the <*> symbol. Scroll through these choices, and highlight the time zone. Then select Settings to save your change. Select Exit to return to the Date &...

  • Page 58: Figure 4-61: Select Language

    Wireless-G IP Phone Language The selected language is indicated by the <*> symbol. Highlight the language you want to select, and then press the left soft key to save your change. Select Exit to return to the Phone Settings menu without changing the language. Phone Password You can set a password so only users who know the password can use the IP Phone.

  • Page 59: Figure 4-64: Select Upgrade

    Wireless-G IP Phone Upgrade Use this screen to upgrade the firmware of the IP Phone. The IP Phone is pre-configured with the correct Download URL (web address of the download site) and OS Image File (firmware upgrade file) entries. NOTE: Do not change these settings unless your Internet phone service provider has given you new settings.

  • Page 60: Figure 4-68: Edit Proxy Ip

    Wireless-G IP Phone SIP Settings SIP settings are used to configure your Internet phone service. The necessary setup information is supplied by your Internet phone service provider. If you do not have this information, contact your Internet phone service provider before you make any changes. Select Return to return to the previous menu.

  • Page 61: Figure 4-72: Change Outbound Proxy Ip

    Wireless-G IP Phone Register Proxy Port. To add or change the Register Proxy Port number, select Edit. Enter the new Register Proxy Port number in the new window. Press the center selection key to save the new setting, or select Exit to return to the previous screen. Outbound Proxy IP.

  • Page 62: Figure 4-76: Change User Name

    Wireless-G IP Phone User Name. To add or change the User Name, select Edit. Enter the new User Name in the new window. Press the center selection key to save the new setting, or select Exit to return to the previous screen.

  • Page 63: Figure 4-79: Web Site

    Wireless-G IP Phone Web Site A list of web sites (if saved) will be shown. Scroll through these choices and press the center selection key to visit the web site you want. To save frequently visited web sites, select Option to see menu choices, which will be described in further detail below.

  • Page 64: Figure 4-82: Web Site Options

    Wireless-G IP Phone To change how the cursor works, select Option. If your cursor uses the Click feature, the Drag & Drop feature will be available. If your cursor uses the Drag & Drop feature, the Click feature will be available. Press the left soft key to select the new cursor feature, or select Return to return to the website.

  • Page 65: Figure 4-84: Add Web Site

    Wireless-G IP Phone Add. Select Add to create a new web site entry with the following information: Name, URL (web address), and Port Number. Scroll through these choices, and select Edit to configure a setting. Name. To enter the Name, select Edit. Enter the new Name in the new window. Press the center selection key to save the new information, or select Exit to return to the previous menu.

  • Page 66: Figure 4-85: Web Cam

    Wireless-G IP Phone Web Cam Use the IP Phone to view video from any Linksys web camera. On the Web Cam screen, a list of Linksys web cameras (if saved) will be shown. Scroll through these choices and press the center selection key to view video.
  • Page 67 Wireless-G IP Phone Port Number. To change the Port Number, select Edit. Enter the new Port Number in the new window. Press the center selection key to save the new information, or select Exit to return to the previous menu. (If you are not sure how to change this setting, keep the default, 80.) Select Return to return to the Web Cam screen.

  • Page 68: Figure 4-89: Information

    Wireless-G IP Phone Information The status information of the IP Phone and its software is displayed on this read-only screen. Scroll through the settings to view them. Select Return to return to the previous menu. Phone Number. Displayed here is the Phone Number of the IP Phone. IP Address.

  • Page 69: Appendix A: Troubleshooting

    This appendix provides solutions to problems that may occur during the installation and operation of the Wireless-G IP Phone. Read the description below to solve your problems. If you can't find an answer here, check the website of your Internet phone service provider or the Linksys website at www.linksys.com/international. Common Problems and Solutions 1.
  • Page 70 Wireless-G IP Phone If you have a Linksys router, then follow these instructions: 1. On one of your networked computers, open your web browser. 2. Access the Router’s Web-based Utility by going to http://192.168.1.1 or the IP address of the Router.
  • Page 71 Wireless-G IP Phone 2. When I’m on a telephone call, words are dropped intermittently. Go through this checklist until your problem is solved: • Are you using a wireless router and cordless phone? If so, the router and cordless phone may be using the same frequency and interfere with each other.
  • Page 72 IP address to the IP Phone. Contact your Internet phone service provider for assistance. If you have a non-Linksys router, refer to its documentation for instructions. If you have a Linksys router, then follow these instructions: 1.
  • Page 73 Wireless-G IP Phone 8. Repeat steps 5-7 until you have entered all four port ranges for the IP Phone. Application Start and End Protocol IP Address Enable Internet phone 1 5060 to 5061 (IP address of IP Phone) Internet phone 2 53 to 53 (IP address of IP Phone) Internet phone 3...

  • Page 74: Frequently Asked Questions

    Wireless-G IP Phone Frequently Asked Questions Can I make calls if my Internet connection is down? No. Your high-speed Internet connection must be active when you make Internet phone calls. Can I use the IP Phone to make a call and browse the Internet at the same time? No.

  • Page 75: Appendix B: Glossary

    This glossary contains some basic networking terms you may come across when using this product. For more advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary. Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network.
  • Page 76 Wireless-G IP Phone DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be “seen” from the Internet. DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses. Domain - A specific name for a network of computers.
  • Page 77 Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products. Port - The connection point on a computer or networking device used for plugging in cables or adapters.
  • Page 78 Wireless-G IP Phone Switch - 1. A data switch that connects computing devices to host computers, allowing a large number of devices to share a limited number of ports. 2. A device for making, breaking, or changing the connections in an electrical circuit. TCP (Transmission Control Protocol) - A network protocol for transmitting data that requires acknowledgement from the recipient of data sent.

  • Page 79: Appendix C: Specifications

    Wireless-G IP Phone Appendix C: Specifications Model WIP330 Standards 802.11b, 802.11g Channels 11 Channels (US, Canada), 13 Channels (Europe) Transmit Power 12 dBm for 802.11b and 802.11g @ Normal Temp Range External Interface One Mini USB 1.1 Port, One Stereo Ear Phone Jack Display QVGA with 65k colors, 2.2 inch (55.9 mm) (240 x 320 pixels)
  • Page 80 Wireless-G IP Phone DTMF Transmission In-band, Out-band (RFC2833) Voice Quality Acoustic Echo Cancellation Jitter Buffer Control Comfortable Noise Generation Packet Loss Concealment Dimensions 1.84" x 5.32" x 0.74" (W x H x D) (46.7 mm x 135.2 mm x 18.8 mm) Unit Weight 4.20 oz.

  • Page 81: Appendix D: Warranty Information

    LIMITED WARRANTY Your Internet phone service provider warrants to You that, for a period of one year (the “Warranty Period”), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Your Internet phone service provider’s entire liability under this warranty will be for Your Internet phone service provider at its option to repair or replace the Product or refund Your purchase price less any rebates.
  • Page 82 Wireless-G IP Phone Appendix D: Warranty Information...

  • Page 83: Appendix E: Regulatory Information

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated. The Maximum average SAR(1g) test value is 0.303 W/kg. Linksys declares that WIP 330 (FCC ID: Q87-WIP330) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. Appendix E: Regulatory Information...
  • Page 84 Wireless-G IP Phone Safety Notices Caution: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm.
  • Page 85 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of Linksys products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:...
  • Page 86 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 87 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 88 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 89 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 90 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 91 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 92 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 93 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 94 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 95 Wireless-G IP Phone Appendix E: Regulatory Information...
  • Page 96 Wireless-G IP Phone For more information, visit www.linksys.com. Appendix E: Regulatory Information...

  • Page 97: Appendix F: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: 800-546-5797 (LINKSYS) Or fax your request in to:...
  • Page 98 Wireless-G IP Phone Appendix F: Contact Information...
  • Page 99 www.linksys.com...
