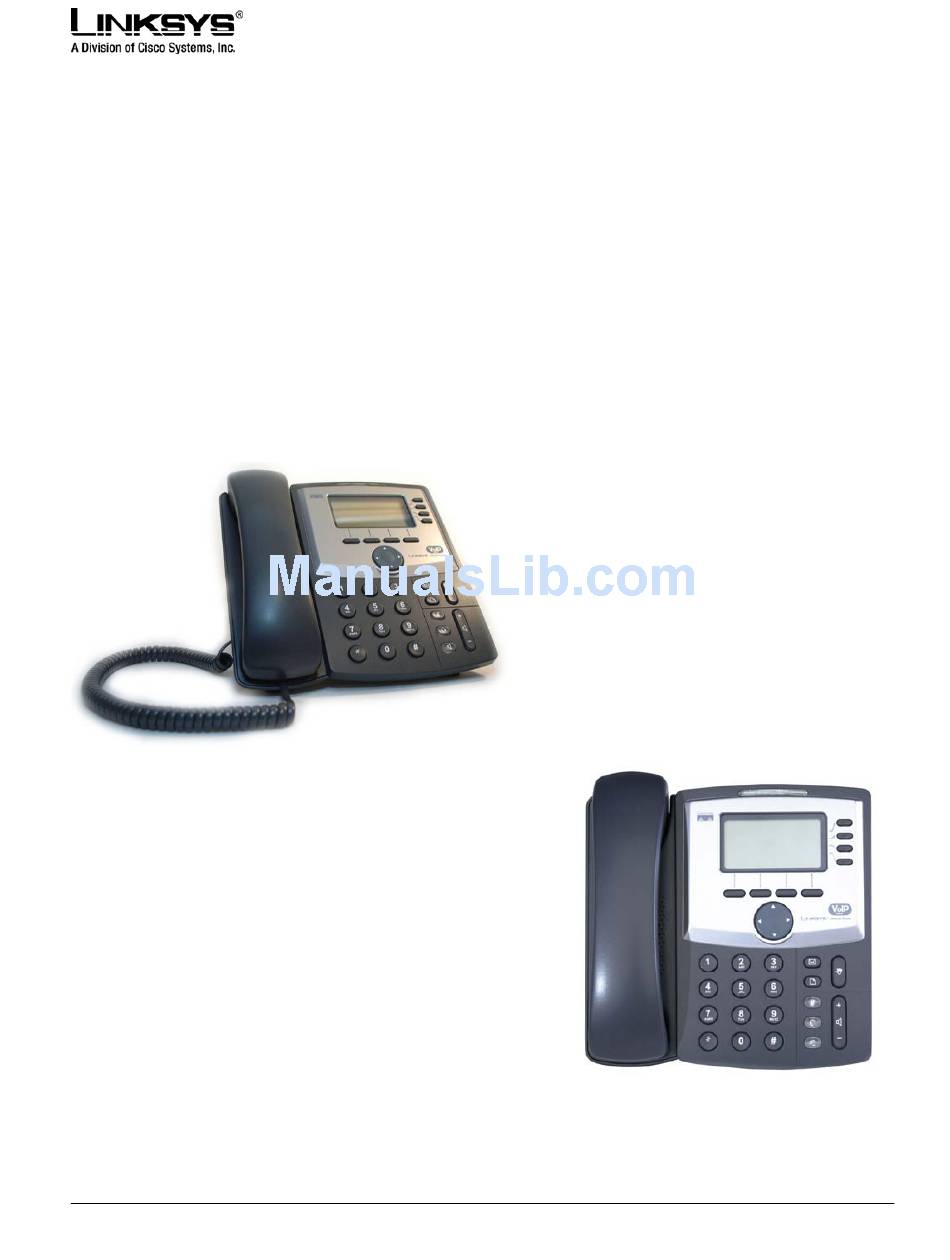

DRAFT
Linksys, Inc.
SPA941 Administration Guide
October 2005
Version 0.1 (DRAFT)
© 2003 - 2005 Linksys, a Division of Cisco Systems
Proprietary (See Copyright Notice on Page 2)
1
