www.ti.com
EVM User's Guide: TDP2004EVM
TDP2004 Evaluation Module
Description

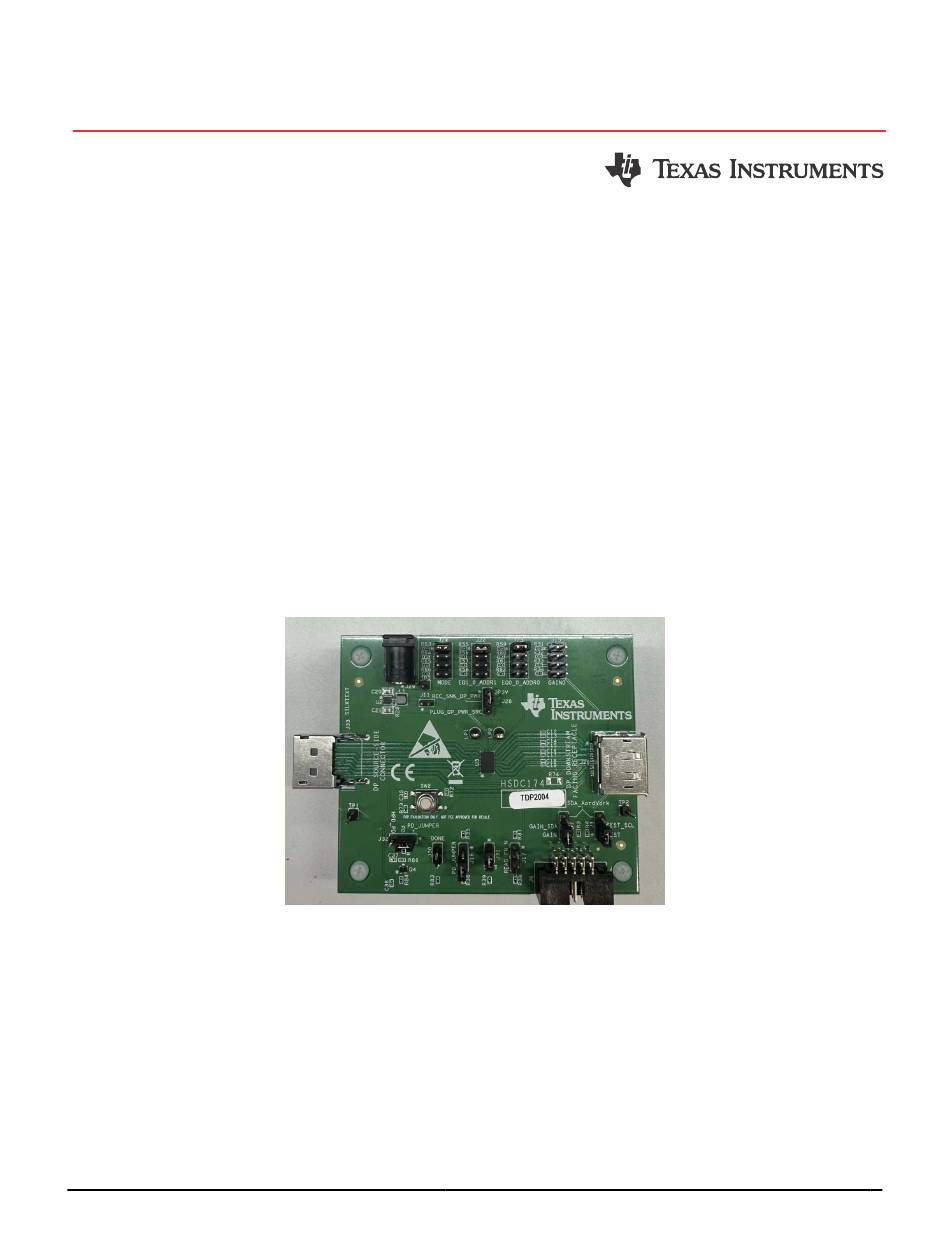

The TDP2004 EVM is a PCB created to help
for customers evaluate the TDP2004 for video
applications with Display Port (DP) interfaces. This
EVM can also be used as a hardware reference
design for implementations of the TDP2004. PCB
design or layout files can be provided upon request
to provide PCB design illustrations of the routing or
placement rules with a TDP2004 component.
Features
Supports DisplayPort 2.1 up to 20Gbps - RBR,
HBRx, UHBRx
Protocol agnostic linear equalizer supporting most
AC coupled interfaces up to 20Gbps
Excellent electrical performance at 20Gbps
(10GHz Nyquist):
– 19dB equalization
SCAU059A – JANUARY 2024 – REVISED MARCH 2024
Submit Document Feedback
– 1.8V DC linearity, 1.08V AC linearity
– -15dB/ -16dB Rx / Tx return loss
– -60dB NEXT, -43 dB FEXT cross talk
– 70 fs low additive RJ with PRBS data
Transparent to DisplayPort 1.4 and 2.1 link training
Single 3.3V supply with low active power: 160mW /
channel
Internal voltage regulator provides immunity to
supply noise
High linearity easing DP compliance ratio tests
High channel BW resulting excellent linear EQ
curves
Pin-strap, I2C or EEPROM programming
– 18 EQ boost settings
– 5 flat gain settings
TDP2004: 0°C to 70°C commercial temperature
TDP2004I: –40°C to 85°C industrial temperature
4mm × 6mm, 40 pin WQFN package
Copyright © 2024 Texas Instruments Incorporated
Description
TDP2004 Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDP2004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TDP2004

  • Page 1 – 1.8V DC linearity, 1.08V AC linearity Description – -15dB/ -16dB Rx / Tx return loss The TDP2004 EVM is a PCB created to help – -60dB NEXT, -43 dB FEXT cross talk for customers evaluate the TDP2004 for video –...
  • Page 2: Kit Contents

    The TDP2004 EVM is used to implement the TDP2004. The TDP2004 is a 4-channel DisplayPort 2.1 redriver with a max data rate of 20Gbps. The TDP2004 is interfaced via two DP2.1 ports. One plug for the source side connection and one receptacle for the sink side connection. This device can be configured in either I2C mode or pin-strap mode (recommended).
  • Page 3: Configuration Jumpers

    Multiple jumpers are provided on the EVM for configuration of TDP2004 and also for probe points. The following is a list of 5-level jumpers which are used to configure the TDP2004: J1, J7, J8, J11, J15, J16, J17, J22, J23, J24, J28, J30, J31,and J32. The jumper position to select between the different levels is detailed in...
  • Page 4: Pin Mode

    I2C MODE At 10GHz eq_stage1_3:0 eq_stage2_2:0 eq_profile_3:0 eq_stage1_byp 10.0 11.0 12.0 12.5 13.5 14.5 15.0 15.5 16.5 17.0 18.0 19.0 TDP2004 Evaluation Module SCAU059A – JANUARY 2024 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 Sample scripts for this I2C host controller are provided by request. The target I2C address for the TDP2004 can be modified by the EVM jumpers J22 and J23. Please refer to the TDP2004 EQx/ADDRx pin settings and the corresponding I2C address. Refer to TDP2004 data sheet for the I2C target address options.
  • Page 6 Hardware Design Files www.ti.com 3 Hardware Design Files 3.1 Schematics Figure 3-1. Schematic-1 TDP2004 Evaluation Module SCAU059A – JANUARY 2024 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Hardware Design Files Figure 3-2. Schematic-2 SCAU059A – JANUARY 2024 – REVISED MARCH 2024 TDP2004 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Pcb Layouts

    Figure 3-4. Layer 2: Ground Plane Figure 3-3. Layer 1: Top Figure 3-6. Layer 4: Bottom Figure 3-5. Layer 3: Power Plane TDP2004 Evaluation Module SCAU059A – JANUARY 2024 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 ERJ-2GEJ472X RES_0402 Components 174K Stackpole Electronics Inc. RMCF0402FT174K R31,R35,R36,R37,R38,R Yageo RC0402JR-071KL R55,R59,R63,R73 R32,R56,R60,R64 8.25K Yageo RT0402BRE078K25L R33,R57,R61,R65 24.9K Yageo RT0402FRE0724K9L SCAU059A – JANUARY 2024 – REVISED MARCH 2024 TDP2004 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 STDOFF4 B3SN-3012 Omron B3SN-3012P SWITCH_B3SN TP1,TP2,TP3 TEST POINT Samtec HTSW-101-07-G-S berg1x1 TPS62082DSGT Texas Instruments TPS62082DSGT TDP2004 Texas Instruments TDP2004 WQFN TDP2004 Evaluation Module SCAU059A – JANUARY 2024 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11: Revision History

    NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision * (January 2024) to Revision A (March 2024) Page • Updated PCB Layout images..........................SCAU059A – JANUARY 2024 – REVISED MARCH 2024 TDP2004 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 13 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 14 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 15 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 16 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 17: Important Notice

    TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
  • Page 18: Texas Instruments

    Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TDP2004EVM...
