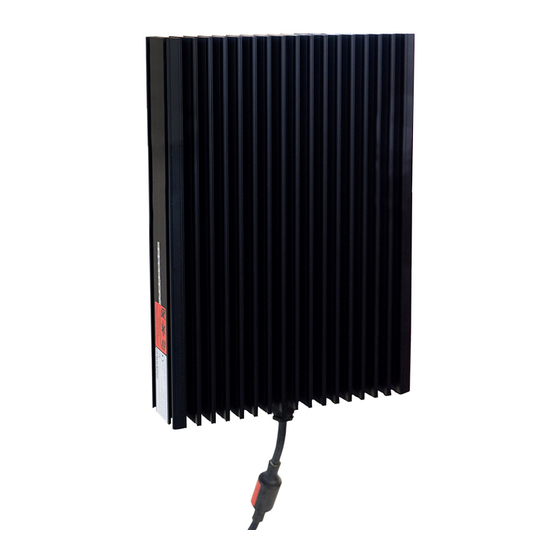

Intertec Data Systems CP THERM Series Operating Instructions Manual
Hide thumbs
Also See for CP THERM Series:
- Operating instructions manual (9 pages) ,
- Operating instructions manual (11 pages) ,
- Operating instructions manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intertec Data Systems CP THERM Series
Summary of Contents for Intertec Data Systems CP THERM Series

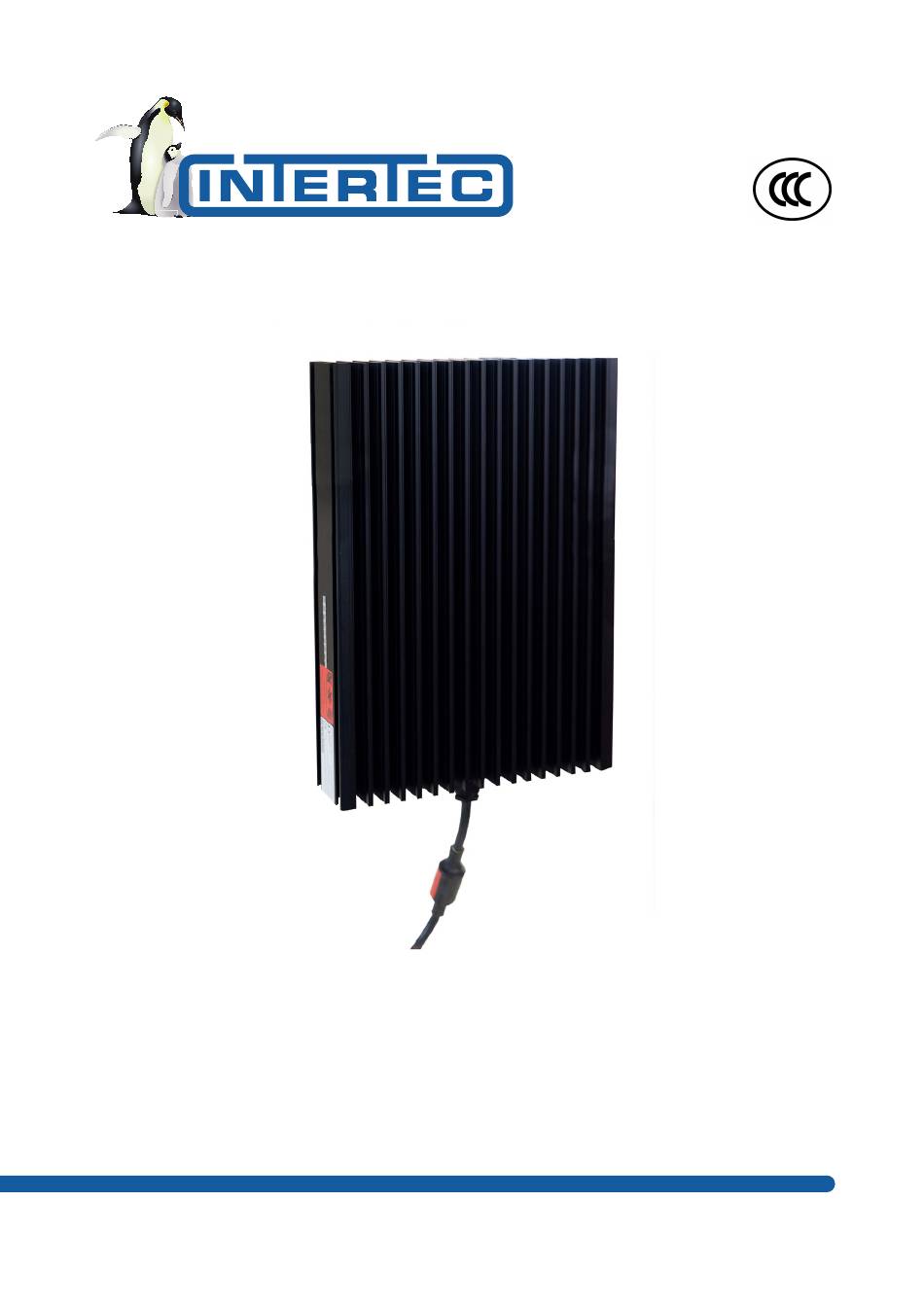

- Page 1 Operating instructions CP MEGATHERM DC.A HOM2540217355en-1 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation ................................ -
Page 3: General
www.intertec.info Operating Instructions CP MEGATHERM DC.A • When installing, using and maintaining this heater, General the user must follow this operating instructions and These operating instructions describe the safe and the following standards: proper way to work with the device. The safety GB/T 3836.1-2021 : Explosive atmospheres - Part 1: information and instructions given as well as the local accident prevention regulations and general safety... -
Page 4: Safety Information
www.intertec.info Operating Instructions CP MEGATHERM DC.A CAUTION CAUTION NOTICE Risk of burns from a hot surface This sign is warning about a hazardous situation which, Attainable highest temperatures: if not heeded, may lead to slight, reversible injury. - Max. 160°C with T3 heating systems - Max. -
Page 5: Installation
www.intertec.info Operating Instructions CP MEGATHERM DC.A Modifications and repairs may only be carried out by the Connecting cable Silicone hose cable, manufacturer. notch- and oil resistant, 3 x 1,0 mm² Ø8,5 mm For free convection, the heater needs to be installed with Connecting cable AM Silicone hose cable, ribs standing vertically. -
Page 6: Connection
www.intertec.info Operating Instructions CP MEGATHERM DC.A Additional installation material, such as rails or panels and also junction boxes, are not included in the standard scope of delivery (see Installation accessories [}Page 4]) and must be ordered additionally. Connection Junction box INFO The device may only be connected up and secured by a trained person, taking into account the "rated voltage"... -
Page 7: Commissioning
www.intertec.info Operating Instructions CP MEGATHERM DC.A CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. Terminal box The heating circuit is permanently disconnected by a temperature melt fuse which can't be reset if these installation instructions are not adhered to. -
Page 8: Deinstallation
www.intertec.info Operating Instructions CP MEGATHERM DC.A If the heater fails, check the installation. Carry out a NOTICE continuity test on the heating circuit. Pay attention to the connection diagram switching point Environmental damage may be caused if thermostat! disposed of incorrectly! In the case of overheating, the thermal indicator (see Electrical scrap and electronics components are subject figure) indicates a discoloration. -
Page 9: Certificate Ccc
www.intertec.info Operating Instructions CP MEGATHERM DC.A INTERTEC-Hess GmbH These instructions do not claim to take all designs, options or changes into Raffineriestr. 8 consideration, even in association with 93333 Neustadt/Donau installation, operation or maintenance. INTERTEC does not accept responsibility Germany for providing information about changes Phone: +49 9445 9532-0 made retrospectively. - Page 10 www.intertec.info Operating Instructions CP MEGATHERM DC.A Page 10 / 12 HOM2540217355en-1...
- Page 11 www.intertec.info Operating Instructions CP MEGATHERM DC.A ． 惫） CERTIFICATE FOR CHINA COMPULSORY PRODUCT CERTIFICATION 怠 SiTiiAS Worldwide Access CERTIFICATE NO: 2020322312003123 APPLICANT: Intertec Hess GmbH Schroeplerstrasse 37, 85053, Ingolstadt, Ger m any ADDRESS: MANUFACTURER: Intertec Hess GmbH ADDRESS: Schroeplerstrasse 37, 85053, Ingolstadt, Germany lntertec Hess GmbH FACTORY: ADDRESS:...
- Page 12 www.intertec.info Operating Instructions CP MEGATHERM DC.A ． 雹 中国国家强制性产品认证证书 怠 Worldwide Access 证书编号： 202032231 2003123 附 件 产品 名称 ： 加热器 型号规格： CP a THERM b c d e f fl h 与防爆无关代码 B,C,D K, L, M, N, 0, P, R, S ,T, U A ,S �700 T6, TS, T4, T3...
