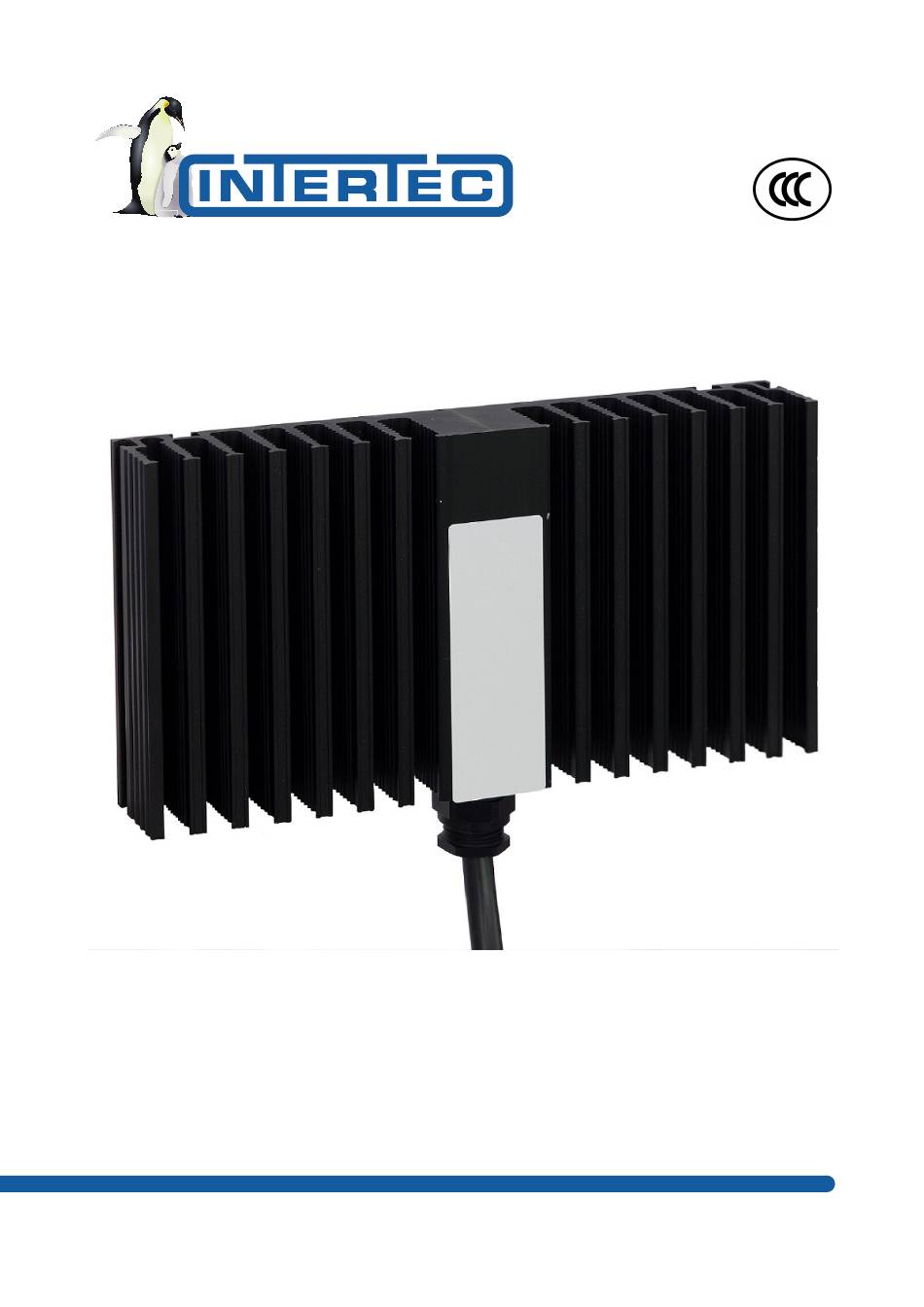

- Page 1 Operating Instructions CP SLIMTHERM DC.A HOM2540313099en-1 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Technical Data ................................ 4 7 Installation ................................ 5 8 Connection................................ -
Page 3: General
Operating Instructions CP SLIMTHERM DC.A • When installing, using and maintaining this heater, General the user must follow this operating instructions and These operating instructions describe the safe and the following standards: proper way to work with the device. The safety GB/T 3836.1-2021 : Explosive atmospheres - Part 1:... -
Page 4: Safety Information
Operating Instructions CP SLIMTHERM DC.A CAUTION CAUTION NOTICE Risk of burns from a hot surface This sign is warning about a hazardous situation which, Attainable highest temperatures: if not heeded, may lead to slight, reversible injury. - Max. 160°C with T3 heating systems - Max. -
Page 5: Installation
Operating Instructions CP SLIMTHERM DC.A Special voltages with corresponding power adjustment To ensure operational safety, the heater must operate and component selection are possible. under temperature conditions which will NOT exceed the trigger temperature of the limiter. Profile type "L" Height x 105 x 206 x 30 The operating temperatures must be adhered to. - Page 6 Operating Instructions CP SLIMTHERM DC.A Where operating voltage = measured voltage (rated voltage), then the heater is at its rated output. Mains voltage fluctuations up to 10 % are then permissible. Each heater with integrated TS thermostat must be...
-
Page 7: Commissioning
Operating Instructions CP SLIMTHERM DC.A CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. Terminal box The heating circuit is permanently disconnected by a temperature melt fuse which can't be reset if these installation instructions are not adhered to. -
Page 8: 14 Declaration Of Conformity
Operating Instructions CP SLIMTHERM DC.A If the heater fails, check the installation. Carry out a NOTICE continuity test on the heating circuit. Pay attention to the connection diagram switching point Environmental damage may be caused if thermostat! disposed of incorrectly! -
Page 9: 16 Certificate Ccc
Operating Instructions CP SLIMTHERM DC.A INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services.
