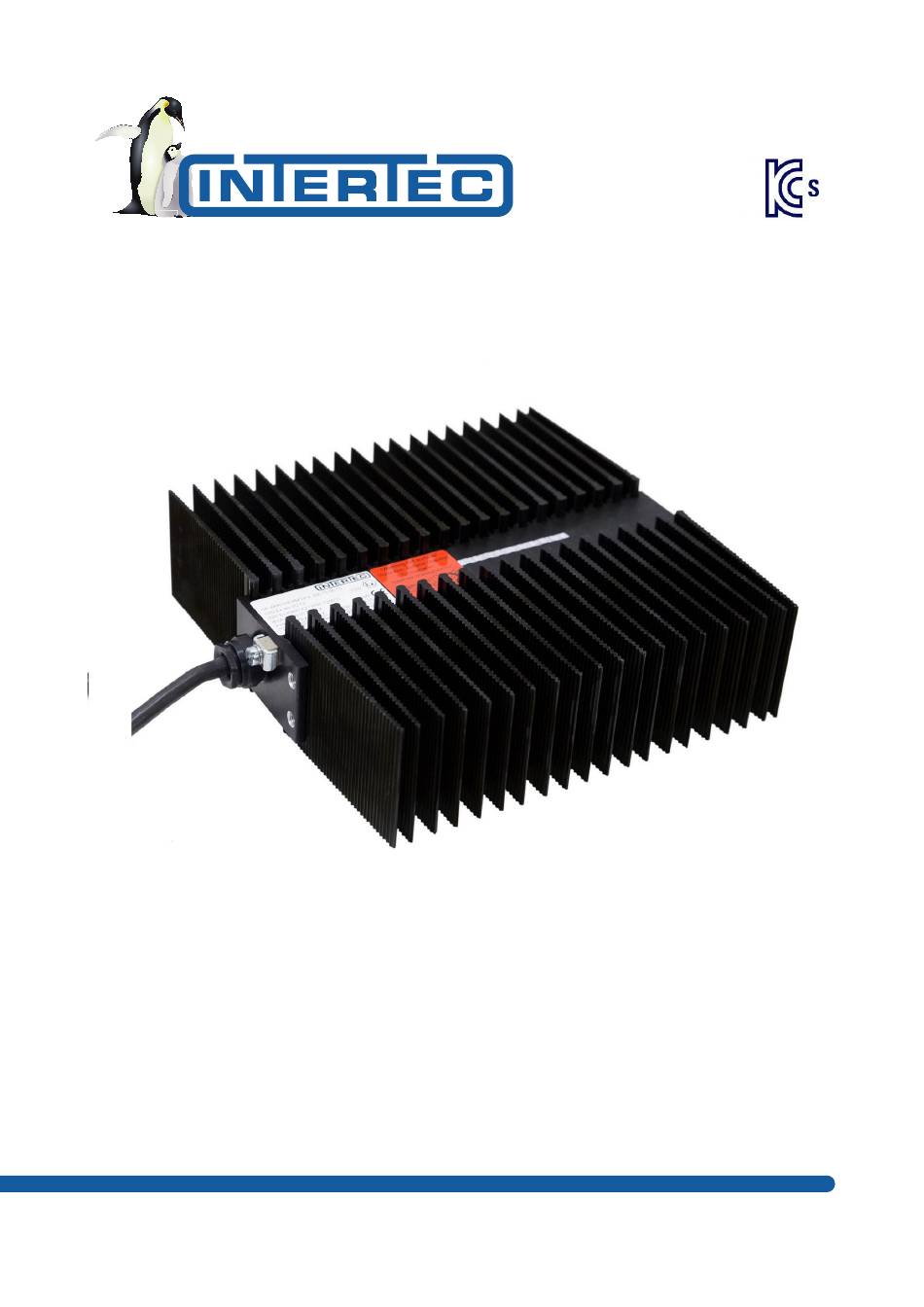

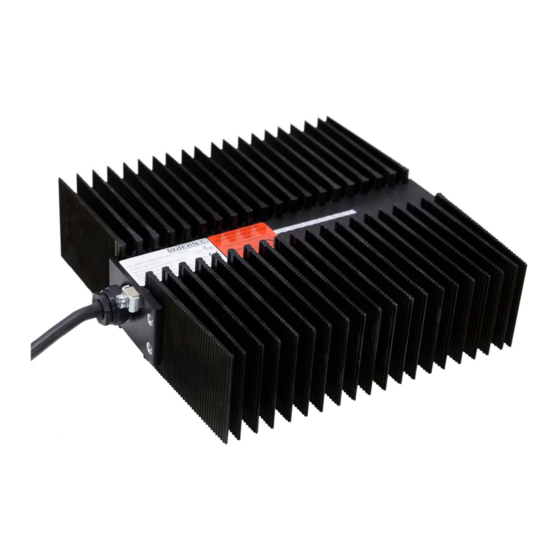

- Page 1 Operating Instructions CP VARITHERM DEPA HOM180508427Ien-4 • 18/12/2020...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Installation accessories ............................ 4 6 Technical Data ................................ 4 7 Installation................................ 4 8 Connection................................ -
Page 3: General
Operating Instructions CP VARITHERM DEPA General DANGER These operating instructions describe the safe and proper way to work with the device. The safety DANGER information and instructions given as well as the local This sign is warning about an extremely hazardous... -
Page 4: Installation Accessories
Operating Instructions CP VARITHERM DEPA Material Seawater-proof CAUTION aluminium, black anodized Risk of burns from a hot surface Mean Time Before Failure 50.000 h Attainable highest temperatures: Storage temperature - 60 to + 80°C - Max. 160°C with T3 heating systems Special voltages with corresponding power adjustment - Max. -
Page 5: Connection
Operating Instructions CP VARITHERM DEPA To ensure operational safety, the heater must operate Additional installation material, such as rails or panels under temperature conditions which will NOT exceed the and also junction boxes, are not included in the standard trigger temperature of the limiter. -
Page 6: Commissioning
Operating Instructions CP VARITHERM DEPA Junction box Terminal box Option AM Option: FA Heater Heating bn=brown bl=blue ye/gn=yellow/green bk=black gy=grey br=brown bl=blue ye/gn=yellow/green bk=black gr=grey Illustration 4: CP ..THERM with TAE Illustration 5: CP ..THERM with TS Commissioning If the heater is installed in accordance with the notes in the Installation [}Page ... -
Page 7: 14 Declaration Of Conformity
Operating Instructions CP VARITHERM DEPA Repairs may only be carried out by the manufacturer in • Sort other components according to their material the factory. properties and dispose of them. All components have to be kept clean and free of dust... -
Page 8: 15 Further Information And Service
Operating Instructions CP VARITHERM DEPA Dipl.-Ing. Martin Hess, Managing Director Further information and service If the information contained in this instruction manual should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further information and service.
