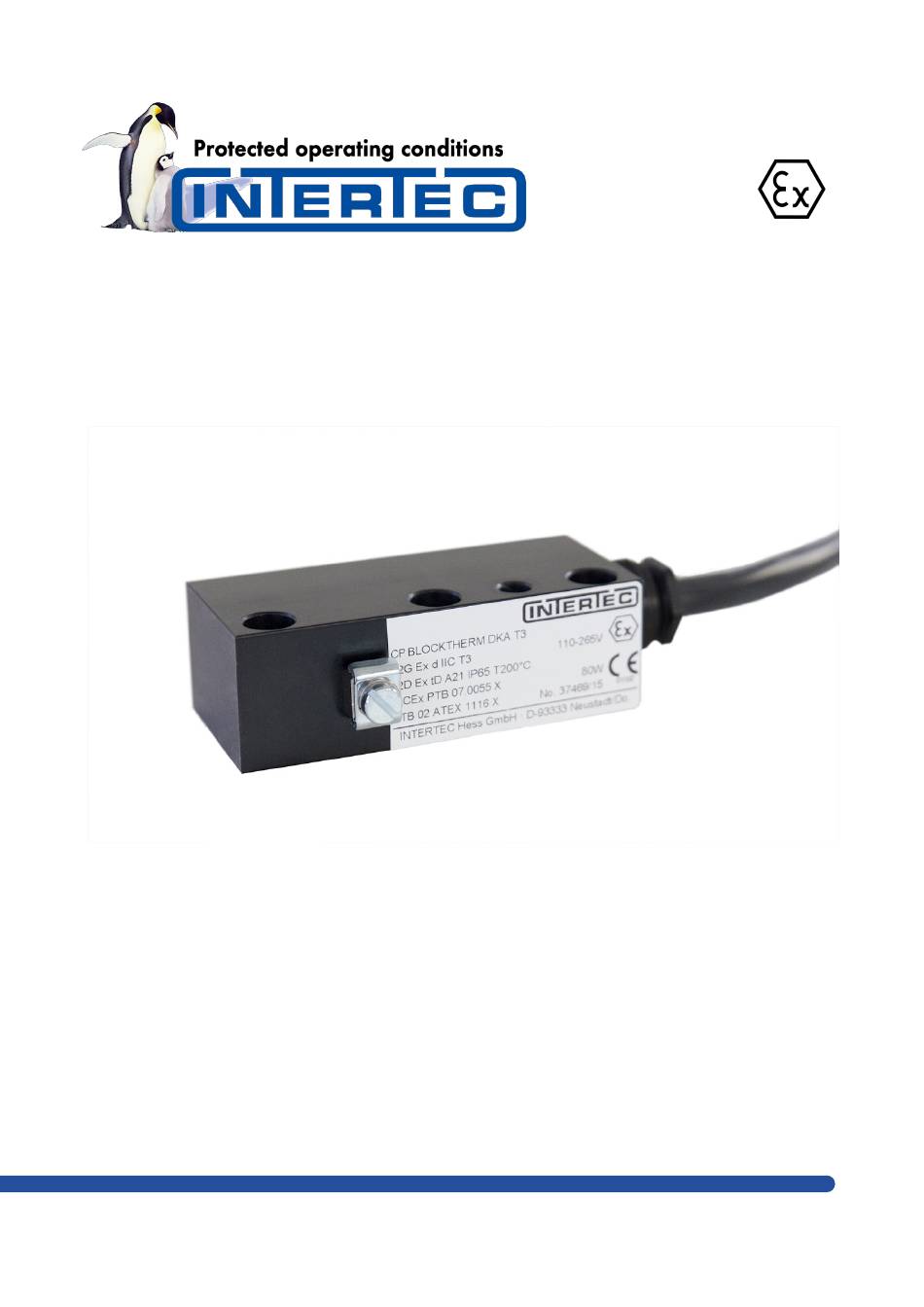

- Page 1 Operating Instructions CP BLOCKTHERM D.A HI HOM160086923Ien-1 • 01/06/2017...
- Page 2 www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Technical Data ................................ 4 6 Installation................................ 4 7 Connection................................ 5 8 Commissioning............................... 6 9 Maintenance................................
- Page 3 Operating Instructions CP BLOCKTHERM D.A HI Safety information can be found at the start of the General chapter before the instructions which may lead to a haz- These operating instructions describe the safe and ardous situation. Additional safety information can be proper way to work with the device.
- Page 4 Operating Instructions CP BLOCKTHERM D.A HI Rated voltage / Operating voltage CAUTION High temperature version Risk of burns from a hot surface Temperature class Attainable highest temperatures: - Max. 160°C with T3 heating systems - Max. 100°C with T4 heating systems - Max.
- Page 5 Operating Instructions CP BLOCKTHERM D.A HI oring device needs to be used which switches off the supply as soon as the insulation resistance is no greater than 50 Ω per Volt of the rated voltage (refer also to DIN EN 60079-14:2008;...
- Page 6 Operating Instructions CP BLOCKTHERM D.A HI Repairs may only be carried out by the manufacturer in the factory. In the dust Ex area, the applicable requirements of EN 60079-17 and EN 60079-19 must be complied with. Ground RS 485...
- Page 7 Operating Instructions CP BLOCKTHERM D.A HI Further information and service NOTICE If the information contained in this instruction manual Environmental damage may be caused if dis- should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further in- posed of incorrectly! formation and service.
