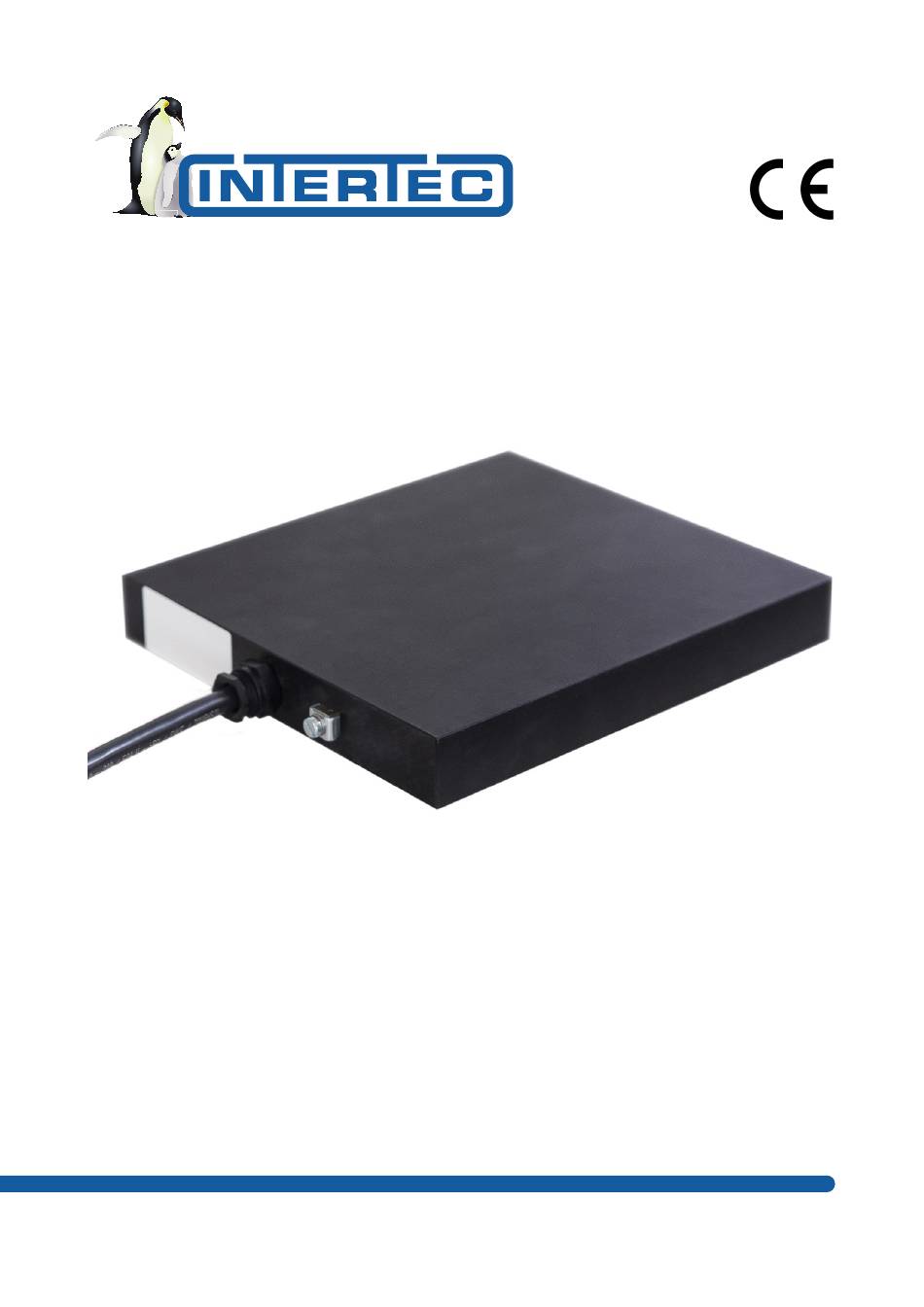

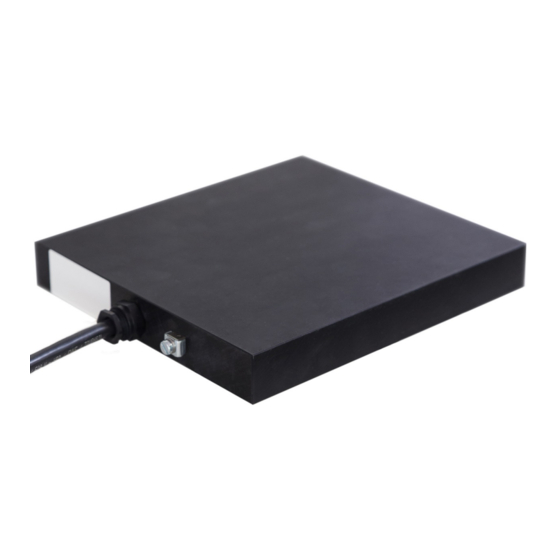

- Page 1 Operating Instructions CP FLATTHERM DNPA HOM177568395Ien-5 • 05/02/2020...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Technical Data ................................ 3 6 Installation................................ 4 7 Connection................................ 5 8 Commissioning............................... 6 9 Maintenance................................ -
Page 3: General
Operating Instructions CP FLATTHERM DNPA General DANGER These operating instructions describe the safe and proper way to work with the device. The safety informa- DANGER tion and instructions given as well as the local accident This sign is warning about an extremely hazardous situ-... -
Page 4: Installation
Thermostat Rated output Rated voltage/Operating voltage Ø 6,8 mm 40 mm Illustration 1: Example: CP FLATTHERM DNPA 200 TS10 la- 40 mm Illustration 2: Dimensions for boreholes If an additional TAE thermostat is switched in series, Installation then it can be attached to the surface of the heater (thermal coupling). -
Page 5: Connection
Operating Instructions CP FLATTHERM DNPA The operating temperatures must be adhered to. WARNING The connection cable must be permanently installed up to the inlet into the on-site junction box, taking the per- The heater is only designed for non hazardous missible bending radius = 5 x outer diameter into consid- areas. -
Page 6: Commissioning
Operating Instructions CP FLATTHERM DNPA Junction box Terminal box Option AM Option: FA Heater Heating bn=brown bl=blue ye/gn=yellow/green bk=black gy=grey br=brown bl=blue ye/gn=yellow/green bk=black gr=grey Illustration 5: CP ..THERM with TAE Illustration 6: CP ..THERM with TS Commissioning If the heater is installed in accordance with the notes in the Installation [}Page ... -
Page 7: 13 Eu Declaration Of Conformity
Operating Instructions CP FLATTHERM DNPA Repairs may only be carried out by the manufacturer in NOTICE the factory. All components have to be kept clean and free of dust Environmental damage may be caused if dis- and harmful substances that could lead to excessive posed of incorrectly! temperature rise. - Page 8 Operating Instructions CP FLATTHERM DNPA Please contact your INTERTEC contact person or dir- ectly contact INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and ser- vices.
