Operating Instructions
CP MEGATHERM DB.A
HOM146691339en-6 • 12/06/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP THERM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Intertec Data Systems CP THERM Series

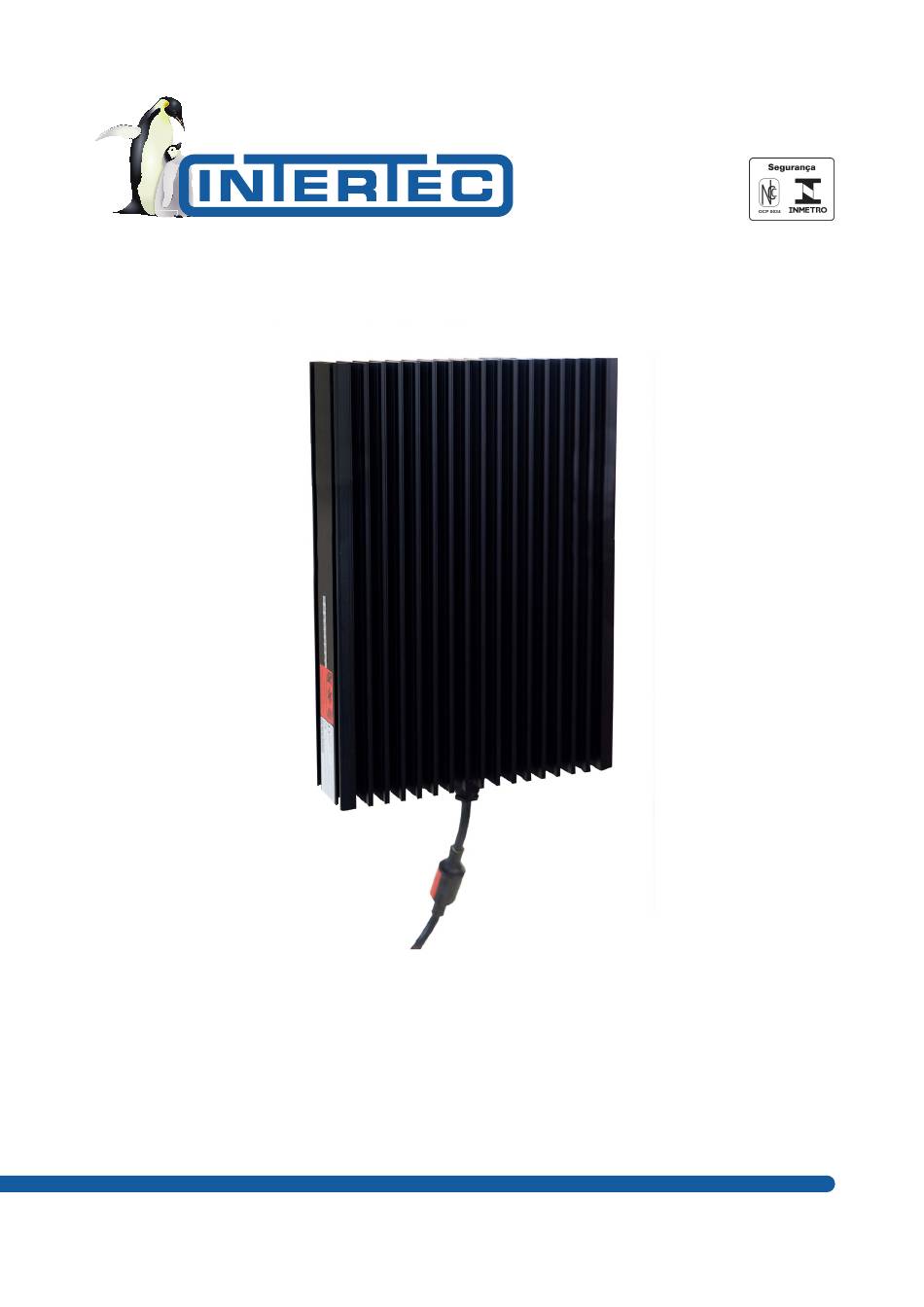

  • Page 1 Operating Instructions CP MEGATHERM DB.A HOM146691339en-6 • 12/06/2024...
  • Page 2: Table Of Contents

    www.intertec.info Table of contents 1 General .................................. 3 2 Use...................................  3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................  4 8 Installation ................................
  • Page 3: General

    www.intertec.info Operating Instructions CP MEGATHERM DB.A General Special conditions for safe use 1. The connecting cable must have a fixed installation These operating instructions describe the safe and and must be protected mechanically. proper way to work with the device. The safety information and instructions given as well as the local 2.
  • Page 4: Safety Information

    www.intertec.info Operating Instructions CP MEGATHERM DB.A WARNING CAUTION WARNING Risk of burns from a hot surface This sign is warning about a hazardous situation which, Attainable highest temperatures: if not heeded, may lead to death or serious irreversible - Max. 160°C with T3 heating systems injury.
  • Page 5: Installation

    www.intertec.info Operating Instructions CP MEGATHERM DB.A Modifications and repairs may only be carried out by the Connecting cable Silicone hose cable, manufacturer. notch- and oil resistant, 3 x 1,5 mm² Ø8,8 mm For free convection, the heater needs to be installed with Connecting cable AM Silicone hose cable, ribs standing vertically.
  • Page 6: Connection

    www.intertec.info Operating Instructions CP MEGATHERM DB.A as short-circuit protection. When using a heater without integrated thermostat, the fuse protection can be selected according to the cross-section of the supply cable. Additional equipotential bonding is required. The terminal block designated for this purpose has the ground sign.
  • Page 7: 10 Commissioning

    www.intertec.info Operating Instructions CP MEGATHERM DB.A Junction box Terminal box Heater Heating bn=brown bl=blue ye/gn=yellow/green br=brown bl=blue ye/gn=yellow/green Illustration 4: CP ..THERM with TAE Illustration 5: CP ..THERM with TS Check heater and all mounting parts for tight fit. Check heater, supply lines, any thermostats and junction boxes for safety-relevant damage.
  • Page 8 www.intertec.info Operating Instructions CP MEGATHERM DB.A If the heater fails, check the installation. Carry out a CAUTION continuity test on the heating circuit. Pay attention to the connection diagram switching point Sufficient heat dissipation must be ensured. thermostat! Unauthorized covers must be removed as otherwise In the case of overheating, the thermal indicator (see there is the risk of the heater overheating.
  • Page 9 www.intertec.info Operating Instructions CP MEGATHERM DB.A If the information contained in this instruction manual NOTICE should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further Environmental damage may be caused if information and service.
