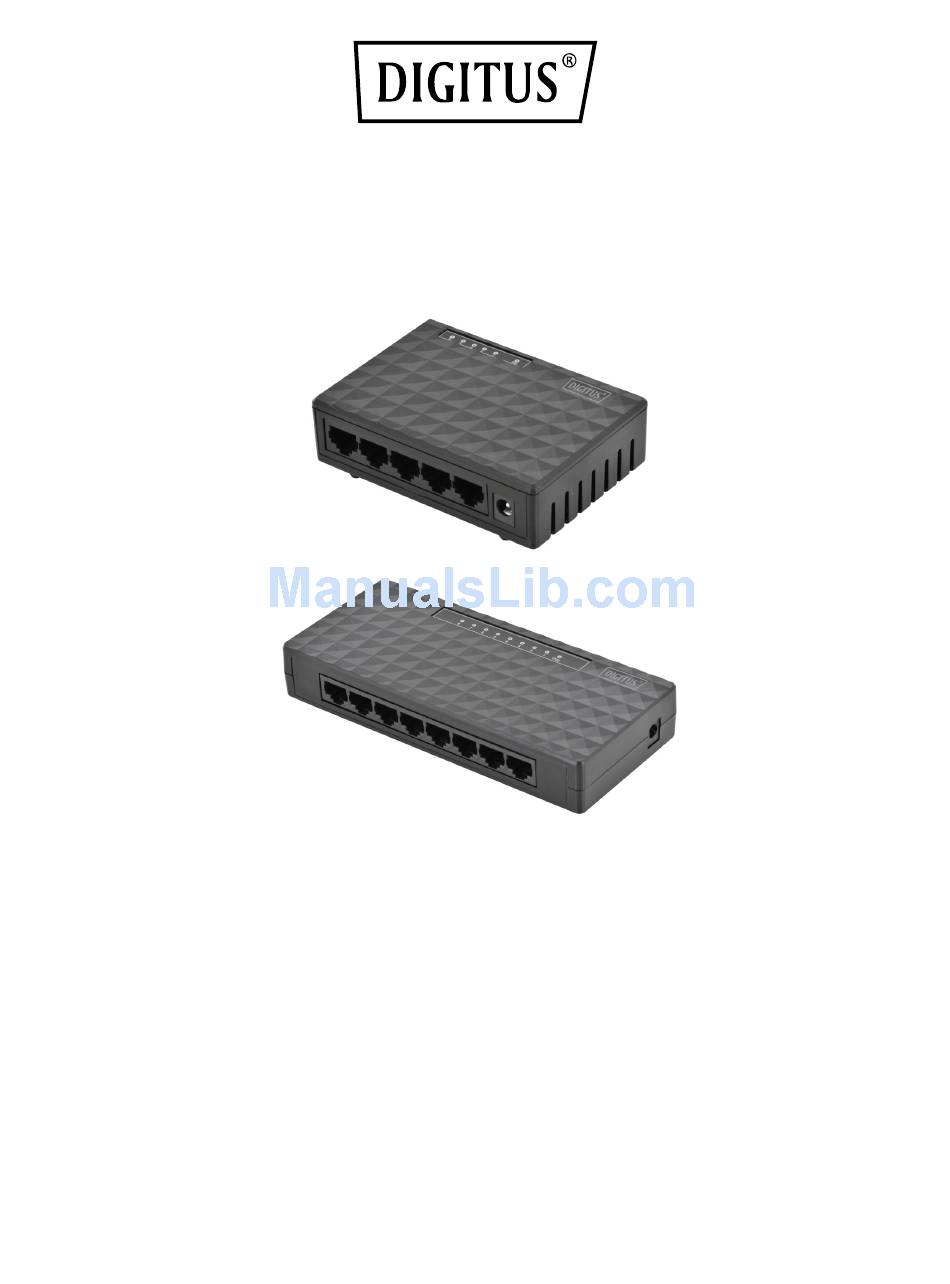

Digitus DN-80063 User Manual

10/100/1000mbps gigabit ethernet network switch

10/100/1000Mbps Gigabit Ethernet

Network Switch

User Manual

DN-80063 • DN-80064

Chapter 1 Introduction:

This item is a 5/8 port 10/100/1000Mbps unmanaged switch, offering 5/8 port 10/100/

1000Mbps auto negotiation port, suitable for medium and small office as well as home

network. Using store-and-forward technology, combined with dynamic memory allocation,

ensures effective port usage. The Network speed is automatically selected based on your

maximum network speed.

Table of Contents

Do you have a question about the DN-80063 and is the answer not in the manual?

Page 1 10/100/1000Mbps Gigabit Ethernet Network Switch User Manual DN-80063 • DN-80064 Chapter 1 Introduction: This item is a 5/8 port 10/100/1000Mbps unmanaged switch, offering 5/8 port 10/100/ 1000Mbps auto negotiation port, suitable for medium and small office as well as home network.
Page 2 color status description Power Supply Light when open the switch If the indicator is not on, pls. check the DC power and connector, and ensure they are connected correctly. LINK/Act Green Indicates the switch is connected at 10/100/1000Mbps Blink Indicates the switch transmits and receives package data at 10/100/1000Mbps Indicates failed to connect...
Page 3 3. Connect other network devices Use a standard Cat5 or Cat6 Ethernet cable with RJ45 connector to connect network  device, such as Printer, Router, PC etc. Attentions:  Avoid direct sunlight, this may lead to damage or shorten its average lifetime ...
