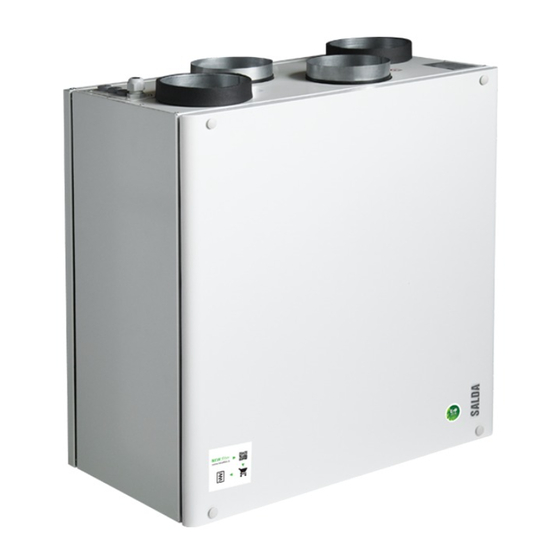

SMARTY RV
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMARTY RV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Salda SMARTY RV

  • Page 1 SMARTY RV MOUNTING AND INSTALLATION INSTRUCTION...
  • Page 2: Table Of Contents

    8.7. CONNECTION OF REMOTE CONTROL PANEL OR MODBUS 8.8. “MCB TOOL” PROGRAM DESCRIPTION 8.9. RECOMMENDED SCHEME FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS 9. POSSIBLE FAULTS AND TROUBLESHOOTING 10. ECODESIGN DATA TABLE 11. DECLARATION OF CONFORMITY 12. WARRANTY 12.1. LIMITED WARRANTY COUPON | EN SMARTY RV v2024.1...
  • Page 3: Symbols And Marking

    ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air. Figure 2.3 Technical label location and air duct indication (left side) Figure 2.4 Technical label location and air duct indication (right side) NOTE. Ducts, cooker hood are not parts of the unit. SMARTY RV v2024.1 EN |...
  • Page 4: Safety Instructions And Precautions

    • If rotary heat exchanger is installed in the device, make sure that it is not stuck or blocked; • Check the earthling; • Make sure that all components and accessories are connected in accordance with the wiring diagram or provided instructions. | EN SMARTY RV v2024.1...
  • Page 5: Information About The Product

    MB-Gateway by PC. Remote control panel and MB-Gateway are optional and not included in a standard package. Not suitable for operation in pools, saunas and other similar premises. 4.2. DIMENSIONS AND WEIGHT Figure 4.2.1 Smarty 2RV L dimensions Figure 4.2.2 Smarty 2RV R dimensions SMARTY RV v2024.1 EN |...
  • Page 6: Technical Data

    MPL 270x86x46 ePM10 55% FMK 270x85x173 ePM10 65% Device protection class IP 34 IP 34 According to EN 13141-7. Acoustic data: check the product page on www.salda.lt Not suitable for installation in living rooms: additional noise insulation required. | EN SMARTY RV v2024.1...
  • Page 7: Operating Conditions

    1 - Rotor heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 4 - Electrical heater; 5 - Control board; 6 - Extract air filters (panel/pocket); 7 - Supply air filter (panel/pocket); 8 - Rotor motor. SMARTY RV v2024.1 EN |...
  • Page 8: Installation

    SMARTY [mm] [mm] [mm] [units] 2 RV 2030 1200 2 RV plus 2030 1200 Figure 5.2.1 Lifting by forklift. To prevent damage to the casing, only a product placed on a pallet should be lifted. | EN SMARTY RV v2024.1...
  • Page 9: Unpacking

    5.4. PIPING AND INSTRUMENTATION DIAGRAM Figure 5.4.1 Smarty RV (* Only heater or preheater can be connected at a time; ** Only one sensor can be used at a time) SMARTY RV v2024.1 EN |...
  • Page 10: Mounting

    5.6. UNIT PLACING AND MOUNTING POSITIONING REQUIREMENTS 1,5xL 1,5xL Figure 5.6.1 Min. distance to open the door - 1,5xL; Min. distance to open the control box door - H > 400 mm. | EN SMARTY RV v2024.1...
  • Page 11: Wall-Mounting Of The Unit

    • When installing air ducts next to the ventilation equipment, brackets must be used. They suppress vibrations and assure secure installation of the various system parts. The necessary brackets can be found in our catalogue or on our website https://select.salda.lt.
  • Page 12: Front Cover (Accessory) Installation

    • The power cable can be replaced only by a qualified technician, after the evaluation of the rated power and current. The manufacturer does not assume any liability for personal injuries and property damage due to non-conformance with the provided instructions. | EN SMARTY RV v2024.1...
  • Page 13: Start-Up Recommendations

    • All electrical equipment protection components are properly connected (if they are additionally used), • Cables and wires correspond to all applicable safety and functional requirements, diameters, etc., • Earthing and protection systems are properly installed, • Condition of all seals and sealing surfaces is proper. SMARTY RV v2024.1 EN |...
  • Page 14: Maintenance

    (contactor), i.e. make sure that its casing has no signs of melt- Switching unit (contactor) ing or is not thermally damaged and does not produce any unusual sounds. All the contactors in the product or in its accessories must be checked. 6.3. COVER OPENING | EN SMARTY RV v2024.1...
  • Page 15: Filters Maintenance

    • Do not plunge the motor in any fluid while cleaning the impeller. Make sure the impeller’s balance weights are in place. • Make sure the impeller is free of any obstacles. • Install the fan back into the unit. Connect fan power and control signals. SMARTY RV v2024.1 EN |...
  • Page 16: Heater Maintenance

    • Open the front doors and pull out control box to the extent the wires allow. Do not pull too hard, to avoid breaking of wires. • Unscrew the bolts on the control box. • Remove the control box cover. | EN SMARTY RV v2024.1...
  • Page 17: Control

    1. Selected control interface (remote control panel, MB-GATEWAY, etc.). The selected interface affects access to the information and settings, however, it does not affect the logic of control. Full access to the information and settings is available on ST-SA-Control, MB-GATEWAY WEB ap- plication and SALDA AIR mobile application. 2. Unit configuration (internal/external components, sensors and control board settings).
  • Page 18: Connection Of Accessories

    (installed in the duct or in the room). Purpose of the connectors contacts: MCB: X7:1 – power supply of the converter +24 V DC X5:7 – analogue input 0–10 V DC X5:8 – general GND | EN SMARTY RV v2024.1...
  • Page 19: Room Co Transmitter Installation Recommendation

    8.5. CONNECTION OF SUPPLY AND EXTRACT AIR DAMPERS Smarty RV can be equipped with outdoor air and extract air dampers. The dampers are controlled by Open/Close actuators. Wiring diagram Upon activation of output X10:3, the dampers open. Upon activation of output X10:4, the dampers close.
  • Page 20: External Switches

    The app ‘MCB tool’ is intended for importing MCB settings of the control board from MCB to your PC storage media and to export the MCB settings from the PC storage media to MCB. Download the app from http://www.salda.lt/en/products/category/download_page/. 1. Choose connection type a.
  • Page 21 Press to read configuration from device Configuration write status Press to write configuration to device 3. Read the configuration from the device and save to your PC (press READ CONFIG FROM BOARD button and enter the configuration file name). SMARTY RV v2024.1 EN |...
  • Page 22: Recommended Scheme For Connection Of Internal And External Components

    0-10V W2\GND W2\0-10V 0-10Vin W2\0-10V Figure 8.9.1 Fans (SP46) DUTIES / NAME SIGNATURE DATE SP46 EI K. Vasiliauskas SALDA 2018-05-28 DRAWN BY SP46 EI D. Aleksandravičius 2018-05-28 CHECKED BY connections principal scheme 2018-05-28 APPROVED BY | EN SMARTY RV v2024.1...
  • Page 23 03-6-3 Power supply 24V / 0,625A 0.75 Green-yellow 0.75 Blue 0.75 Brown Jumper positions Figure 8.9.2 Smarty RV control board (219.0161.0.1.1-PS) DUTIES / NAME SIGNATURE DATE 219.0161.0.1.1-PS-4k UAB"SA EI O. Drąsutis 2019-02-19 DRAWN BY Aut. Smarty 2RVER-MCB.0-5k EI K. Vasiliauskas...
  • Page 24 (NC) X3:4 - +12VDC X4:1 - DI4 X4:2 - +12VDC -External switch X4:3 - DI5 X4:4 - +12VDC -Pressure compensation if overcooked X4:5 - DI6 X4:6 - +12VDC Figure 8.9.3 Smarty RV control board (219.0161.0.1.2-PS) | EN SMARTY RV v2024.1...
  • Page 25 X10:1 - PE 85, 88 Black X10:2 - GND 86, 89 Black X10:3 - +24VDC_OPEN L control 87, 90 Black X10:4 - +24VDC_CLOSE L supply L control L supply Figure 8.9.4 Smarty RV control board (219.0161.0.1.3-PS) SMARTY RV v2024.1 EN |...
  • Page 26 X5:8 - GND 0-10V 24VAC/DC X7:1 - +24VDC X7:2 - +3,3VDC X7:3 - GND X7:4 - I2C_SDA X7:5 - I2C_SCL -DX cooler protection X3:5 - DI3 X3:6 - +12VDC Figure 8.9.5 Smarty RV control board (219.0161.0.1.4-PS) | EN SMARTY RV v2024.1...
  • Page 27 KF2EDGKD-2.5/4P KF2EDGKD-2.5/6P KF2EDGKD-2.5/4P 794821-1 -X51 794941-1 -X33 794941-1 -X32 Figure 8.9.6 Smarty RV wiring (221.0205.0.1.1-PS) SMARTY RV v2024.1 EN |...
  • Page 28 KF2EDGKD-2.5/6P KF2EDGKD-2.5/8P 890-203 Figure 8.9.7 Smarty RV wiring (221.0205.0.1.2-PS) | EN SMARTY RV v2024.1...
  • Page 29 KF2EDGKD-2.5/8P -X11 -X15 KF2EDGKN-3.5/3P KF2EDGKD-2.5/4P Figure 8.9.8 Control box wiring (221.0206.0.1.0-PS) SMARTY RV v2024.1 EN |...
  • Page 30 AT1 - automating overheat protection RT1 - manual overheat protection Figure 8.9.11 Heater (1.680.200.5.0-PS) DUTIES / NAME SIGNATURE 1.680.200.5.0-PS-1k EI O. Drąsutis 2018-0 DRAWN BY EI D. Aleksandravičius 2018-0 CHECKED BY Principle scheme 2018-0 APPROVED BY | EN SMARTY RV v2024.1...
  • Page 31: Possible Faults And Troubleshooting

    Inspect the rotor belt. If it is broken then it should Rotor is not rotating Rotor belt is broken be changed or re-welded. If belt is not broken, check its tightness and ad- Rotor belt failure Rotor belt is slipping just, if necessary. SMARTY RV v2024.1 EN |...
  • Page 32: Ecodesign Data Table

    Control factor 0,65 0,65 Declared maximum internal leakage rates [ % ] Declared maximum external leakage rates [ % ] Visual filter warning Timer Timer ErP Compliance 2018 2018 Internet address for disassembly instructions https://select.salda.lt | EN SMARTY RV v2024.1...
  • Page 33: Declaration Of Conformity

    EN 61000-6-4:2019 - Electromagnetic compatibility (EMC). Part 6-4: Generic standards - Emission standard for industrial environments. Should any alterations be made in the products, this declaration will no longer apply. Quality: SALDA UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...
  • Page 34: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured without the control system and the control system is installed by the client or the third parties.
  • Page 35 SMARTY RV v2024.1...
  • Page 36 Heat-exchanger cleaning Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The customer shall be required to complete the Product Maintenance Table. LINKS TO OTHER DOCUMENTS https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ smartyrvde smartyrvlt smartyrvpl smartyrvru MAN000496 Ragainės g.
