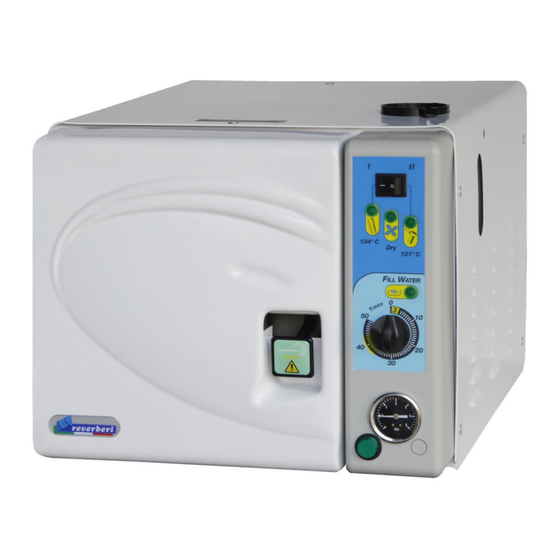

Reverberi MATIKA 20lt Operation And Maintenance Manual

Steam autoclave
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cod.9992
GB
Operation and maintenance manual
STEAM AUTOCLAVE
MODEL
MATIKA 20lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATIKA 20lt and is the answer not in the manual?

Questions and answers

Related Manuals for Reverberi MATIKA 20lt

Summary of Contents for Reverberi MATIKA 20lt

  • Page 1 Cod.9992 Operation and maintenance manual STEAM AUTOCLAVE MODEL MATIKA 20lt...

  • Page 2: Table Of Contents

    Matika 20lt GB Rev01 del 04.03.2019 Reverberi Arnaldo S.r.l. thanks you for having bought one of its products and asks you to read this manual. The manual contains all the information you require in order to use the machine you have purchased.

  • Page 3: Introduction

    Matika 20lt GB Rev01 del 04.03.2019 1. INTRODUCTION The machine described in this operation and maintenance manual is a steam sterilizer that has been specially designed to sterilize of laboratory equipment. The machine can either operate at a temperature of 134°C and a pressure of 2.1 Bar or 121°C and a pressure of 1.1 Bar.

  • Page 4: Technical Specifications

    Matika 20lt GB Rev01 del 04.03.2019 2. TECHNICAL SPECIFICATIONS MATIKA 20lt has been designed and built in compliance with the operators' need for functionality, practical use and safety. MATIKA 20lt has functional characteristics that make it unique, i.e.:  Main switch to power the machine.
  • Page 5 Matika 20lt GB Rev01 del 04.03.2019 Description Unit of Values measurement Power source voltage rating 230 V.a.c. ~ Power source frequency 50/60 Machine power rating 1500 Boiler volume Ø 240 x 440 Operating pressure 2.1 - 1.1 Machine dimensions X, Y, Z...

  • Page 6: General Recommendations

    Matika 20lt GB Rev01 del 04.03.2019 3. GENERAL RECOMMENDATIONS 3.1 Regulations for the operator  Always wear personal protective equipment in compliance with the directives that establish the current accident-preventing provisions.  Do not approach the machine with inflammable materials.

  • Page 7: Location Of The Controls

    Matika 20lt GB Rev01 del 04.03.2019 4. LOCATION OF THE CONTROLS Autoclave mod. MATIKA 20lt features an elegant casing treated with scratch-proof epoxy powder paint in the RAL 7035 COLOUR. No particular preparations are required to operate the machines. Just fit the plug into a 230 V power socket.

  • Page 8: Starting And Setting At Work

    Matika 20lt GB Rev01 del 04.03.2019 5. STARTING AND SETTING AT WORK 5.1 Removing the machine from the packing The machine is consigned packed on a wooden pallet out a cardboard box: make sure that there are no dents and that the wrapping is in optimum conditions.
  • Page 9 Matika 20lt GB Rev01 del 04.03.2019 DRAWING ILLUSTRATING HOW THE MACHINE MUST BE LIFTED FROM THE PACK Unscrew all the screws of the package as shown, then remove the cover first and then the chest. Lift the autoclave as suggested by the images on the reverse.

  • Page 10: Installation And Preliminary Inspections

    Autoclave mod. MATIKA 20lt must be installed in a well lighted place equipped with an electrical system that complies with the current standards in force. Remember that MATIKA 20lt cannot be built into other furniture as it is filled with water from the top.
  • Page 11 Matika 20lt GB Rev01 del 04.03.2019 DESCRIPTION OF THE REAR PART 1) Can. 2) Generator drain. 3) Water drainpipe used for connecting to the can through "1". The same pipe can be used for draining into the sewage system. 4) Label showing the...

  • Page 12: General Instructions For Use

    Matika 20lt GB Rev01 del 04.03.2019 6. GENERAL INSTRUCTIONS FOR USE 6.1 Method of use 1. Open the water tank lid (1). Fill the tank with distilled or demineralized water until reaching the MAX (15). 2. Open the door using handle (13).

  • Page 13: End Of Work

    Matika 20lt GB Rev01 del 04.03.2019 6.2 End of work After the operations have terminated, set the green main switch (10) to position 0, open the door and leave it ajar with handle (13) in the vertical position.. Pay particular attention to the temperature of the various components when you switch off the machine.

  • Page 14: How To Arrange The Instruments For The Sterilizing Process

    Matika 20lt GB Rev01 del 04.03.2019 7.HOW TO ARRANGE THE INSTRUMENTS FOR THE STERILIZING PROCESS 7.1 Standard sterilizing Before being sterilized, the instruments must be cleaned to remove blood residues, incrustations, foreign bodies, etc. These impurities can damage the items being sterilized, the autoclave components and prevent the sterilizing process from being correctly carried out.

  • Page 15: Sterilizing Cycles

    Matika 20lt GB Rev01 del 04.03.2019 8. STERILIZING CYCLES 8.3 Sterilizing table C:\Documenti\Manuali e doc\Settore dentale\Matika 15 / 38...

  • Page 16: Notes And Warnings

    Matika 20lt GB Rev01 del 04.03.2019 * Until he has acquired enough experience in using the autoclave, the operator must check to make sure that the operating pressure does not last less than the minimum effective sterilization minutes indicated in the table.

  • Page 17: Unloading

    Matika 20lt GB Rev01 del 04.03.2019 9. UNLOADING 1. Turn off the main switch (10). 2. Screw the supplied tube on to the red cock (11). 3. Open the cock (10) by turning it in a counter-clockwise direction. 4. Totally empty the tank (1).
  • Page 18 Matika 20lt GB Rev01 del 04.03.2019 Pressure insufficient for the -Faulty bulb thermostat setting - Slightly charge thermostat in set cycle. Indicator lights (6) a clockwise direction And (7) permanently on. - Insufficient water in boiler - Comply with the instructions...

  • Page 19: Maintenance

    Matika 20lt GB Rev01 del 04.03.2019 10. MAINTENANCE  Carry out maintenance with the machine switched off, having unplugged the machine from the mains and waited for the various parts to cool down.  The declaration of conformity to current standards is invalidated if the maintenance jobs indicated hereafter are not carried out.

  • Page 20: Monthly Routine Maintenance

    Matika 20lt GB Rev01 del 04.03.2019 10.4 Monthly routine maintenance Lubricate the pins and locking mechanisms. Check the movement of the hinge and door locking pin. Lubricate with Vaseline oil. Make sure that the door is well regulated. If it is excessively slack, it must be adjusted by means of the supplied wrench.

  • Page 21: Electrical System

    Matika 20lt GB Rev01 del 04.03.2019 ELECTRICAL SYSTEM C:\Documenti\Manuali e doc\Settore dentale\Matika 21 / 38...
  • Page 22 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 22 / 38...

  • Page 23: Hydraulic Plant

    Matika 20lt GB Rev01 del 04.03.2019 HYDRAULIC PLANT C:\Documenti\Manuali e doc\Settore dentale\Matika 23 / 38...
  • Page 24 Matika 20lt GB Rev01 del 04.03.2019 RETURN FORM FOR REVERBERI ARNALDO S.R.L REPAIR OF Via Don Luigi Sturzo n°6 42021 Barco di Bibbiano To be filled by the technician LABORATORY Reggio Emilia – ITALY or an authorized person Tel. 0039 (0) 522 875159...
  • Page 25 Matika 20lt GB Rev01 del 04.03.2019 It is obligatory for the installer to fill out all parts of this form and to declare that he has complied with all the conditions ensuring that the appliance is correctly installed in compliance with sect. 5.1 of the instruction manual.

  • Page 26: Spare Parts

    Matika 20lt GB Rev01 del 04.03.2019 SPARE PARTS Mod. MECCANICA NOTICE: To order spare parts, please let us know the number of series of your autoclaves, to avoid mistakes. C:\Documenti\Manuali e doc\Settore dentale\Matika 26 / 38...
  • Page 27 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 27 / 38...

  • Page 28: Warranty

    Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 28 / 38...
  • Page 29 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 29 / 38...
  • Page 30 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 30 / 38...

  • Page 31: Declaration Of Conformity

    Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 31 / 38...
  • Page 32 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 32 / 38...
  • Page 33 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 33 / 38...
  • Page 34 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 34 / 38...
  • Page 35 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 35 / 38...
  • Page 36 Matika 20lt GB Rev01 del 04.03.2019 C:\Documenti\Manuali e doc\Settore dentale\Matika 36 / 38...

  • Page 37: Warranty

    Matika 20lt GB Rev01 del 04.03.2019 WARRANTY This document certifies that the appliance has been correctly manufactured. Carefully read the instruction manual before forwarding complaints. The appliance will be repaired if it operates in a faulty way during the warranty period owing to manufacturing defects, the manufacturer's judgment over such matters being final.

  • Page 38: Warranty Certificate

    Matika 20lt GB Rev01 del 04.03.2019 WARRANTY CERTIFICATE APPLIANCE: The undersigned reseller certifies that the warranty has been examined and certifies that the appliance has been consigned and installed in compliance with the instructions given by the manufacturer on:…………………………………………………………………………………………….. By Mr. …………………………………………………………………………………….…………………………...
