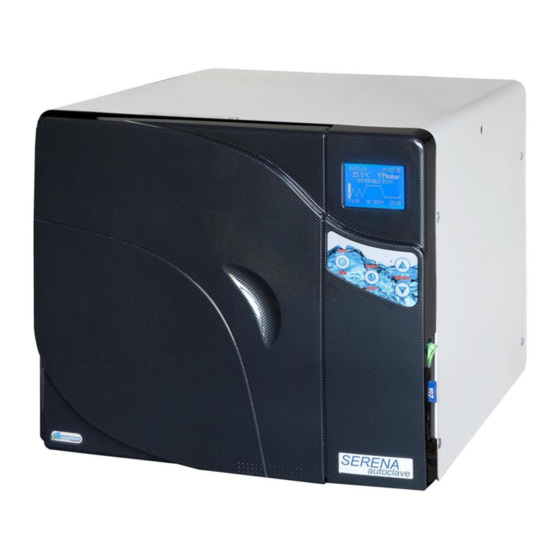

Steam sterilizer
Hide thumbs Also See for SERENA:
Table of Contents

Advertisement

Quick Links

Download this manual
MEDICAL DEVICES SECTOR
MANUAL FOR THE TECHNICIAN
Language: ENGLISH
Cod: 9046
STEAM STERILIZER
SERENA
"THE NEW GENERATION..."

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERENA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reverberi SERENA

Summary of Contents for Reverberi SERENA

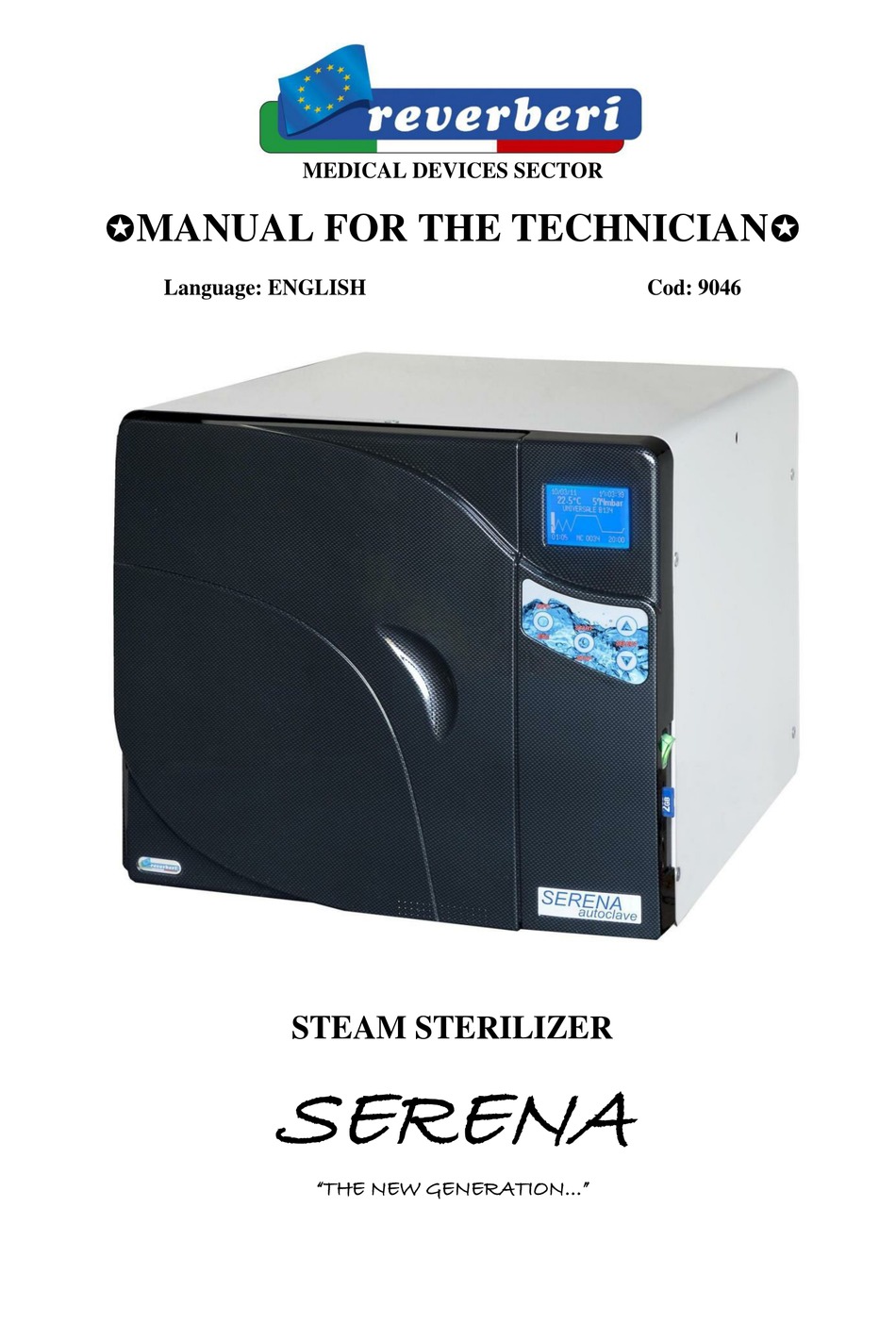

  • Page 1 MEDICAL DEVICES SECTOR   MANUAL FOR THE TECHNICIAN Language: ENGLISH Cod: 9046 STEAM STERILIZER SERENA “THE NEW GENERATION…”...

  • Page 2: Table Of Contents

    1.14 CHECK ACTUATORS ......................... 14 CHECK ACTUATOR: ........................15 FUSES SCHEME ......................... 16 TECHNICAL EQUIPMENT ......................16 CALIBRATION AND ALIGNMENT ....................17 CALIBRATION ..........................19 RESET COUNTERS ........................19 SPARE PARTS ..........................20 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 3: Access To The Menu With Password

    SERIAL NUMBER SW VERSION CALIBRATION INCREASE BAR FILLING We do not recommend change the logo, but only to display it. LOGO E R E O N L Y B C Y C L E 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 4: Serial Number

    We do not recommend change the serial number. SERIAL NUMBER 0 0 0 0 1 1.2 SW VERSION LOGO SERIAL NUMBER SW VERSION CALIBRATION INCREASE BAR FILLING We do not recommend change the SW version. SW VERSION 0.27 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 5: Calibration

    T4 BODY T5 RESISTANCE By using a certified instrument, adjust the calibration so that the data on the display corresponds to the test instrument. 1.3.1 CHAMBER PRESSURE CHAMBER PR. +000 mbar 1000 mbar 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 6: T1 Chamber - Temperature Probe

    To proceed to the alignment of the sensors T1 and T2, see pg dedicated paragraph.. 1.3.3 T2 CHAMBER- TEMPERATURE PROBE PR.CHAMBER T1 CHAMBER T2 CHAMBER T3 VAPORIZER T4 BODY T5 RESISTANCE T2 CHAMBER +0.0°C 020.1°C 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 7: T3 Vaporizer

    T1 CHAMBER T2 CHAMBER T3 VAPORIZER T4 BODY T5 RESISTANCE T3 VAPORIZER +0.0°c +020.1°C 1.3.5 T4 BODY CHAMBER PR. T1 CHAMBER T2 CHAMBER T3 VAPORIZER T4 BODY T5 RESISTANCE T4 BODY +0.0°C 020.7°C 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 8: T5 Resistance

    T1 CHAMBER T2 CHAMBER T3 VAPORIZER T4 BODY T5 RESISTANCE T5 RESISTANCE +0.0°C 020.8°C 1.3.7 T6 RADIATOR T1 CHAMBER T2 CHAMBER T3 VAPORIZER T4 BODY T5 RESISTANCE T6 RADIATOR T6 RADIATOR +0.0°C 020.9°C 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 9: Conductivity Meter

    Values are expressed in µS. CONDUCTIVITY METER 000 000 micro 1.4 INCREASE BAR LOGO SERIAL NUMBER SW VERSION CALIBRATION INCREASE BAR REFILLING It detects the pressure (P) during vacuum phases. INCREASE BAR 1050 mbar 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 10: Timed Refilling

    VACUUM MAX It is the max depression that the sterilizer must achieve in the vacuum phases. It is also the point of alarm in case the vacuum does not occur. VACUUM MAX 0400 mbar 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 11: Vacuum Dry

    VACUUM MAX VACUUM DRY VAPORIZER TEMPERATURE The following screen will appear: The values indicate the range in which occurs the injection of water that becomes steam. VAPORIZER TEMPERATURE MIN 150 °C MAX 160 °C 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 12: Iron Temperature Chamber 121

    VAPORIZER TEMPERATURE IRON TEMPERATUE CHAMBER 134° IRON TEMPERATURE CHAMBER 134° MIN 135 °C MAX 140 °C The values indicate the range in which the resistance tries to maintain the temperature of the metal 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 13: Iron Temperature Drying Phase

    IRON TEMPERATURE CHAMBER 134° IRON TEMPERATURE DRYING PHASE EXTERNAL RESISTANCE TEMEPRATURE EXTERNALE RESISTANCE TEMPERATURE MIN 160 °C MAX 165 °C The values indicate the range within which the resistance band is still active. 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 14: Radiator Temperature

    The values indicate the range of the temperature of the drain water 1.14 CHECK ACTUATORS IRON TEMPERATURE DRYING PHASE EXTERNAL RESISTANCE TEMPERATURE RADIATOR TEMPERATURE CHECK ACTUATORS CHECK ……… PRESS START to verify the actuators 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 15: Check Actuator

    The correct positioning of the fuses is marked by a small noise of joints. Small vibrations of the writings on the display indicate that there are anomalies in some component. Water consumption: 1 lt every 2200 cycles -> 0,45 cc for 1 cycle 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 16: Fuses Scheme

    TESTER TO CHECK THE SHORT CIRCUITS AND RESISTANCES  ALWAYS KEEP AN ORIGINAL PACKING AVAILABLE FOR EVENTUAL SHIPMENT OF THE STERILIZER Note: All instruments must have the calibration certificate not expired! INSTRUMENT FOR MEASURING THE QUALITY 'OF WATER 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 17: Calibration And Alignment

    Press INFO button to visualize the technician data with the door closed T1 chamber probe temperature T2 chamber probe temperature Tv vaporizer probe temperature Tm chamber metal temperature Tr chamber resistance temperature Tc condenser temperature Pr chamber mb pressure Vo water quantity volume 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 18 The data shown in the first line (eg +1.1 ° C) corresponds to the delta T of Calibration. The data shown in the second row (eg 082.5 ° C) corresponds to the temperature detected at that time. 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 19: Calibration

    Once proceeded with the replacement of spare parts, it is important to reset the counter to zero by performing the following operation -> MAINTENANCE: - Position on the counter - Simultaneously press the down and up arrow for a few seconds until it resets 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...

  • Page 20: Spare Parts

    SERENA Tecnico GB R-06 del 10.05.2019 8 SPARE PARTS ELECTRONIC POWER BOARD ASSEMBLY Nr. Cod. Description Q.ty 5279 BATTERY CR2032 3Vdc 5380 F1 F2 FUSE T3,15°5X20 5379 F3 FUSE T500mA5x20 5023 ELECTR. POWER BOARD 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 21 SERENA Tecnico GB R-06 del 10.05.2019 18/23lt. FRONTAL Cod. Description Q.ty 1067 BACTERIOLOGICAL FILTER 5335 F JUNCTION BLACK 5334 F JUNCTION WITE 5221 DOOR COVER 5222 INSIDE COVER 5888 FILTER 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 22 SERENA Tecnico GB R-06 del 10.05.2019 18/23lt. REAR Nr. Cod. Description Q.ty 5158 DOOR MICROSWITCH 5025 INOX CHAMBER 18lt. 5026 INOX CHAMBER 23lt. 5804 T1-T2 PT1000 PROBE 5055 SAFETY VALVE 2,5bar 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 23 SERENA Tecnico GB R-06 del 10.05.2019 18/23lt. EXTERNAL OF THE CHAMBER Nr. Cod. Description Q.ty 5093 HEATER THERMOSTAT 5889 HEATER 5235 HEATING PROBE PT1000 5224 COVER CHAMBER 18lt. 5225 COVER CHAMBER 23lt. 5815 PT1000 PROBE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 24 SERENA Tecnico GB R-06 del 10.05.2019 18/23lt. MOTOR UNIT Nr. Cod. Description Q.ty 5027 MICROSWITCH UNIT 5028 ELECTRIC MOTOR UNIT 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 25 SERENA Tecnico GB R-06 del 10.05.2019 DOOR Nr. Cod. Description Q.ty 5029 CAST DOOR 5031 INOX SHELL DOOR 5030 SILICON GASKET 5040 LARGEST STUD 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 26 SERENA Tecnico GB R-06 del 10.05.2019 SD CARD AND PRINT CABLE Nr. Cod. Description Q.ty 0538 GREEN SWITCH 5212 SD CARD BOARD 5165 SD CARD WIRING 5212 SD CARD 2GB 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 27 SERENA Tecnico GB R-06 del 10.05.2019 TRASNDUCER Cod. Description Q.ty 5186 TRANSDUCER SUPPORT 5144 TRANSDUCER CABLE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 28 SERENA Tecnico GB R-06 del 10.05.2019 USED WATER TANK Cod. Description Q.ty 5148 PLASTIC TANK 5928 LEVEL FLOAT PROBE 3687 TANK COVER 0302 SPRING BLOCK 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 29 SERENA Tecnico GB R-06 del 10.05.2019 FILL WATER TANK Nr. Cod. Description Q.ty 5147 PLASTIC TANK 3907 LEVEL FLOAT PROBE 3687 TANK COVER 0302 SPRING BLOCK 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 30 SERENA Tecnico GB R-06 del 10.05.2019 WATER DRAIN HOSE FILL WATER HOSE EMERGENCY FILL WATER HOSE Cod. Description Q.ty 5364 EMERGENCY FILL WATER HOSE 5245 FILL WATER HOSE 5244 WATER DRAIN HOSE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 31 SERENA Tecnico GB R-06 del 10.05.2019 DISPLAY Cod. Description Q.ty 5201 DISPLAY 5223 FRONT COVER 5206 DISPLAY WIRING 5308 DISPLAY PROTECTION 5495 KEYBOARD 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 32 4297 N.C. SOLENOID VALVE 1/8” 4926 VIBRATION PUMP 4927 PUMP SUPPORT 3998 VOLUMETRIC COUNTER 5367 FELT FIBERGLASS 1484 FILTER 1/4” 1896 SHORT SPRING 5666/F HEATING HELEMENT 5667 STEAM GENERATOR FRAME 5815 PT1000 PROBE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 33 SERENA Tecnico GB R-06 del 10.05.2019 COIL 18lt. Cod. Description Q.ty 4360 RADIATOR 4361 FAN 18LT 5815 PT1000 PROBE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 34 SERENA Tecnico GB R-06 del 10.05.2019 COIL 23lt. Cod. Description Q.ty 4360 RADIATOR 5741 FAN 23LT. 5815 PT1000 PROBE 5742 FAN COVER GRID 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 35 SERENA Tecnico GB R-06 del 10.05.2019 SOLENOIDS VALVES Nr. Cod. Description Q.ty 3028 N.C. SOLENOID VALVE 1/8” 3246 3 WAY SOLENOID VALVE 2948 ONE WAY VALVE 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 36 SERENA Tecnico GB R-06 del 10.05.2019 FILL WATER PUMP ASSEMBLY Nr. Cod. Description Q.ty 5057 T CONNECTION 1484 WATER FILTER 0715 VIBRO-PUMP 3677 RUBBER ANTI-VIBRATION 5483 WATER CONDUCTIVITY 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 37 SERENA Tecnico GB R-06 del 10.05.2019 Nr. Cod. Description Q.ty 6543 FUSE 6x32T 12A 0878 EARTH TERMINAL 0567 PG9 NUT 0129 ELECTRIC CABLE WITH PLUG 3234 FUSE TERMINAL 0562 FIX CABLE PG9 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 38 SERENA Tecnico GB R-06 del 10.05.2019 VACUUM PUMP COD. 5237 Cod. Description Q.ty 5237 VACUUM PUMP 3136 WATER FILTER GROUP 5057 T CONNECTION M 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 39 SERENA Tecnico GB R-06 del 10.05.2019 VACUUM PUMP COD.5104 Cod. Description Q.ty 5104 VACUUM PUMP 5057 T CONNECTION M 3136 WATER FILTER GROUP 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 40 SERENA Tecnico GB R-06 del 10.05.2019 EXPLODED VACUUM PUMP COD. 5104 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
  • Page 41 SERENA Tecnico GB R-06 del 10.05.2019 EXPLODED VACUUM PUMP COD. 6312 00/ Per Bertani/ Manuale Tecnico Serena/ Serena...
