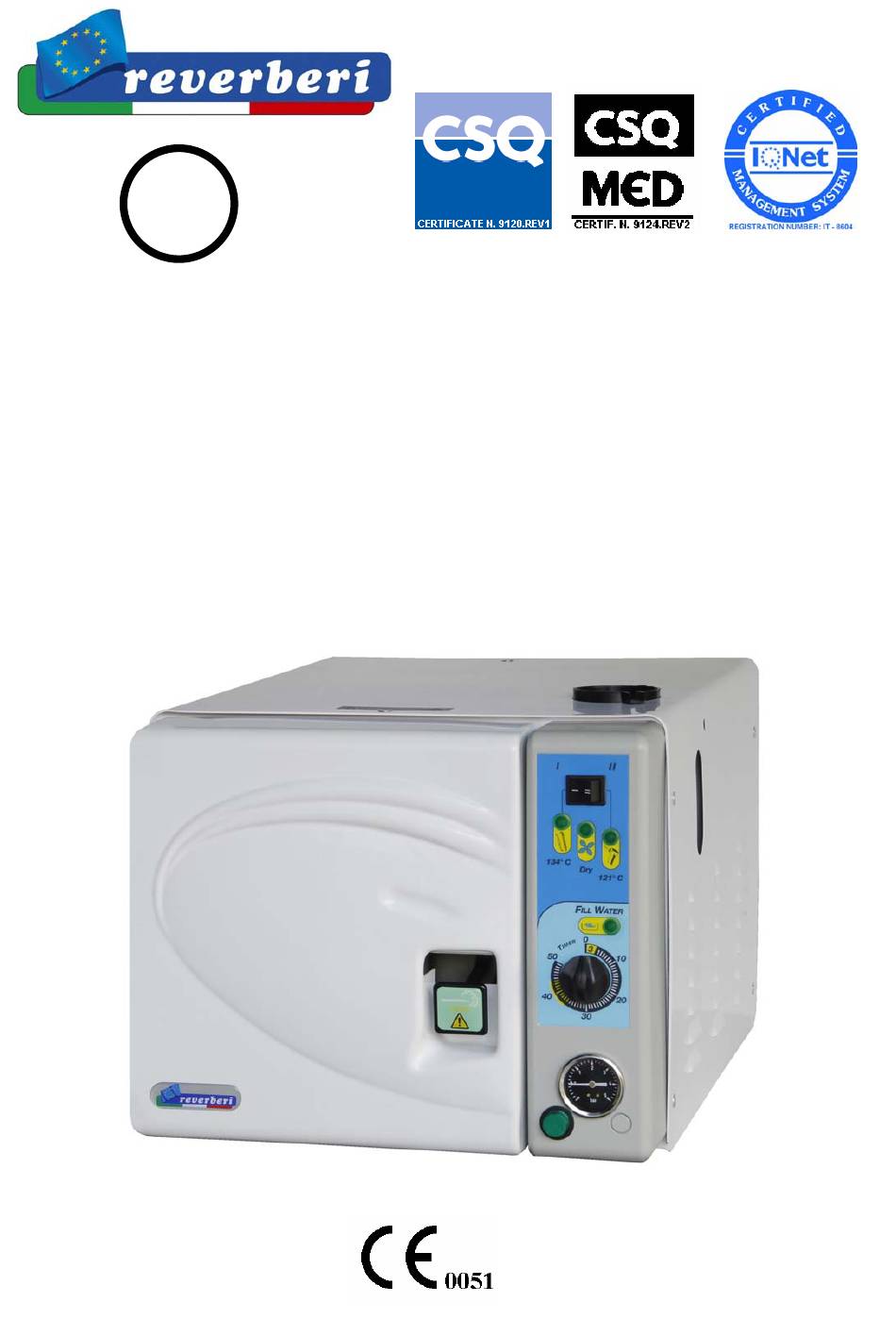

- Page 1 COMPANY WITH CERTIFIED QUALITY SYSTEM UNI EN ISO 9001 & EN 13485 MEDICAL APPLIANCE DIVISION Cod.3161 Operation and maintenance manual STEAM AUTOCLAVE MODEL MATIKA...
- Page 2 Operation and Maintenance Manual – Steam sterilizer mod. Matika Reverberi s.r.l. thanks you for having bought one of its products and asks you to read this manual. The manual contains all the information you require in order to use the machine you have purchased.
-
Page 3: Table Of Contents
Operation and Maintenance Manual – Steam sterilizer mod. Matika Table of contents: 1. INTRODUCTION ..................................4 2. TECHNICAL SPECIFICATIONS............................5 3. GENERAL RECOMMENDATIONS ............................7 3.1 Regulations for the operator ..............................7 4. LOCATION OF THE CONTROLS............................8 5. STARTING AND SETTING AT WORK ..........................10 5.2 Installation and preliminary inspections..........................12... -
Page 4: Introduction
Operation and Maintenance Manual – Steam sterilizer mod. Matika 1. INTRODUCTION The machine described in this operation and maintenance manual is a steam sterilizer that has been specially designed to sterilize most of the materials and instruments used in dental surgeries, doctors' surgeries and hospitals in general. -
Page 5: Technical Specifications
Operation and Maintenance Manual – Steam sterilizer mod. Matika 2. TECHNICAL SPECIFICATIONS MATIKA has been designed and built in compliance with the operators' need for functionality, practical use and safety. MATIKA has functional characteristics that make it unique, i.e.: Main switch to power the machine. - Page 6 Operation and Maintenance Manual – Steam sterilizer mod. Matika Description Unit of Values measurement Power source voltage rating 230 V.a.c. ~ Power source frequency 50/60 Machine power rating 1500 Boiler volume Ø 240 x 340 Operating pressure 2.1 - 1.1...
-
Page 7: General Recommendations
Operation and Maintenance Manual – Steam sterilizer mod. Matika 3. GENERAL RECOMMENDATIONS 3.1 Regulations for the operator Always wear personal protective equipment in compliance with the directives that establish the current accident-preventing provisions. Do not approach the machine with inflammable materials. -
Page 8: Location Of The Controls
Operation and Maintenance Manual – Steam sterilizer mod. Matika 4. LOCATION OF THE CONTROLS Autoclave mod. MATIKA features an elegant casing treated with scratch-proof epoxy powder paint in the RAL 7035 COLOUR. No particular preparations are required to operate the machines. Just fit the plug into a 230 V power socket. - Page 9 Operation and Maintenance Manual – Steam sterilizer mod. Matika Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 9 of 31...
-
Page 10: Starting And Setting At Work
Operation and Maintenance Manual – Steam sterilizer mod. Matika 5. STARTING AND SETTING AT WORK 5.1 Removing the machine from the packing The machine is consigned packed on a wooden pallet out a cardboard box: make sure that there are no dents and that the wrapping is in optimum conditions. - Page 11 Operation and Maintenance Manual – Steam sterilizer mod. Matika DRAWING ILLUSTRATING HOW THE MACHINE MUST BE LIFTED FROM THE PACK Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 11 of 31...
-
Page 12: Installation And Preliminary Inspections
Remember that MATIKA cannot be built into other furniture as it is filled with water from the top. Fit the electric plug into a socket WITH A CAPACITY OF AT LEAST 16 Ampere AND EQUIPPED WITH AN EARTH CONNECTION. - Page 13 Operation and Maintenance Manual – Steam sterilizer mod. Matika DESCRIPTION OF THE REAR PART 1) Can. 2) Generator drain. 3) Water drainpipe used for connecting to the can through "1". The same pipe can be used for draining into the sewage system.
-
Page 14: General Instructions For Use
Operation and Maintenance Manual – Steam sterilizer mod. Matika 6. GENERAL INSTRUCTIONS FOR USE 6.1 Method of use a) Open the water tank lid (1). Fill the tank with distilled or demineralized water until reaching the MAX (15). b) Open the door using handle (13). -
Page 15: End Of Work
Operation and Maintenance Manual – Steam sterilizer mod. Matika 6.2 End of work After the operations have terminated, set the green main switch (10) to position 0, open the door and leave it ajar with handle (13) in the vertical position.. -
Page 16: How To Arrange The Instruments For The Sterilizing Process
Operation and Maintenance Manual – Steam sterilizer mod. Matika 7.HOW TO ARRANGE THE INSTRUMENTS FOR THE STERILIZING PROCESS 7.1 Standard sterilizing Before being sterilized, the instruments must be cleaned to remove blood residues, incrustations, foreign bodies, etc. These impurities can damage the items being sterilized, the autoclave components and prevent the sterilizing process from being correctly carried out. -
Page 17: Sterilizing Cycles
Operation and Maintenance Manual – Steam sterilizer mod. Matika 8. STERILIZING CYCLES 8.3 Sterilizing table Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 17 of 31... -
Page 18: Notes And Warnings
Operation and Maintenance Manual – Steam sterilizer mod. Matika * Until he has acquired enough experience in using the autoclave, the operator must check to make sure that the operating pressure does not last less than the minimum effective sterilization minutes indicated in the table. -
Page 19: Unloading
Operation and Maintenance Manual – Steam sterilizer mod. Matika 9. UNLOADING 1. Turn off the main switch (10). 2. Screw the supplied tube on to the red cock (11). 3. Open the cock (10) by turning it in a counter-clockwise direction. -
Page 20: Troubleshooting: Solutions / Remedies
Operation and Maintenance Manual – Steam sterilizer mod. Matika 9.1 Troubleshooting: Solutions / Remedies FAULTS CAUSES REMEDIES - Main switch (1) faulty. - Change the switch. - Switch (3) faulty. - Replace or check the switch. The chamber fails to fill with... -
Page 21: Maintenance
Operation and Maintenance Manual – Steam sterilizer mod. Matika 10. MAINTENANCE Carry out the maintenance operations with the machine at a standstill, after having removed the plug from the power socket and after having allowed the components to cool down. -
Page 22: Monthly Routine Maintenance
Operation and Maintenance Manual – Steam sterilizer mod. Matika 10.4 Monthly routine maintenance Lubricate the pins and locking mechanisms. Check the movement of the hinge and door locking pin. Lubricate with Vaseline oil. Make sure that the door is well regulated. If it is excessively slack, it must be adjusted by means of the supplied wrench. -
Page 23: Electrical System
Operation and Maintenance Manual – Steam sterilizer mod. Matika ELECTRICAL SYSTEM : Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 23 of 31... - Page 24 Operation and Maintenance Manual – Steam sterilizer mod. Matika Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 24 of 31...
-
Page 25: Hydraulic Plant
Operation and Maintenance Manual – Steam sterilizer mod. Matika HYDRAULIC PLANT : Rev. 05 of 01-12-2006 - C:\Documenti\Manuali di istruzione\Matika GB-R05.doc Page 25 of 31... -
Page 26: Form To Fill Out When Appliances Are Returned For Repairs
Operation and Maintenance Manual – Steam sterilizer mod. Matika FORM TO FILL OUT WHEN To be filled out by the: APPLIANCES ARE Via Don Luigi Sturzo n°6 42021 BARCO ( Reggio Emilia ) ITALY Installer or authorized person RETURNED FOR REPAIRS Tel. - Page 27 Operation and Maintenance Manual – Steam sterilizer mod. Matika It is obligatory for the installer to fill out all parts of this form and to declare that he has complied with all the conditions ensuring that the appliance is correctly installed in compliance with sect. 5.1 of the instruction manual.
-
Page 28: Warranty
Operation and Maintenance Manual – Steam sterilizer mod. Matika WARRANTY This document certifies that the appliance has been correctly manufactured. Carefully read the instruction manual before forwarding complaints. The appliance will be repaired if it operates in a faulty way during the warranty period owing to manufacturing defects, the manufacturer's judgement over such matters being final. - Page 29 Operation and Maintenance Manual – Steam sterilizer mod. Matika WARRANTY CERTIFICATE and stamped APPLIANCE: The undersigned reseller certifies that the warranty has been examined and certifies that the appliance has been consigned and installed in compliance with the instructions given by the manufacturer on:……………………………………………………………………………………………..
- Page 30 93/42/EEC GOVERNING MEDICAL DEVICES IMPLEMENTED BY ITALY WITH LAW DECREE D.L. N° 46 OF 24.02.1997, REVERBERI S.R.L. IS OBLIGED TO BE ABLE TO TRACE ITS PRODUCTS THROUGH TO THE END USER (PHYSICIANS, DENTAL STUDIOS, MEDICAL LABORATORIES). THUS, THE PERSON IN CHARGE OF THE WAREHOUSE AND/OR THE DEALER SHALL OBLIGATORILY KEEP THE TRANSPORT DOCUMENTS BEARING THE SERIAL NUMBERS OF THE AUTOCLAVES IN THEIR FILES FOR AT LEAST 10 (TEN) YEARS.
-
Page 31: Declaration Of Conformity
M9010/23 MATIKA La Reverberi s.r.l. dichiara sotto la propria responsabilità che i prodotti elencati sono conformi alle norme: La maison Reverberi s.r.l. déclare sous sa responsabilité que les produit enumeres sont conformes aux directives: The company Reverberi s.r.l. declare under own exclusive responsability that the product listed are in conformity with the normatives: Reverberi s.r.l.
