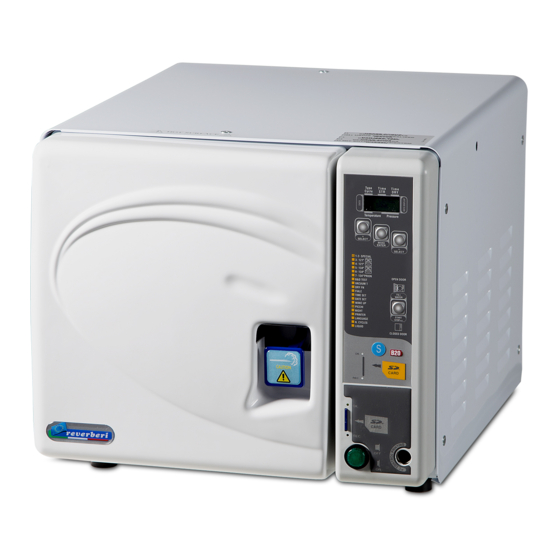

  • Page 1 COMPANY WITH CERTIFIED QUALITY SYSTEM UNI EN ISO 9001 & EN 13485 MEDICAL APPLIANCE DIVISION Cod. 3915 Operation and maintenance manual STEAM STERILIZERS MODELS PRATIKA S16 PRATIKA B16-20...

  • Page 2: Table Of Contents

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA Table of contents: 1. INTRODUCTION ..................................3 2. T E C H N I C A L S P E C I F I C A T I O N S .......................4 3.

  • Page 3: Introduction

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 1. INTRODUCTION The machine described in this operation and maintenance manual is a steam sterilizer that has been specially designed to sterilize most of the materials and instruments used in dental surgeries, doctors' surgeries and hospitals in general.

  • Page 4: T E C H N I C A L S P E C I F I C A T I O N S

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 2. T E C H N I C A L S P E C I F I C A T I O N S PRATIKA are autoclaves designed and built in compliance with the operators' need for functionality, practical use and safety.
  • Page 5 Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA Description Unit of measurement Values Power source voltage rating 230 V.a.c. ~ Power source frequency Machine power rating 2300 Boiler volume Ø 240 x 340 Ø 240 x 440 (B20) Operating pressure 2.1 - 1.1 Machine dimensions X, Y, Z Prof.

  • Page 6: G E N E R A L R E C O M M E N D A T I O N S

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 3. G E N E R A L R E C O M M E N D A T I O N S 3.1 Regulations for the operator Always wear personal protective equipment in compliance with the directives that establish the current accident-preventing provisions.

  • Page 7: L O C A T I O N O F T H E C O N T R O L S

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 4. L O C A T I O N O F T H E C O N T R O L S PRATIKA feature an elegant casing treated with scratch-proof epoxy powder paint in the RAL 9010 COLOUR.

  • Page 8: S T A R T I N G A N D S E T T I N G A T W O R K

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 5. S T A R T I N G A N D S E T T I N G A T W O R K 5.1 Removing the machine from the packing The machine is consigned packed on a wooden pallet in a cardboard box: make sure that there are no dents and that the wrapping is in optimum conditions.

  • Page 9: Installation And Preliminary Inspections

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA DRAWING ILLUSTRATING HOW THE MACHINE MUST BE LIFTED FROM THE PACK 5.2 Installation and preliminary inspections The installer is obliged to make sure that the place in which the sterilizer is installed is fit for that purpose (CEI 62/4).

  • Page 10: Using The Sd Card

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA Never connect the plug of the machine to a reduction. Use a bubble level to make sure that the surface on which the appliance is to be positioned is perfectly horizontal. Fill out and send off the warranty form.
  • Page 11 Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA DESCRIPTION OF THE REAR PART 1) Can. 2) Generator drain. 3) Water drainpipe used for connecting to the can through "1". The same pipe can be used for draining into the sewage system.
  • Page 12 Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA READ OF INFO DISPLAY: 3= Cycle number 15= Sterilization time 5= Dry time 121= Temperature of sterilization °C 4= Cycle number 20= Sterilization time 15= Dry time 121= Temperature of sterilization °C 5= Cycle number 4= Sterilization time 5= Dry time 134= Temperature of sterilization °C 6= Cycle number 10= Sterilization time 15= Dry time...

  • Page 13: G E N E R A L I N S T R U C T I O N S F O R U S E

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 6. G E N E R A L I N S T R U C T I O N S F O R U S E 6.1 Directions for use OPEN DOOR WITH SWITCH (9) TURNED. Remove the tray holder pack from the chamber.

  • Page 14: How To Drain The Water From The Tanks

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 6.2 How to drain the water from the tanks Chek the tank level (used water) bifore each cycle. In case the level is nearly full, please beh ave as follows: Unscrew the plug of the tank. Empty the tank in drainage and rinse with care.

  • Page 15: Sterilizing Table

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA Sterilizing handpieces: Carefully read the handpiece operation manual with particular attention to the part about sterilizing (121°). Wrap the handpiece in the special sterilizing cloth. Place the wrapped handpiece on a NON-perforated tray to prevent spilt lubricating oil from polluting the pipes of the autoclave.

  • Page 16: Monthly Inspection Proposal

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 5- It is advisable to purchase a printer with date stamp code M 9003 to file and record the sterilizing cycles and any faults that may have occurred. 6 - There must always be trays and tray-holders in the chamber. Without these accessories, abnormal pressures and temperatures could develop inside and these could cause the cycle to abort.

  • Page 17: Messages Displayed

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 8. MESSAGES DISPLAYED 8.1 Alarm management MESSAGE ERROR TYPE REMEDY FAILED Cycle not terminated Check presence of any leaks in the hydraulic circuit, in the door seal (adjustment), solenoid valve N.O. NO POWER No mains power Fit the machine plug in a single socket that complies with standards and is without adapters or extensions.

  • Page 18: General Maintenance

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 9 . M A I N T E N A N C E Carry out the maintenance operations with the machine at a standstill, after having removed the plug from the power socket and after having allowed the components to cool down.

  • Page 19: Monthly Routine Maintenance

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 9.4 Monthly routine maintenance (ALSO OPERATOR) Lubricate the pins and locking mechanisms. Check the movement of the hinge and door locking pin. Lubricate with Vaseline oil. Make sure that the door is well regulated. If it is excessively slack, it must be adjusted by means of the supplied wrench.

  • Page 20: Recommended Inspections And Replacements (After About 1000 Cycles)

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA 9.6 Recommended inspections and replacements (after about 1000 cycles) (ONLY FOR TECHNICIANS) 1) Make sure that the safety valve functions correctly. - Remove the protective casing - Carry out the 134° cycle and when the maximum pressure has been reached (2.2 bar), unscrew and retighten the knurled ring nut on the safety valve.

  • Page 21: Electrical System Pratika

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA ELECTRICAL SYSTEM PRATIKA: Rev. 01 del 03-01-2007 - C:\Documenti\Manuali di istruzione\PRATIKA GB-R01.doc Pag. 21 di 27...

  • Page 22: Hydraulic Circuit Pratika

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA HYDRAULIC CIRCUIT PRATIKA: Rev. 01 del 03-01-2007 - C:\Documenti\Manuali di istruzione\PRATIKA GB-R01.doc Pag. 22 di 27...

  • Page 23: Form To Fill Out When Appliances Are Returned For Repairs

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA FORM TO FILL OUT WHEN To be filled out by the: APPLIANCES ARE RETURNED Via Don Luigi Sturzo n°6 42021 BARCO ( Reggio Emilia ) ITALY FOR REPAIRS Installer or authorized person Tel.
  • Page 24 Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA It is obligatory for the installer to fill out all parts of this form and to declare that he has complied with all the conditions ensuring that the appliance is correctly installed in compliance with sect. 5.2 of the instruction manual.
  • Page 25 Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA W A R R A N T Y C E R T I F I C A T E This document certifies that the appliance has been correctly manufactured. The appliance will be repaired if it operates in a faulty way during the warranty period owing to manufacturing defects, the manufacturer's judgement over such matters being final.

  • Page 26: Waranty Certificate

    Operation and Maintenance Manual – Steam sterilizers mod. PRATIKA WARRANTY CERTIFICATE APPLIANCE: The undersigned reseller certifies that the warranty has been examined and certifies that the appliance has been consigned and installed in compliance with the instructions given by the manufacturer on:…………………………………………………………………………………………….. By Mr.

  • Page 27: Declaration Of Conformity

    M9010/41 PRATIKA B20 La Reverberi s.r.l. dichiara sotto la propria responsabilità che i prodotti elencati sono conformi alle norme: La maison Reverberi s.r.l. déclare sous sa responsabilité que les produit enumeres sont conformes aux directives: The company Reverberi s.r.l. declare under own exclusive responsability that the product listed are in conformity with the normatives: Reverberi s.r.l.
