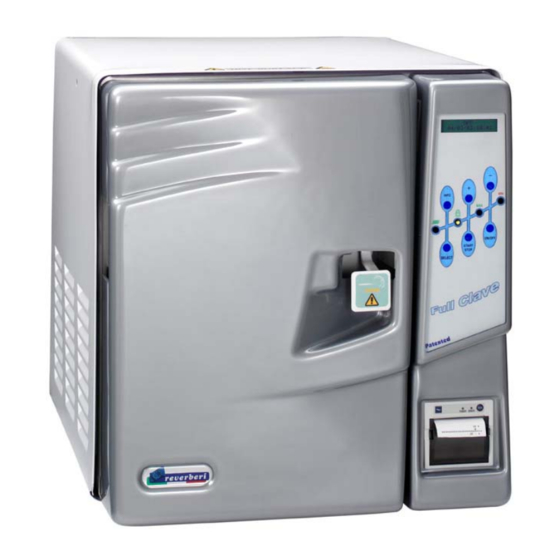

Summary of Contents for Reverberi Full Clave B 20

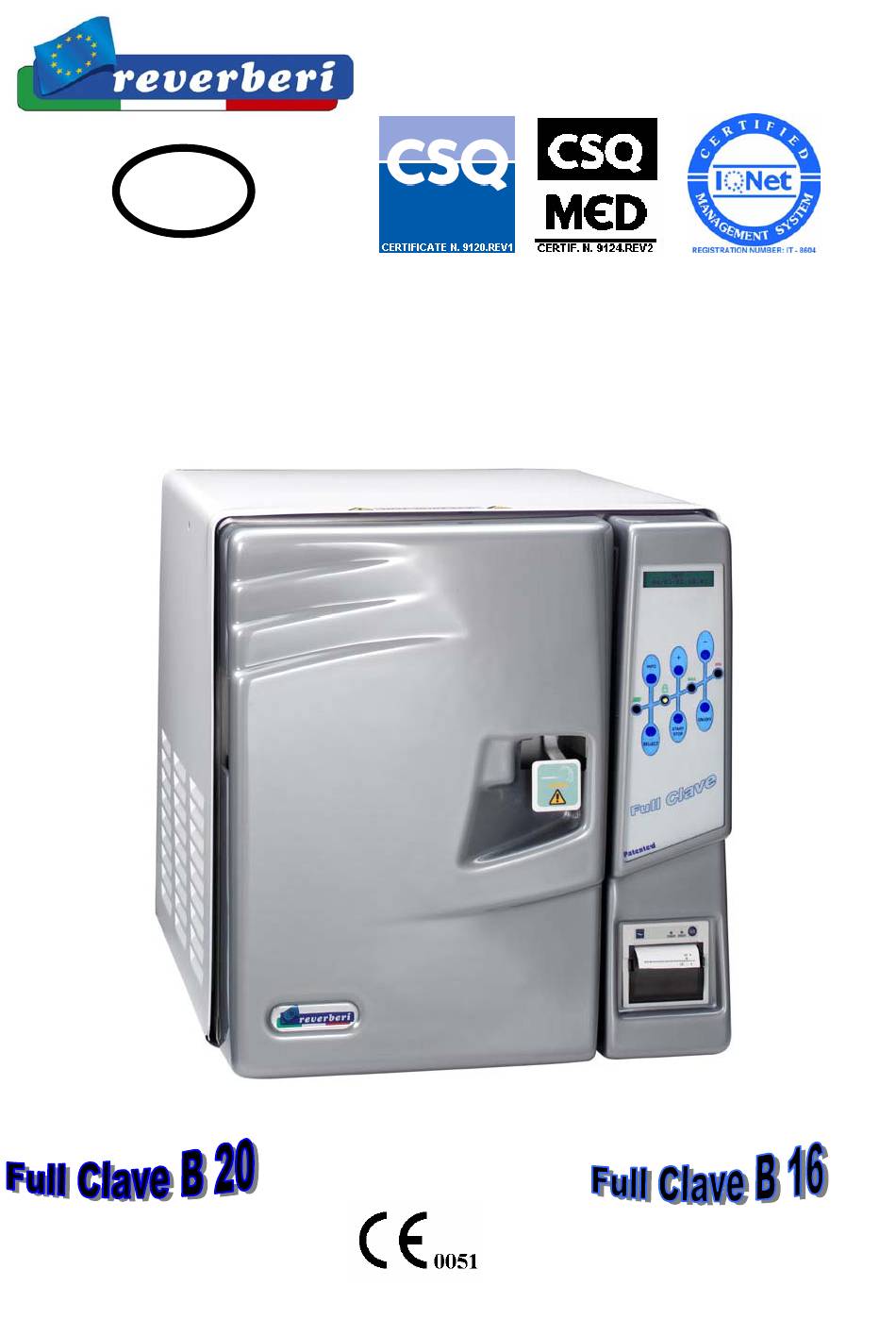

- Page 1 COMPANY WITH CERTIFIED QUALITY SYSTEM UNI EN ISO 9001 & EN 13485 MEDICAL APPLIANCE DIVISION Cod.3788 Operation and maintenance manual STEAM STERILIZERS MODELS...
- Page 2 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Reverberi s.r.l. thanks you for having bought one of its products and asks you to read this manual. The manual contains all the information you require in order to use the machine you have purchased.
-
Page 3: Table Of Contents
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Table of contents: Chapter Description Page Introduction ………………………………………………………………………………………………… Technical specifications …………………………………………………………………………….. General recommendations ………..………………………………………………………………… Regulations for the operator ………………………………………………………………………. Location of the controls …………………………………………………….…………………..…… Starting and setting at work ……………………………………………..…………………….…… Removing the machine from the packing ……………………………………………………. -
Page 4: Introduction
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 1 . I N T R O D U C T I O N The machine described in this operation and maintenance manual is a steam sterilizer that has been specially designed to sterilize most of the materials and instruments used in dental surgeries, doctors' surgeries and hospitals in general. -
Page 5: Technical Specifications
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 2 . T E C H N I C A L S P E C I F I C A T I O N S FULL CLAVE are autoclaves designed and built in compliance with the operators' need for functionality, practical use and safety. - Page 6 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Description Unit of measurement Values Power source voltage rating 230 V.a.c. ~ Power source frequency Machine power rating 2300 Boiler volume Ø 240 x 340 Ø 240 x 440 (B20) Operating pressure 2.1 - 1.1 Machine dimensions X, Y, Z...
-
Page 7: General Recommendations
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave . G E N E R A L R E C O M M E N D A T I O N S Regulations for the operator Always wear personal protective equipment in compliance with the directives that establish the current accident-preventing provisions. -
Page 8: Location Of The Controls
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 4 . L O C A T I O N O F T H E C O N T R O L S FULL CLAVE feature an elegant casing treated with scratch-proof epoxy powder paint in the RAL 9010 COLOUR. - Page 9 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave -12- DOOR OPENING LEVER -13- FILL TANK -14- DRAIN TANK -15- PRINTER -16- BACTERIOLOGICAL FILTER INFO DISPLAY READING: A=Two boxes indicating the cycle number B=Five boxes indicating the cycle temperature C=Seven boxes indicating the name of the cycle D=Seven boxes indicating the temperature in the chamber E=Eight boxes indicating the pressure in the chamber...
-
Page 10: Starting And Setting At Work
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 5 . S T A R T I N G A N D S E T T I N G A T W O R K 5.1 Removing the machine from the packing The machine is consigned packed on a wooden pallet in a cardboard box: make sure that there are no dents and that the wrapping is in optimum conditions. - Page 11 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave DESCRIPTION OF THE REAR PART 1. INLET TO CONNECT TO THE WATERWORKS 2. CARTER SECURITY VALVE CHAMBER 3. THERMOSTAT MANUAL REARMAMENT CHAMBER RESISTANCE 4. THERMOSTAT MANUAL REARMAMENT GENERATOR RESISTANCE 5. THERMOSTAT AUTOMATIC REARMAMENT CHAMBER RESISTANCE 6.
-
Page 12: Installation And Preliminary Inspections
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 5.2 Installation and preliminary inspections The installer is obliged to make sure that the place in which the sterilizer is installed is fit for that purpose (CEI 62/4). Install the autoclave in a well ventilated place, well away from sinks, heat sources, grinders and from all other machines. -
Page 13: General Instructions For Use
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 6 . G E N E R A L I N S T R U C T I O N S F O R U S E 6.1 Directions for use OPEN THE DOOR BY MEANS OF THE HANDLE (12). -
Page 14: How To Drain The Water From The Tanks
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 6.2 How to drain the water from the tanks DRAIN TANKS (14): Whenever warning light (7) and a message on the display indicate that the maximum level has been reached in the tank, proceed in the following way: Connect the free end of the supplied drain pipe to the sewer main and insert the white connector on the other end of the pipe into the drain tank tap . -
Page 15: End Of Work
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 6.3 After work After the operations have terminated, move the green main switch (17) to position 0 and open the door. Pay particular attention to the temperature of the various components when the machine is switched off. -
Page 16: Sterilizing Chart
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 7.1 Sterilizing table Cycle FRACTIONED STERILIZING DRYING TIME N° CYCLES AT 121° VACUUM TIME (Min.) (Min.) (N°) Unwrap. (non-packeted) Wrapped (packeted) Hollow (fabrics) Porous Cycle FRACTIONED STERILIZING DRYING TIME N° CYCLES AT 134°... -
Page 17: Monthly Inspection Proposal
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 7.3 Monthly inspection proposal Fac simile of an inspection form Sterilizer data Brand Model Year of purchase Observations Periodical internal inspection Date Cycle length on Cycle temperature Cycle temperature display 07/11/2000 20’... -
Page 18: Use Of The Printer
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 7.4 Use of the printer The printer (15) is built into the control panel of the autoclave. The printer is automatically powered when the main switch of the autoclave (17) is turned on and the green led marked with the word “POWER”... -
Page 19: Messages Displayed
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 8. MESSAGES DISPLAYED 8.1 Alarm management In the ON and CYCLE statuses, the system supervises the functional events that cause an alarm status if faults occur. In the alarm status, the system issues a rhythmic sound that can be interrupted by resetting the alarm itself. -
Page 20: Troubleshooting: Solutions/Remedies
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 8.2 Troubleshooting: Solutions/Remedies Message displayed Causes Remedies Pressure leaks from the Check the door seal. Replace it if it is door. damaged or caked, then adjust the door pressure (see page 21). Defective N.O. -
Page 21: Faults Without Messages
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave The door has been opened Press the START / STOP button before DOOR OPEN during the vacuum phase. opening the door. Door micro defective. Check, calibrate or replace the door micro. Power failure in the Check to find out whether there are faults in electricity main of the... - Page 22 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Water inlet filter clogged. Replace the used water filter and make sure that there are no residues in the tank. WATER FILL PUMP IN No water in the clean water Check and fill the tank if necessary.
-
Page 23: Maintenance
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 1 0 . M A I N T E N A N C E Carry out maintenance work when the machine is off, with the plug removed from the power socket and when the various components have cooled down. The validity of the declaration of conformity to the laws in force will become void unless the maintenance operations described below are carried out. -
Page 24: Monthly Routine Maintenance
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 10.4 Extraordinary maintenance to be carried out each month Press the red key on the tap (SC3) and release the pipe that connects the drain tank (14) to the machine. (Similarly to all maintenance operations, remember that this must be carried out when the machine is cold). -
Page 25: Periodic Extraordinary Maintenance
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Check the door adjustment: if it is very slow, it must be regulated by turning the regulator at the rear of the door in direction A (see figure) with the supplied wrench. This increases the pressure exercised by the seal. -
Page 26: Recommended Inspections And Replacements (After About 1000 Cycles)
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave 10.6 Recommended inspections and replacements (after about 1000 cycles) 1) Make sure that the safety valve functions correctly. - Remove the protective casing - Carry out the 134° cycle and when the maximum pressure has been reached (2.2 bar), unscrew and retighten the knurled ring nut on the safety valve. -
Page 27: Electrical System
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave ELECTRICAL SYSTEM: Rev. 01 of 01-12-2006 - C:\Documenti\Manuali di istruzione\FULL CLAVE GB-R01.doc Page 27 of 34... - Page 28 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave Rev. 01 of 01-12-2006 - C:\Documenti\Manuali di istruzione\FULL CLAVE GB-R01.doc Page 28 of 34...
-
Page 29: Hydraulic Circuit
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave HYDRAULIC CIRCUIT: Rev. 01 of 01-12-2006 - C:\Documenti\Manuali di istruzione\FULL CLAVE GB-R01.doc Page 29 of 34... -
Page 30: Form To Use When Appliances Are Returned For Repairs
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave FORM TO FILL OUT WHEN To be filled out by the: APPLIANCES ARE Via Don Luigi Sturzo n°6 42021 BARCO ( Reggio Emilia ) ITALY Installer or authorized person RETURNED FOR REPAIRS Tel. - Page 31 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave It is obligatory for the installer to fill out all parts of this form and to declare that he has complied with all the conditions ensuring that the appliance is correctly installed in compliance with sect. 5.2 of the instruction manual.
-
Page 32: Warranty Certificate
Operation and Maintenance Manual – Steam sterilizers mod. Full Clave WARRANTY CERTIFICATE This document certifies that the appliance has been correctly manufactured. The appliance will be repaired if it operates in a faulty way during the warranty period owing to manufacturing defects, the manufacturer's judgement over such matters being final. - Page 33 Operation and Maintenance Manual – Steam sterilizers mod. Full Clave WARRANTY CERTIFICATE APPLIANCE: The undersigned reseller certifies that the warranty has been examined and certifies that the appliance has been consigned and installed in compliance with the instructions given by the manufacturer on:…………………………………………………………………………………………….. By Mr.
-
Page 34: Declarations Of Conformity
M9010/32 FULL CLAVE S 16 La Reverberi s.r.l. dichiara sotto la propria responsabilità che i prodotti elencati sono conformi alle norme: La maison Reverberi s.r.l. déclare sous sa responsabilité que les produit enumeres sont conformes aux directives: The company Reverberi s.r.l. declare under own exclusive responsability that the product listed are in conformity with the normatives: Reverberi s.r.l.
