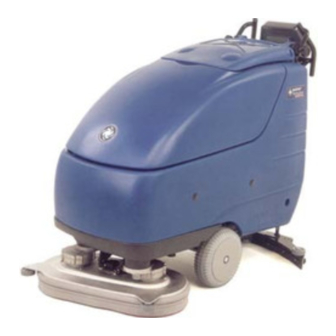

Summary of Contents for KENT Razor Plus 24C

Page 1 Razor Plus 24D-26D-28D Razor Plus 24C-28C PARTS LIST KENT MODELS: 908 7041 020 - 908 7038 020 - 908 7039 020 908 7042 020 - 908 7040 020 909 5429 000(3)2006-02...
Page 3: Table Of Contents
2004-12 TABLE OF CONTENTS RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C DESCRIPTION PLAN GENERAL VIEW SOLUTION TANK RECOVERY TANK CHASSIS SYSTEM WHEELS AND TRACTION 10-11 HANDLE ASSEMBLY 12-13 SOLUTION SYSTEM 14 - 15 SQUEEGEE SYSTEM 16 - 19 DISC SCRUB DECK SYSTEM 20 - 21 CYLINDRICAL SCRUB DECK SYSTEM 22 - 25...
Page 4 GENERAL VIEW 2004-12 RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 909 5429 000(3)2006-02...
Page 5: General View
2004-12 GENERAL VIEW RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C Item No. Ref. No. Description Solution tank Recovery tank Chassis system Wheels and traction Handle assembly Solution system Squeegee system Scrub deck system Control panel system Electrical system 909 5429 000(3)2006-02...
Page 6 SOLUTION TANK 2004-12 RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 7: Solution Tank
2004-12 SOLUTION TANK RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 Item No. Ref. No. Description 909 5327 000 Extractible feed hose [2]# 909 5475 000 Decal kit, Razor Plus 24D/ 26D/ 28D/ 24C/ 28C [(29, 40, page 5) (24, page 11) (59,66,67,68,69, page 35)] 909 5234 000 Bracket, tank ﬁxing...
Page 8: Recovery Tank
2004-12 RECOVERY TANK RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 9: Recovery Tank
2004-12 RECOVERY TANK RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 Item No. Ref. No. Description xxx xxxx xxx Cover vacuum motor (Motor,vacuum cover kit) 08095000 O-ring 909 5246 000 Gasket 56412093 Clamp, hose ﬁxing 56329145 Clamp, hose ﬁxing xxx xxxx xxx Gasket, vacuum motor (Motor,vacuum cover kit) 909 5240 000 Drain hose...
Page 10 2004-12 CHASSIS SYSTEM RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 11: Chassis System
145 9120 000 Washer ﬂat 8x17 xxxxxxxx Nut hex M10 (Hardware ﬁxing kit) 08603688 Nut hex low M5 selﬂocking SS, Razor Plus 24C - 28C 145 9133 000 Washer ﬂat 5x10,Razor Plus 24C - 28C 145 9669 000 Screw M5x20,Razor...
Page 12: Wheels And Traction
2004-12 WHEELS AND TRACTION RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 909 5429 000(3)2006-02...
Page 13: Wheels And Traction
2004-12 WHEELS AND TRACTION RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C Item No. Ref. No. Description xxxxxxxx Retaining ring (Ball bearing kit) xxx xxxx xxx Retaining ring (Ball bearing kit) xxxxxxxx Retaining ring (Ball bearing kit) 909 5204 000 Drive motor 24V W200 xxxxxxxx Washer (Ball bearing kit) 145 9228 000...
Page 14 2004-12 HANDLE ASSEMBLY RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 909 5429 000(3)2006-02...
Page 15: Handle Assembly
2004-12 HANDLE ASSEMBLY RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 Item No. Ref. No. Description 08048300 Nut M3 08093600 Screw cyl hd M3x16 56325716 Washer ﬂat 4x9 SS 56340083 Cable ﬁxing block xxxxxxxx Washer ﬂat 6x12,5 (Handle Hardware kit) 56325661 Screw pan hd 3,6x16 thd form 56340224...
Page 16 2004-12 SOLUTION SYSTEM RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 17: Solution System
2004-12 SOLUTION SYSTEM RAZOR Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02 Item No. Ref. No. Description 56325638 Clamp 909 5207 000 Water ﬁlter (Solenoid valve kit) xxx xxxx xxx Valve (Kit valve complete-Kit valve with pipe holder) 145 9228 000 Washer 6 xxxxxxxx Valve (Solenoid valve kit -Valve kit)
Page 18 2004-12 SQUEEGEE SYSTEM RAZOR Plus 24D/ 26D/ 24C 909 5429 000(3)2006-02...
Page 19: Squeegee System
2004-12 SQUEEGEE SYSTEM RAZOR Plus 24D/ 26D/ 24C 2006-02 Item No. Ref. No. Description 909 5218 000 Fork 08601574 Handwheel M8x55 08601854 Spacer ø7xø10x8 146 1232 000 Spacer ø15xø20x4 56325538 Washer ﬂat 6x18 xxxxxxxx Washer ﬂat 10x30(Hardware squeegee holder kit) xxxxxxxx Screw hex hd M10x70(Hardware squeegee holder kit) 56325621...
Page 20 2004-12 SQUEEGEE SYSTEM RAZOR Plus 28D/ 28C 909 5429 000(3)2006-02...
Page 21: Squeegee System
2004-12 SQUEEGEE SYSTEM RAZOR Plus 28D/ 28C 2006-02 Item No. Ref. No. Description 909 5218 000 Fork 08601574 Handwheel M8x55 08601854 Spacer ø7xø10x8 146 1232 000 Spacer ø15xø20x4 56325538 Washer ﬂat 6x18 xxxxxxxx Washer ﬂat 10x30 (Hardware squeegee holder kit) xxxxxxxx Screw hex hd M10x70 (Hardware squeegee holder kit) 56325621...
Page 22 2004-12 DISC SCRUB DECK SYSTEM RAZOR Plus 24D/ 26D/ 28D Solution system 909 5429 000(3)2006-02...
Page 23: Disc Scrub Deck System
2004-12 DISC SCRUB DECK SYSTEM RAZOR Plus 24D/ 26D/ 28D 2006-02 Item No. Ref. No. Description 909 5293 000 Cable, stainless steel 145 9212 000 U-bolt ø10 145 8564 000 Split pin 3 xxxxxxxx Holder splash guard Razor Plus 24D/26D (Splash guard ﬁt. kit Razor Plus 24/26D) xxx xxxx xxx Holder splash guard Razor...
Page 24 2004-12 CYLINDRICAL SCRUB DECK SYSTEM RAZOR Plus 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 25: Cylindrical Scrub Deck System
Plus 24C/ 28C 2006-02 Item No. Ref. No. Description xxx xxxx xxx Spacer ø 6,5x25x2,5 (Razor Plus 24C-28C Hardware kit) 145 9120 000 Washer ﬂat 8x17 (Roller Kit Razor Plus 24C-28C) 909 5141 000 Hose 320 mm length 56325538 Washer ﬂat 8x17...
Page 26 2004-12 CYLINDRICAL SCRUB DECK SYSTEM RAZOR Plus 24C/ 28C 2006-02 909 5429 000(3)2006-02...
Page 27 Carbon brush for electric motor 909 5773 000 (Razor Plus 24C) [60] 08603949 Carbon brush set for electric motor 909 5774 000 (Razor Plus 28C) 909 6360 000 Roller Kit Razor Plus 24C-28C (2-49-50-51-52-53-54-55) 909 6263 000 Razor Plus 24C-28C Hardware kit (1-8-15-16-17-18-20) 909 5429 000(3)2006-02...
Page 28: Accessories
2004-12 ACCESSORIES RAZOR Plus 24D/ 26D/ 28D 2006-02 Item Ref. No. Description 909 5497 000 1 (24”) Brush Deck kit 909 5495 000 1 (26”) Brush Deck Kit 909 5496 000 1 (28”) Brush Deck Kit Installation Instructions [2]# 909 5971 000 1 Ref.
Page 29 2004-12 ACCESSORIES RAZOR Plus 24C/ 28C Item Ref. No. Description 909 5875 000 1 (24”) Cylindrical Deck kit 909 5876 000 1 (28”) Cylindrical Deck Kit 909 5962 000 1 Installation Instructions TSB IT 2005-001 Ref. No. 28” BRUSHES Ref. No. 24” BRUSHES...
Page 30 2004-12 ACCESSORIES - Recycle Kit RAZOR Plus all models - for machine starting from serial number 1776829 2006-02 909 5429 000(3)2006-02...
Page 31 2004-12 ACCESSORIES - Recycle Kit 2006-02 RAZOR Plus all models - for machine starting from serial number 1776829 Item No. Ref. No. Description 909 5926 000 Solenoid Valve NO 909 5932 000 Pump xxx xxxx xxx Block xxxxxxxx Rubber holder 1/4 xxxxxxxx Nut hex.
Page 32 2004-12 CONTROL PANEL SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 909 5429 000(3)2006-02...
Page 33: Control Panel System
2004-12 CONTROL PANEL SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 Item No. Ref. No. Description 56325728 Counter hour 24V 146 2888 000 Key switch 909 6421 000 Lever, water faucet 145 4719 000 Knob for potentiometer 909 5251 000 Click off switch 909 5250 000 Switch...
Page 34 2004-12 WIRING SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 909 5429 000(3)2006-02...
Page 35: Wiring System
2004-12 WIRING SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 Item No. Ref. No. Description 909 5478 000 Battery charger kit xxx xxxx xxx Pulley (Wiring system Hardware kit) xxx xxxx xxx Squeegee lift cable (Squeegee lever cable kit) 145 6063 000 Battery connector xxx xxxx xxx...
Page 36 2004-12 WIRING SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 909 5429 000(3)2006-02...
Page 37 2004-12 WIRING SYSTEM RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 Item No. Ref. No. Description 909 5149 000 Support xxx xxxx xxx Decal, suction (Decal kit, Razor Plus 24D/ 26D/ 28D /24C /28C) 909 5444 000 Harness, battery 909 5101 000 Drive system fuse 30A 909 5399 000 Squeegee lever cable kit (3-28-29-34-39-43-49)
Page 38: Wiring Diagram
2004-12 WIRING DIAGRAM RAZOR Plus 24D/ 26D/ 28D /24C /28C (YE-GN) COMPONENTS 24V BATTERIES ACTUATOR 24V 909 5189 000 BATTERY CONNECTOR 145 6063 000 DRIVE MOTOR 24V W200 909 5204 000 [C2] SECONDARY CHARGER CONNECTORS included in 909 5478 000 RECYCLING WATER PUMP (OPT)not available yet M7 COOLING FAN (for models w.
Page 39: Recommended Spare Parts
2004-12 RECOMMENDED SPARE PARTS RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 RAZOR P 24D RAZOR P 26D RAZOR P 28D RAZOR P 24C RAZOR P 28C Description Tank Systems 08603228 08603228 08603228 08603228 08603228 Gasket cover 909 5240 000 909 5240 000 909 5240 000 909 5240 000...
Page 40 2004-12 RECOMMENDED SPARE PARTS RAZOR Plus 24D/ 26D/ 28D /24C /28C 2006-02 RAZOR P 24D RAZOR P 26D RAZOR P 28D RAZOR P 24C RAZOR P 28C Description Electrical System 909 5749 000 909 5749 000 909 5749 000 909 5749 000 909 5749 000 Functions electronic board 909 5255 000...
Page 42 14600 21st Avenue North Plymouth, MN, 55447-3408 www.kenteuroclean.com Phone: 800-334-1083 Fax: 866-261-4779 @2006 Printed in Italy...
