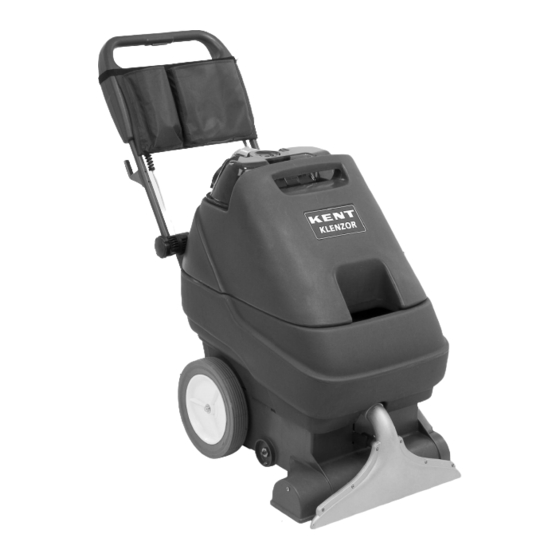

KENT Klenzor 16 MPH Parts List
  1. Manuals
  2. Brands
  3. KENT Manuals
  4. Floor Machine
  5. Klenzor 16 MPH
  6. Parts list

KENT Klenzor 16 MPH Parts List

Kent euroclean klenzor 16 mph: supplementary guide
Hide thumbs Also See for Klenzor 16 MPH:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
Klenzor
Klenzor

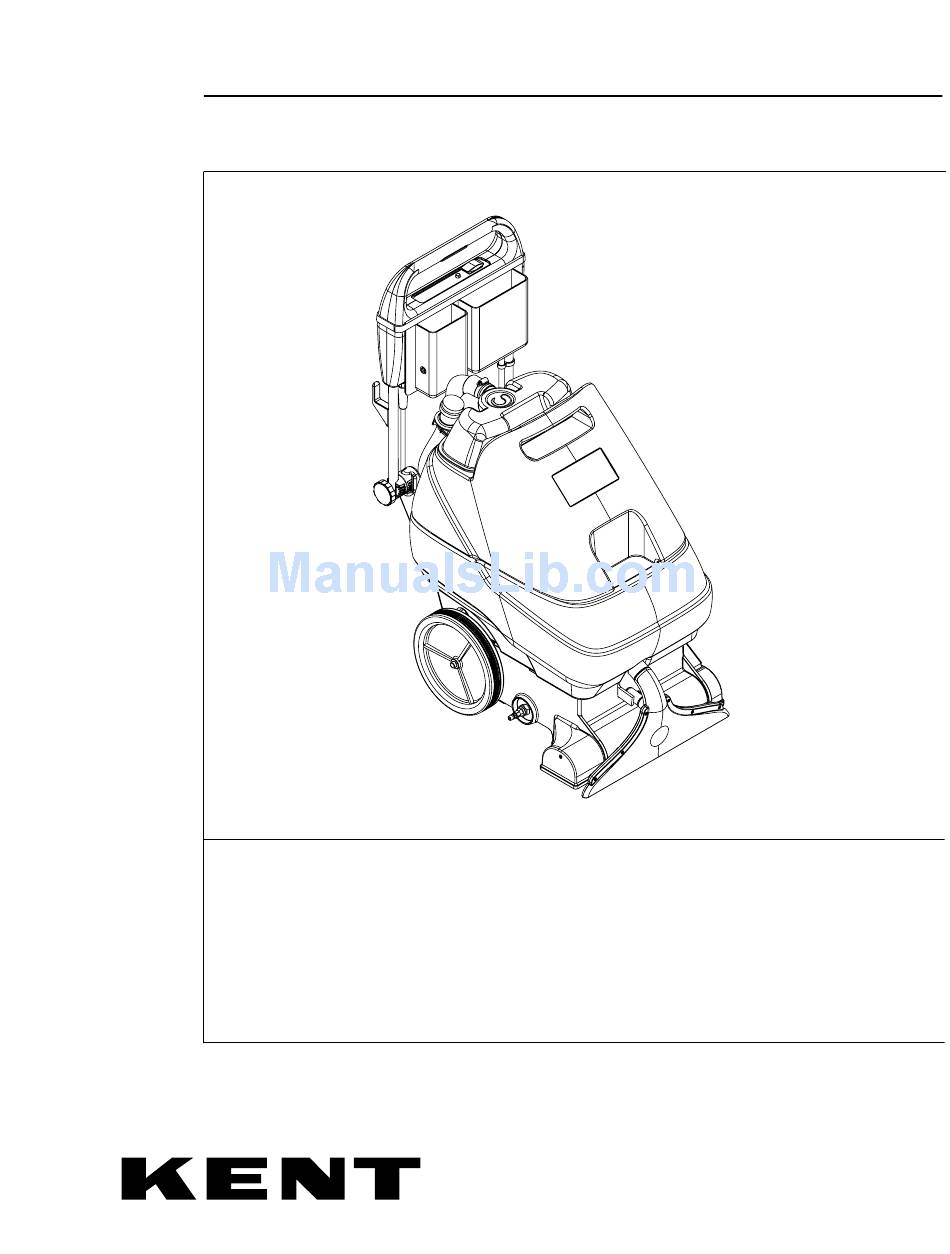

PARTS LIST
Kent MODELS 56265004(16), 56265005(18)
Simple. Clean.
16
™
18 MPH
™
12/04 revised 10/06 FORM NO. 56042453

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Klenzor 16 MPH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KENT Klenzor 16 MPH

Summary of Contents for KENT Klenzor 16 MPH

  • Page 1 Klenzor Klenzor PARTS LIST Kent MODELS 56265004(16), 56265005(18) Simple. Clean. ™ 18 MPH ™ 12/04 revised 10/06 FORM NO. 56042453...

  • Page 3: Table Of Contents

    04-12 TABLE OF CONTENTS Klenzor 16, 18 MPH ™ DESCRIPTION Base System ... 2-3 Brush System ... 4-5 Decal System ... 6-7 Handle System 16 ... 8-9 Handle System 18 ... 10-11 Recovery System ... 12-13 Solution Pump System ... 14-15 Solution Tank Assembly ...
  • Page 4 04-12 BASE SYSTEM Klenzor 16, 18 MPH ™ 05-3 FORM NO. 56042453...

  • Page 5: Base System

    04-12 BASE SYSTEM 05-3 Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56265067 Shoe Assembly, 16 (Klenzor 16) (items 2-5) 56265080 Shoe Assembly, 18 (Klenzor 18) (items 2-5) 56002865 Nut, Hex Nyl Loc-Thin 8-32 56002101 Scr, Soc Hd 8-32 x 0.50 56265068 Shoe Front, 16 56265081...
  • Page 6 04-12 BRUSH SYSTEM Klenzor 16, 18 MPH ™ 05-3 FORM NO. 56042453...

  • Page 7: Brush System

    04-12 BRUSH SYSTEM 05-3 Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56265204 Bearing/Spindle Kit Spindle, Drive Washer, Bearing Bearing, Block Sheave Poly-V 6J17 Bearing, Ball Bearing, Ball 56262558 Sheave, Poly-V 56002849 Nut, Hex Nyl Loc-Thin SS 10-24 56001854 Scr, Hex Hd 1/4-20 x .50 56002098...

  • Page 8: Decal System

    DECAL SYSTEM DECAL SYSTEM 04-12 Klenzor 16, 18 MPH ™ FORM NO. 56042453...

  • Page 9: Decal System

    04-12 DECAL SYSTEM DECAL SYSTEM Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56016717 Decal, Panel (18) 56016716 Decal, Panel (16) 56016723 Decal, Kent Klenzor 56016718 Decal, Brush Pressure FORM NO. 56042453...

  • Page 10: Handle System 16

    04-12 HANDLE SYSTEM 16 Klenzor 16, 18 MPH ™ FORM NO. 56042453...

  • Page 11: Handle System 18

    04-12 HANDLE SYSTEM 16 Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56265097 Switch, Rocker 56262518 Hook, Cord 56009095 Nut, Conduit Lock 1/2-14 56264123 Ratchet 56302167 Knob 56264118 Ratchet 56002231 Scr, Pan Phil 10-24 x 1.50 56002824 Scr, Pan Phil 10-24 x 1.25 56002832 Nut, Hex Nyl Loc-Thin 10-24 56003092...

  • Page 12: Handle System 18

    HANDLE SYSTEM 18 HANDLE SYSTEM 18 Klenzor FORM NO. 56042453 16, 18 MPH ™ 04-12 06-10...

  • Page 13: Handle System 18

    04-12 HANDLE SYSTEM 18 HANDLE SYSTEM 18 Klenzor 16, 18 MPH ™ 06-10 Item Ref. No. Qty Description 56265097 Switch, Rocker (vacuum) 56265107 Switch, Rocker (solution) 56262518 Hook, Cord 56009095 Nut, Conduit Lock 1/2-14 56111503 Bearing, Flange 56056519 Compression Spring...

  • Page 14: Recovery System

    RECOVERY SYSTEM RECOVERY SYSTEM 04-12 Klenzor 16, 18 MPH ™ 05-3 FORM NO. 56042453...

  • Page 15: Recovery System

    Tank, Recovery, 16 (16) 56265133 Tank, Recovery, 18 (18) 56265134 Duct, Float 56265163 Gasket 56265202 Vac Hose Assy 56314484 Mount, Vibration 56314760 Gasket, Vacuum Duct 56329145 Clamp, Hose SAE #24 56002900 Scr, Pan Phil SS 10-24 x .50 FORM NO. 56042453...
  • Page 16 SOLUTION PUMP SYSTEM 04-12 Klenzor 16, 18 MPH ™ 05-1 FORM NO. 56042453...

  • Page 17: Solution Pump System

    04-12 SOLUTION PUMP SYSTEM 06-10 Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56900069 Barb, 90 Elbow 1/2 X 3/8NPT 56756364 Clamp, Hose SAE #4 56470138 Barb, 90 Elbow 1/4 x 1/4NPT 56264382 Adaptor, Barbed 56265051 Pump 115V 56265033 Mount, Pump 56265160...
  • Page 18 SOLUTION SYSTEM SOLUTION TANK ASSEMBLY 04-12 Klenzor 16, 18 MPH ™ 05-3 FORM NO. 56042453...

  • Page 19: Solution Tank Assembly

    04-12 SOLUTION TANK ASSEMBLY SOLUTION SYSTEM Klenzor 16, 18 MPH ™ 05-3 Item Ref. No. Qty Description 56264119 Clamp, Power Cord (18 only) 56264137 Screen 56262190 Barb 56002003 Scr, Pan Phil 8-32 x .50 (18 only) 56002124 Scr, Pan Phil 10-24 x .62 56002145 Scr, Pan Phil 1/4-20 x .50 (18 only) 56219932...

  • Page 20: Wiring Diagram

    INTERMITTENT SPRAY MOTOR, BRUSH MOTOR, BRUSH AMP = 3.4 AMP = 3.4 CONSTANT SPRAY CONSTANT SPRAY BLK (#4) MOTOR, VACUUM MOTOR, VACUUM AMP = 11.3 AMP = 11.3 MOTOR, PUMP MOTOR, PUMP AMP = 0.6 AMP = 0.6 SOLENOID VALVE SOLENOID VALVE AMP = .06...

  • Page 21: Wiring Diagram

    Description 56265103 Rectifi er, 35 Amp 56265056 Circuit Breaker, 5 Amp 56265037 Valve, Solenoid 115V 56265096 Motor Vacuum, 120V 56264453 Carbon Brushes for 56265096 (one pair) 56265075 Motor, Brush 115 VDC, 1/3 HP 56265051 Motor, Pump 115V 56265097 Switch, Mode Selection...

  • Page 22: Hard Floor Tool Kit

    HARD FLOOR TOOL KIT 04-12 Klenzor 16, 18 MPH ™ FORM NO. 56042453...

  • Page 23: Hard Floor Tool Kit

    04-12 HARD FLOOR TOOL KIT Klenzor 16, 18 MPH ™ Item Ref. No. Qty Description 56265150 Hard Floor Tool (items 1-16) (Optional) 56324350 Wheel 56400613 Gasket 56400614 Gasket 56105506 Blade Spec, Squeegee 56363855 Wheel 56471220 Bushing 56002850 Nut, Hex Nyl Loc-Thin SS 1/4-20 56002901 Scr, Hex Hd SS 1/4-20 x 1.50 56003037...

  • Page 24: Accessories

    ACCESSORIES Klenzor OPTIONAL BRUSHES Brush Assembly Description Nylon Brush Assembly Blue Brush Assembly 240 Grit Brush Assembly ACCESSORY TOOLS Ref. No. Description 56314402 Wand Assembly w/Soft and Hard Floor Tools 56265173 Wand Assembly w/Soft Floor Tool 56262209 Stand Up Wand 56220109 Hand Tool 56220070...
  • Page 28 Simple. Clean.

This manual is also suitable for:

Klenzor 16Klenzor 18mph5626500456265005
