QCIOT4-DA16600POCZ
Combo Wireless PMOD™ Module Evaluation Board
The QCIOT4-DA16600POCZ is a combo wireless
PMOD™ module having Wi-Fi and Bluetooth
Energy (BLE) connectivity. The QC-IOT4 PMOD
module is designed based on highly integrated ultra-
low-power Wi-Fi + Bluetooth Low Energy using a
DA16600 combo module solution. Two PMOD
connectors are available for Wi-Fi and BLE
communication with SPI and UART interfaces,
respectively. All of the PMOD signals are also made
available when the QC-IOT4 module is interfaced
with an Arduino shield connector.
Board Contents
QCIOT4-DA16600POCZ Evaluation Board
■
R15UH0009EU0101 Rev.1.01
Sep 6, 2024
®
Low

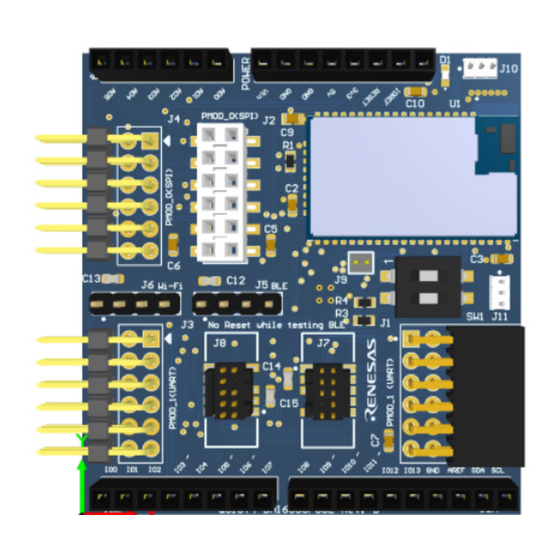

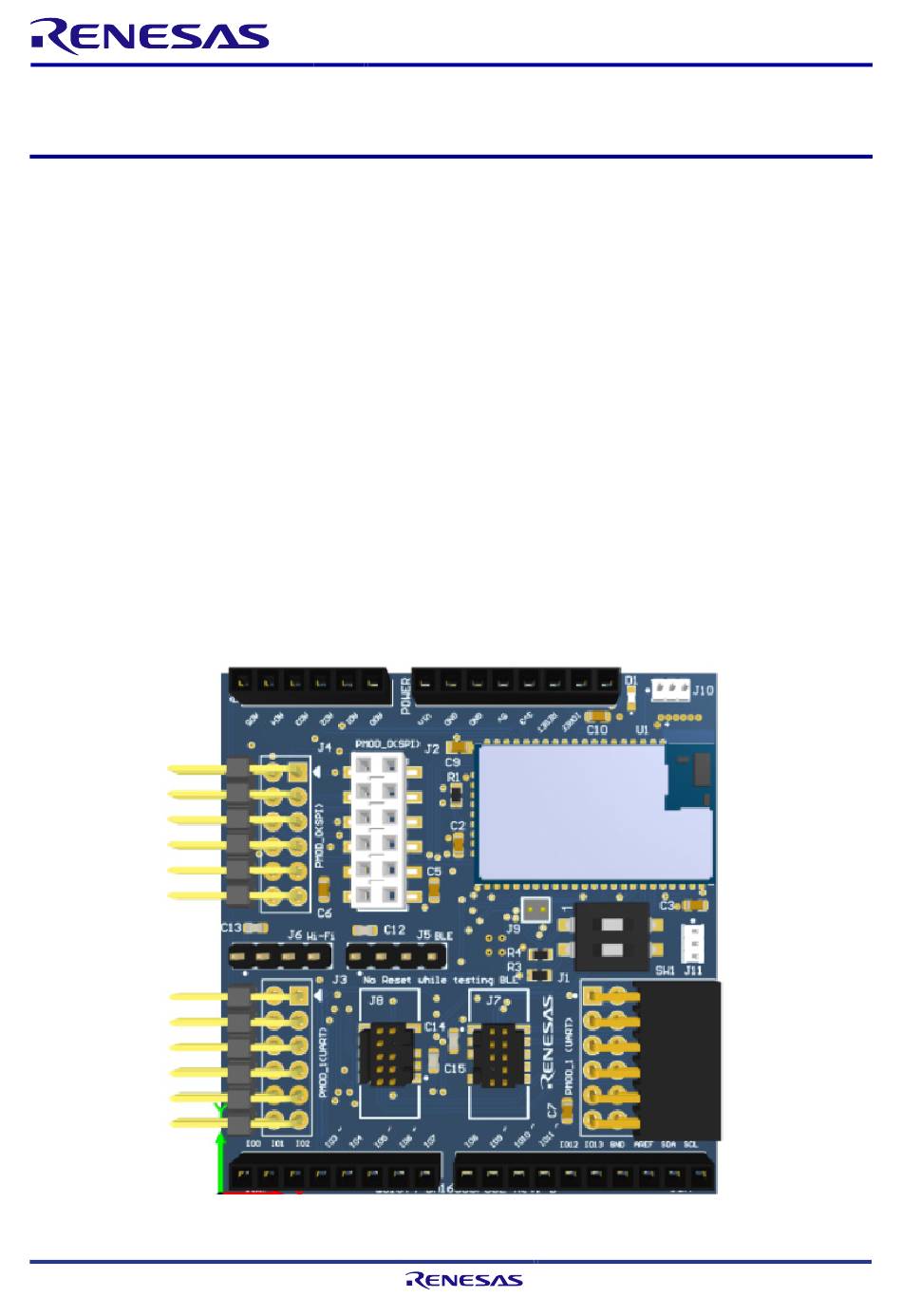

Figure 1. QCIOT4-DA16600POCZ PMOD Evaluation Board (top)
Evaluation Board Manual
Features
Support both RTOS and Linux operating systems:
■
Linux: SPI→Wi-Fi, UART→BLE
●
RTOS (optional): SPI→Wi-Fi/BLE,
●
UART→Wi-Fi/BLE Low power single-band Wi-Fi
and BLE communication
Low power single-band Wi-Fi and BLE
■
3.3V power operated
■
4-layer PCB
■
Applications include (but not limited to) IIoT,
■
Gateways
Standardized type 2A/3A PMOD™ connector
■
supports SPI/UART extended interface
Standard Arduino connector supports SPI and
■
UART
Dual connectors allow pass-through signals for
■
daisy-chained solutions in RTOS system mode
Page 1
© 2024 Renesas Electronics
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas QCIOT4-DA16600POCZ
Summary of Contents for Renesas QCIOT4-DA16600POCZ
-
Page 1: Figure 1. Qciot4-Da16600Pocz Pmod Evaluation Board (Top)
SPI/UART extended interface Standard Arduino connector supports SPI and ■ UART Dual connectors allow pass-through signals for ■ daisy-chained solutions in RTOS system mode Figure 1. QCIOT4-DA16600POCZ PMOD Evaluation Board (top) R15UH0009EU0101 Rev.1.01 Page 1 Sep 6, 2024 © 2024 Renesas Electronics... -
Page 2: Table Of Contents
Figure 9. Copper Bottom ............................11 Figure 10. Silkscreen Bottom ..........................12 Tables Table 1. Renesas MPU and MCU Evaluation Kits Capable of Supporting Type 2A/3A PMOD/Arduino Connector Using the QCIOT4-DA16600POCZ ...................... 3 Table 2. Truth Table for On-board Switches ......................4 Table 3. -
Page 3: Functional Description
Any MPU board that supports both Type 2A and 3A PMOD ■ Any MCU board that supports Arduino connection (see Table 1) ■ Table 1. Renesas MPU and MCU Evaluation Kits Capable of Supporting Type 2A/3A PMOD/Arduino Connector Using the QCIOT4-DA16600POCZ RL78 EK-RZ/G2L... -
Page 4: Mcu Platform
QCIOT4-DA16600POCZ Evaluation Board Manual 2.2.2 MCU Platform 1. Download AT CMD binary from the webpage. 2. Flash the binary to the QC-IOT4 board. 3. Reflash MCU software. 4. Connect the QC-IOT4 board to the MCU board (see Figure 3). Note: Refer to the “QC-IOT4 DA16600 AT-CMD Test Manual” for detailed descriptions of how to flash: AT-CMD (SPI and UART) binary in DA16600 ■... -
Page 5: Evaluation Kit Hardware Connections
5. Wi-Fi router that connects wired/wireless to desktop/laptop. 6. Before powering up the board, check the switch settings on the QCIOT4-DA16600POCZ board. For Linux, SW1 should be 1, irrespective of the position of SW2 (for detailed information, see section 3.3). -
Page 6: Standalone Wi-Fi Or Ble Mode For Rf Test Setup
QCIOT4-DA16600POCZ Evaluation Board Manual Important: No other Arduino shield on the top of QCIOT4-DA16600POCZ board is recommended. Note: If SPI is in use for Wi-Fi/BLE communication, the UART PMOD (PMOD1) is available, and vice versa. Note: Jumper option J10 is available to switch between Wi-Fi and BLE (without jumper the kit is in Wi-Fi mode;... -
Page 7: Application Schematic
QCIOT4-DA16600POCZ Evaluation Board Manual 3. Application Schematic Figure 4. QCIOT4-DA16600POCZ Application Schematic R15UH0009EU0101 Rev.1.01 Page 7 Sep 6, 2024... -
Page 8: Bill-Of-Materials (Bom)
QCIOT4-DA16600POCZ Evaluation Board Manual 4. Bill-of-Materials (BOM) Table 3. QC-IOT4 Evaluation Board Bill-of-Materials Item Reference Description Value Part Number Footprint 6 Position Receptacle Connector 0.100" SSQ-106-03-G-S (2.54mm) Through Hole Gold (P-2.54mm) C1, C2, C3, C5, 10µF ±10% 16V Ceramic Capacitor X5R 0603 C6, C7, C8, 10µF... -
Page 9: Board Layout
QCIOT4-DA16600POCZ Evaluation Board Manual Item Reference Description Value Part Number Footprint 255 Ohms ±1% 0.1W, 1/10W Chip Resistor RC0603FR- 0603 (1608 Metric) Moisture Resistant Thick 255 Ohms 0603 07255RL Film 2.54 × 6.02 × DIP Switch, 2-Position, SPST 418121270802 4.40 (PxLxH) DA16600MOD, Wi-Fi, 802.11b/g/n, Bluetooth... -
Page 10: Figure 6. Copper Top
QCIOT4-DA16600POCZ Evaluation Board Manual Figure 6. Copper Top Figure 7. Copper L1 Plane (GND) R15UH0009EU0101 Rev.1.01 Page 10 Sep 6, 2024... -
Page 11: Figure 8. Copper L2 Plane (Pwr)
QCIOT4-DA16600POCZ Evaluation Board Manual Figure 8. Copper L2 Plane (PWR) Figure 9. Copper Bottom R15UH0009EU0101 Rev.1.01 Page 11 Sep 6, 2024... -
Page 12: Ordering Information
QCIOT4-DA16600POCZ Evaluation Board Manual Figure 10. Silkscreen Bottom 6. Ordering Information Part Number Description QCIOT4-DA16600POCZ QCIOT04-DA16600POCZ PMOD™ Evaluation Board 7. Revision History Revision Date Description Updated Figure 1, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, and Figure 10. - Page 13 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
