ADF Web HD67149-A1 User Manual

Rs485 – isolator – repeater – extender bus line

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Industrial Electronic Devices

User Manual

Revision 1.101

English

RS485 – Isolator – Repeater –

Extender bus line

(Order Code: HD67149-A1 - HD67149-B2)

for Website information:

www.adfweb.com?Product=HD67149

for Price information:

www.adfweb.com?Price=HD67149-A1

www.adfweb.com?Price=HD67149-B2

Benefits and Main Features:

Rail mountable

Galvanic isolation between two RS485 ports

Temperature range: -40°C/+85°C (-40°F/+185°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual RS485 - Isolator – Repeater

Document code: MN67149_ENG

Revision 1.101

For others Repeaters:

CAN Repeaters

Need help?

Do you have a question about the HD67149-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67149-A1

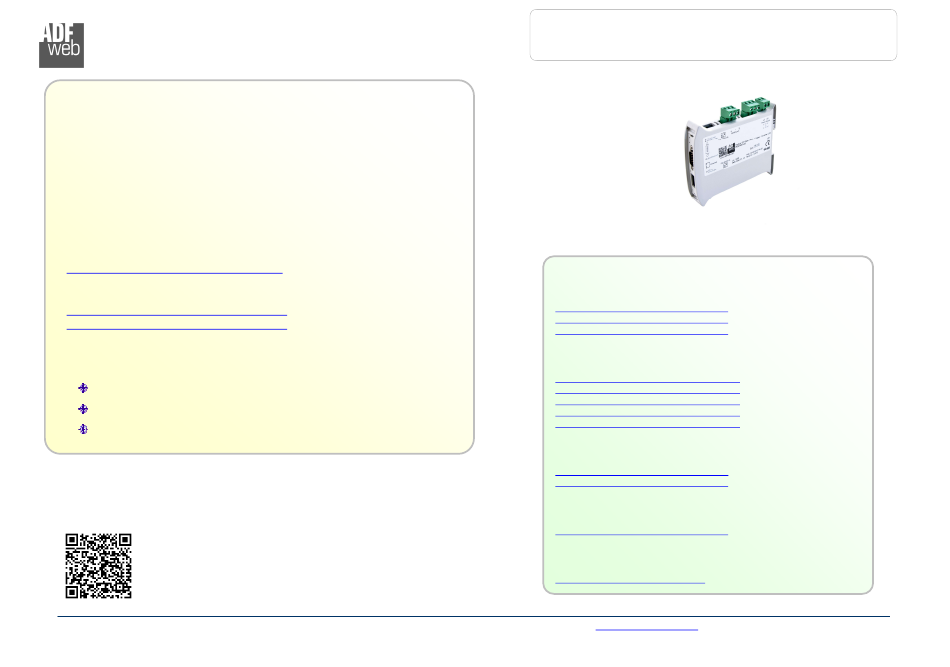

Page 1 Page 1 of 28 Industrial Electronic Devices User Manual Revision 1.101 English RS485 – Isolator – Repeater – Extender bus line (Order Code: HD67149-A1 - HD67149-B2) for Website information: www.adfweb.com?Product=HD67149 For others Repeaters: CAN Repeaters for Price information: See also the following links: www.adfweb.com?Product=HD67180...
Page 2: Updated Documentation
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...
Page 3: Security Alert
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.
Page 4: Examples Of Connection
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 4 of 28 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67149-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 6 of 28 Industrial Electronic Devices Figure 1b: Connection scheme for HD67149-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 7 of 28 Industrial Electronic Devices CHARACTERISTICS: The RS485 Isolator - Repeater has the following characteristics: Electrical isolation between two Buses; Baud Rate, Parity, StopBit changeable with software; Mountable on 35mm Rail DIN;...
Page 8: Power Supply
The devices can be powered at 8…19V AC and 8…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67149-A1 HD67149-B2 Caution: Not reverse the polarity power HD67149-A1 HD67149-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com...
Page 9: Function Modes
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 9 of 28 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware.
Page 10 Revision 1.101 Page 10 of 28 Industrial Electronic Devices LEDS: HD67149-A1 The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode...
Page 11 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 11 of 28 Industrial Electronic Devices HD67149-B2 Normal Mode Boot Mode ON: Device powered 1: Device State (green) Blinks slowly (~1Hz) OFF: Device not powered Blinks quickly: Boot state 2: RS485 0 communication Blinks when receives a byte on RS485 0 (yellow)
Page 12 ETHERNET: The Ethernet connection must be made using Connector5 of HD67149-A1 and Connector3 of the HD67149-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
Page 13 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 13 of 28 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).
Page 14 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 14 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW67149: To configure the Converter, use the available software that runs with Windows, called SW67149. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 15: New Configuration / Open Configuration
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 15 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device configuration can also be imported or exported: To clone the configurations of a programmable “RS485 Repeater / Isolator”...
Page 16: Software Options
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 16 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 17 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 17 of 28 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 18: Set Communication
“Set Communication” appears (Fig. 3). In the section “Hardware Type” is possible to select the type of converter used: HD67149-A1 (with Jumper); HD67149-A1 (with Ethernet Port); HD67149-B2 (with Dip-Switch). The means of the fields for “Serial - RS485 - 0” section are: In the field “Baudrate”...
Page 19 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 19 of 28 Industrial Electronic Devices The means of the fields for “Ethernet” section are: In the field “IP Address” the IP address of the converter is defined; In the field “SubNet Mask”...
Page 20: Update Device
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 20 of 28 Industrial Electronic Devices UPDATE DEVICE By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
Page 21 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 21 of 28 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67149 device.
Page 22 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 22 of 28 Industrial Electronic Devices UDP SNIFFER This feature is used to monitor the RS485 traffic from UDP side in case of debug of the communication. In relation to the “Frame Mode” option in section “Set Communication”, it is possible to check the bytes separately (an UDP message for each byte) or by frame (an UDP message for each serial frame).
Page 23 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 23 of 28 Industrial Electronic Devices Frame Mode enabled REQUEST Byte 0 Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 0x45 0x4E 0x41 0x42 0x4C 0x45 Text Note:...
Page 24: Mechanical Dimensions
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 24 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67149-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 25 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 25 of 28 Industrial Electronic Devices Figure 7: Mechanical dimensions scheme for HD67149-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 26: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting B: 2M, 35mm DIN Rail mounting Device Family HD67149: RS485 – Isolator - Repeater Order Code: HD67149-A1 Converter RS485 – Isolator - Repeater HD67149-B2 Converter RS485 – Isolator - Repeater ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –...
Page 27 User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 27 of 28 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 28: Warranties And Technical Support
User Manual RS485 - Isolator – Repeater Document code: MN67149_ENG Revision 1.101 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...

This manual is also suitable for:

Hd67149-b2
