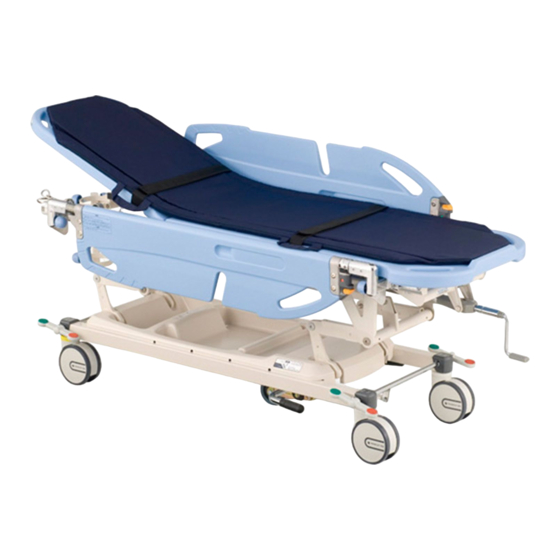

Stretcher trolley
Hide thumbs Also See for KK-728E:
Table of Contents

Advertisement

Quick Links

Download this manual

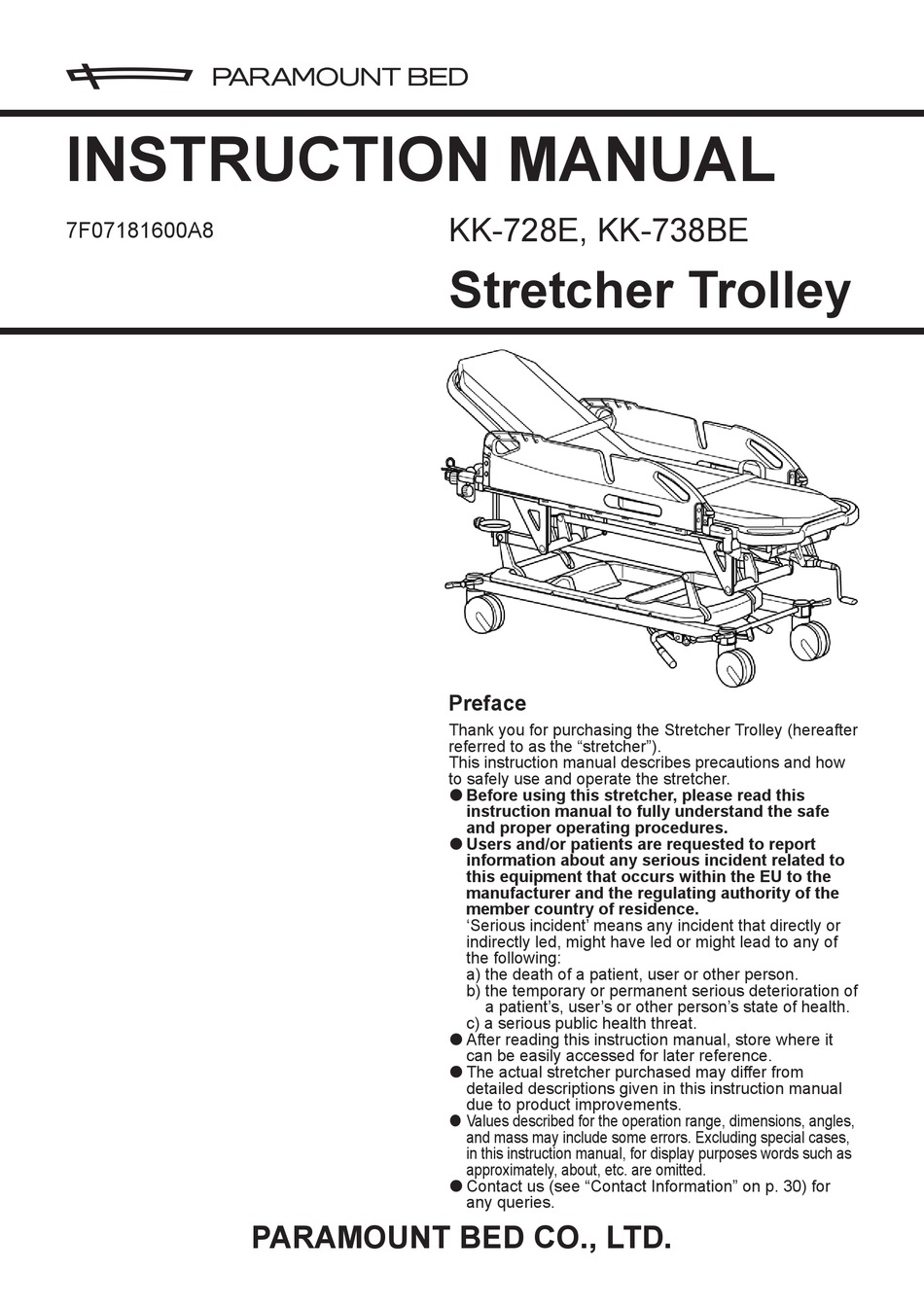

INSTRUCTION MANUAL
7F07181600A8
PARAMOUNT BED CO., LTD.
KK-728E, KK-738BE
Stretcher Trolley
Preface
Thank you for purchasing the Stretcher Trolley (hereafter
referred to as the "stretcher").
This instruction manual describes precautions and how
to safely use and operate the stretcher.
z Before using this stretcher, please read this
z
instruction manual to fully understand the safe
and proper operating procedures.
z Users and/or patients are requested to report
z
information about any serious incident related to
this equipment that occurs within the EU to the
manufacturer and the regulating authority of the
member country of residence.
'Serious incident' means any incident that directly or
indirectly led, might have led or might lead to any of
the following:
a) the death of a patient, user or other person.
b) the temporary or permanent serious deterioration of
a patient's, user's or other person's state of health.
c) a serious public health threat.
z After reading this instruction manual, store where it
z
can be easily accessed for later reference.
z The actual stretcher purchased may differ from
z
detailed descriptions given in this instruction manual
due to product improvements.
z Values described for the operation range, dimensions, angles,
z
and mass may include some errors. Excluding special cases,
in this instruction manual, for display purposes words such as
approximately, about, etc. are omitted.
z Contact us (see "Contact Information" on p. 30) for
z
any queries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KK-728E and is the answer not in the manual?

Questions and answers

Related Manuals for PARAMOUNT BED KK-728E

Summary of Contents for PARAMOUNT BED KK-728E

  • Page 1 Excluding special cases, in this instruction manual, for display purposes words such as approximately, about, etc. are omitted. z Contact us (see “Contact Information” on p. 30) for any queries. PARAMOUNT BED CO., LTD.

  • Page 2: Table Of Contents

    3 SAFETY PRECAUTIONS ..................4 4 PRECAUTIONS FOR USAGE ................9 5 OPERATION PROCEDURES ................10 1. Caster (Central locking system) ...................10 2. Center wheel system (KK-728E only) ................11 3. Height adjustment ......................12 4. Raising the backrest .....................13 5. Transfer board ......................14 6.

  • Page 3: Part Names

    1 PART NAMES KK-728E The page number shown next to this symbol p. 13 indicates where the related explanation can be found. Head end Backrest lever p. 21 Gas spring is used for the Transfer mattress backrest lever. Back section base p.

  • Page 4: Intended Use/Specifications

    * For details of the patient target groups, the intended users and the clinical benefits, see “Specifications” below. Specifications Description Stretcher Trolley Model No. KK-728E KK-738BE Total length (cm) Total width (cm) 66.3 Mattress base height (cm) (*1)

  • Page 5: Safety Precautions

    Do not remove or deface any labels. z If the safety label is removed or defaced, replace the part to which the label is affixed. Contact Paramount Bed or your distributor (see “Contact Information” on p. 30) for any queries.
  • Page 6 3 SAFETY PRECAUTIONS WARNING „ Place the patient on the stretcher with his/her head and feet oriented in the proper directions. z Have the patient lie down on the stretcher with his/her head positioned at the head end of the stretcher and feet at the foot end. If the patient lies down the other way, he/she could accidentally release Head end Foot end...
  • Page 7 WARNING „ Do not attempt to repair or modify the stretcher yourself. z This could cause abnormal operation, resulting in injury. „ Do not attempt to transfer a patient on the stretcher with the transfer boards locked in the horizontal level position. z The patient may fall off, the stretcher may tip over, or the patient’s hand may hit the wall, resulting in an injury.
  • Page 8 „ For accessories to be directly mounted on the stretcher, such as an IV Pole or mattress, use only accessories approved by Paramount Bed. z The use of products other than the specified suitable products or products from other companies could create unintended gaps, cause interference between products, or lower stability, resulting in injury or failure of the stretcher.
  • Page 9 CAUTION „ Do not climb on the back section base in the raised position. z The back section base is subject to excessive weight, and could be damaged or deformed. „ Do not move the stretcher by holding onto the transfer board only. z Otherwise, this will apply a large force to the transfer board and there is a risk of damage or deformation.

  • Page 10: Precautions For Usage

    4 PRECAUTIONS FOR USAGE „ To avoid possible malfunctions, do not install the stretcher in the following locations. z Locations exposed to direct sunlight z Locations with strong electromagnetic fields (near MRI machines, etc.) z Locations near heat sources such as a stove or heater z Location having a high oxygen concentration z Locations exposed to excessive amounts of water vapor or oil vapor z Locations that tend to be exposed to high temperatures or humidity, low temperatures or dry...

  • Page 11: Operation Procedures

    5 OPERATION PROCEDURES 1. Caster (Central locking system) z Lock the casters at all times except when moving the stretcher. Otherwise, the stretcher may move when transferring a patient to or from a bed, adjusting the height, or WARNING raising the backrest, causing an unexpected injury. z Do not stand on the caster lock pedals.

  • Page 12: Center Wheel System (Kk-728E Only)

    5 OPERATION PROCEDURES 2. Center wheel system (KK-728E only) „ Moving the center wheel located at the base center of the stretcher to be in contact with floor improves cornering, tracking, and allowing stable steering of the stretcher. The center wheel locking pedal...

  • Page 13: Height Adjustment

    3. Height adjustment „ The height of the stretcher can be adjusted with the height of a bed by operating the height adjusting handle. Height adjustment (Max. adjustable height: 34cm) z Turn the height adjusting handle clockwise to raise the stretcher and turn counterclockwise to lower it.

  • Page 14: Raising The Backrest

    5 OPERATION PROCEDURES 4. Raising the backrest „ The back section base angle can be adjusted at any degree from 0° to 70° using a lever. z When raising the backrest, be sure to lock the casters. Otherwise, the stretcher may move during operation, resulting in an injury.

  • Page 15: Transfer Board

    5. Transfer board „ Transfer boards can be used to protect a patient on the stretcher from falling off and also as a bridge between the stretcher and a bed when transferring a patient to/from a bed. They can be used as an arm table by locking them in the horizontal level position. z When patients are placed on the base of stretcher, secure them with the restraint belts (see p.
  • Page 16 5 OPERATION PROCEDURES 5. Transfer board „ To lock the transfer board in a horizontal level position (when using as an arm table) To lock the transfer board in a horizontal level position [Placing the transfer board in the horizontal level position from the up position and locking it in place] 1 Release the safety lock and lower the transfer board in a horizontal level position while lifting the lug.

  • Page 17: Restraint Belt

    z When operating the transfer board, prevent the tube (drain) from getting caught in part A in WARNING the figure to the left. If the tube (drain) gets caught, it may break. z Do not operate the transfer board while placing fingers on part A in the figure to the left.

  • Page 18: Oxygen Cylinder Holder

    5 OPERATION PROCEDURES 7. Oxygen cylinder holder „ The oxygen cylinder holder can contain a 500L (10cm to 11.5cm diameter) oxygen cylinder. „ The oxygen cylinder holder can be set either vertically or horizontally. (Initial setting is vertical.) Vertical setting Horizontal setting Vertical setting 1 Insert the oxygen cylinder holder into the attachment...
  • Page 19 Horizontal setting 1 As shown in the figure, hold the rotation stopper fitting with your hand to keep it in a horizontal position, then insert the oxygen cylinder holder into the attachment part to set horizontally. Insert the oxygen cylinder holder deeply while adjusting its angle so that the boss of the holder reaches deeply into the stopper.

  • Page 20: Pole (C57E)

    For an IV Pole to be directly mounted on the stretcher, use Transfer board only accessories approved by Paramount Bed. The use of products other than the specified suitable products or products from other companies could create unintended gaps, cause...
  • Page 21 2 Open the hooks at the tip when using the IV Pole. Hooks z The load capacity of each hook is 1kg. NOTE! z When using the IV Pole, do not put a hand or arm between the base or transfer board and the IV Pole.

  • Page 22: Accessory Rail

    5 OPERATION PROCEDURES 9. Accessory rail „ The stretcher is equipped with accessory rails under the transfer boards. Hooks (3K003355) can be attached to these rails and can be used to hang articles such as urine collection bags. „ Hooks can be attached in some different positions. Attach them according to the position or length of the tube.

  • Page 23: Patient Transfer

    To transfer a patient from a bed to the stretcher Side rail of the bed 1 1 Operate the center wheel locking pedal of the stretcher to set the lock to OFF (KK-728E only). 2 Lower the transfer board and the side rail of the bed.
  • Page 24 6 PATIENT TRANSFER 4 1 Roll the patient over to the opposite side of the z Fold the side part on the down side. stretcher. 2 Fold the side part of the transfer mattress on the down side. 3 Insert the transfer mattress under the patient’s back as deeply as possible.
  • Page 25 8 Move the stretcher. When transporting the stretcher, raise the center wheel locking pedal to switch it ON for more stable stretcher movement and easier control (KK-728E only). To move sideways, switch OFF the Center wheel center wheel (see p. 11).
  • Page 26 To transfer a patient from the stretcher to a bed 1 Depress the center wheel locking pedal of the Transfer board stretcher to switch it OFF (KK-728E only), place the Restraint belt stretcher by the bed, and lock the casters by pressing down the caster lock pedal (red) (see p.

  • Page 27: Product Symbol Definitions

    7 PRODUCT SYMBOL DEFINITIONS The symbols below are used for the stretcher. Symbol Description Symbol Description z Do not use the transfer z CE mark board as a support to stand up. z Warning and Caution z Do not transport a patient with the transfer board locked in the horizontal level position.

  • Page 28: Regular Inspection And Daily Maintenance

    If you notice an irregularity or want a detailed inspection, contact Paramount Bed or your distributor (see “Contact Information” on p. 30). If abnormal noise occurs during use, apply a lubricant (see the following illustration).
  • Page 29 8 REGULAR INSPECTION AND DAILY MAINTENANCE  Casters • There are not to be any abnormal sounds produced while the bed is being moved. • There is not to be any abnormal vibration occurring while the bed is being moved. •...

  • Page 30: Troubleshooting

    „ Problems may not always indicate faults. Check the following once again before requesting repair. If the problem persists after checking these points and performing corrective actions, stop using the stretcher immediately and contact Paramount Bed or your distributor (see “Contact Information” on p. 30).

  • Page 31: After-Sales Service

    1. When requesting repairs First check the items described in “9 TROUBLESHOOTING” on p. 29 in the instruction manual. If the problem persists, contact Paramount Bed or your distributor (see “Contact Information” as shown below). „ Details necessary when requesting repair z Product name, product number, product ID (Affixed on the outside of the main frame.
  • Page 32 [Translation of the original Instruction] Made by: Torindo Co., Ltd. 2020-12...
