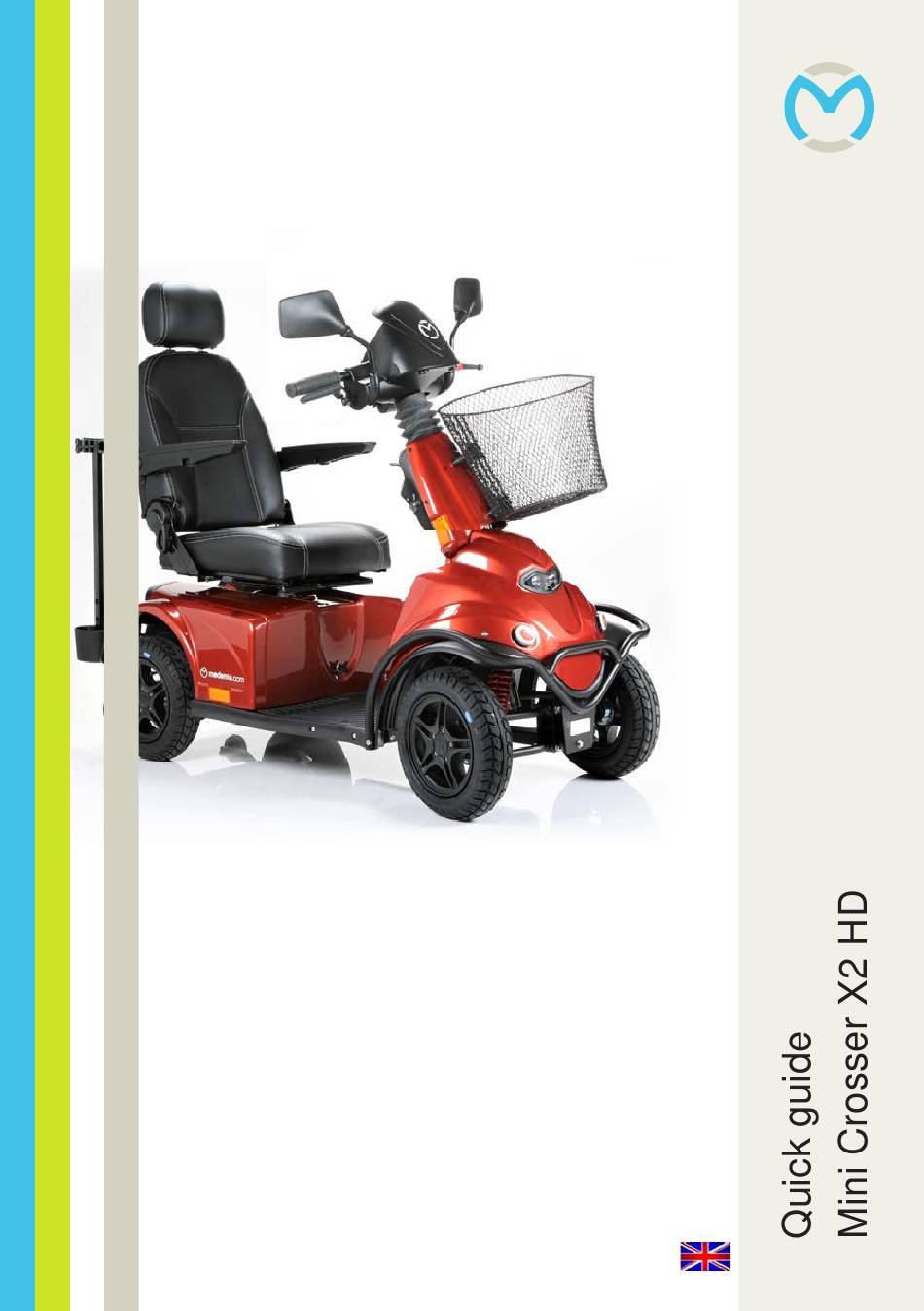

- Page 1 1533-2004-Q ver. 2.0.2 - 2024 - 10...
- Page 2 Medema A/S Medema A/S Enggårdvej 7 Snejbjerg DK-7400 Herning Denmark Telefon: 70 10 17 55 Mail: info@medema.com 2 of 24 Quick guide 1533-2004-Q Version 2.0.2/2024...
-
Page 3: Table Of Contents
Control panel .....................5 User menu ....................6 Steering column ..................10 Seat rotation ..................... 11 Seat height ....................11 Driving the Mini Crosser X2 HD ............12 Getting in and out .................12 When driving in traffic................13 Electromagnetic compatibility ...............13 Braking systems ..................14 Charging ....................15... -

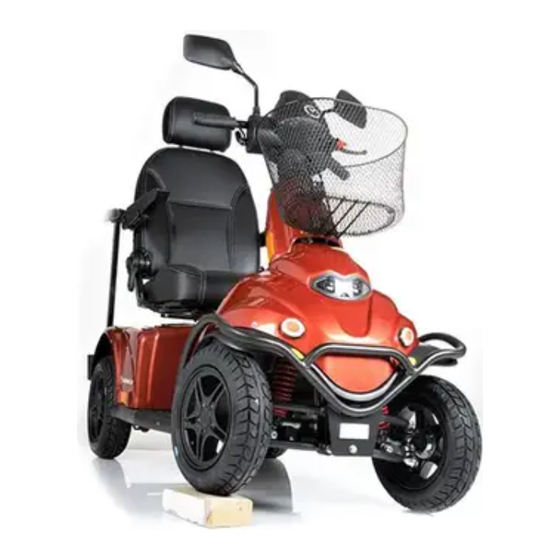

Page 4: Introduction
Medema A/S Introduction Congratulations on your new Mini Crosser X2 HD electric mobility scooter. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classification EN 12184. -
Page 5: Control Panel
Medema A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthorised opening, adjustment or modification of the control panel. Menu / information Actual speed Mileage Battery indicator... -
Page 6: User Menu
Medema A/S User menu Description Term Menu / information Press the button and a menu at the top of the display switches between ”Date”, ”Time”, ”Complete km”, ”Complete running time”, ”Battery Voltage” Service ”and” inclination ”.”Slope” is optional, and appears only if it is engaged. - Page 7 Medema A/S Description Term Trip meter TRIP button resets the trip meter. Can be used while driving. Hand brake Works on the left rear wheel and should only be used as extra brake / emergency brake and parking brake. It can be blocked in the locked position. Also available as a foot brake.
- Page 8 Medema A/S Description Term Indicator lights switch Arrow left: lamp left side. Arrow Right: lamp right side. Activate the same button again to turn off fl ashing lights. Horn Electric horn which can be programmed in volume in the User Menu. Activated by pressing the horn button. Charging socket Turn off the Mini Crosser (key in position 0) during charging.
- Page 9 Medema A/S Description Term Inclination Alarm sideways By exceeding the preset value, the symbol flashes and the horn hoots, if the parameter is enabled. Inclination Alarm forw./backw. By exceeding the preset value, the symbol illuminate and the horn hoots, if the parameter is enabled. Overheating step 1 Step 1: The symbol flashes and the speed is reduced to half power.
-
Page 10: Steering Column
Medema A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out. The height of the steering column can be adjusted approx. -
Page 11: Seat Rotation
Medema A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. Other seats that can be supplied for the Mini Crosser work on similar principles. -
Page 12: Driving The Mini Crosser X2 Hd
In general the following method should be followed: • Make sure that the Mini Crosser X2 HD is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently. -
Page 13: When Driving In Traffic
Medema A/S When driving in traffic... Be particularly aware of the following when driving in traffic: • The Mini Crosser is a low vehicle and not always easy for other road users to see. Make quite sure that other road users have seen you before driving onto the highway. -
Page 14: Braking Systems
Medema A/S Braking systems There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch. -
Page 15: Charging
Medema A/S Charging The Mini Crosser should be charged while not in use. The charger supplied from the factory switches to trickle charging (very low power consumption) automatically when the batteries are fully charged. You can therefore leave the charger connected until the Mini Crosser is next used. The charger cannot overcharge the batteries. -
Page 16: Serial Number
Medema A/S Serial number All vehicles have a serial number plate showing the year of production and serial number. The same serial number can also be found on page two of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc. -
Page 17: Specific Driving Situations
Medema A/S Specific driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle. Do not stop halfway, but reduce speed once the vehicle is up. - Page 18 Medema A/S Down a ramp/hill • Check that any ramp is stable. • Lean back. • Drive slowly down. Avoid stopping midway on short, steep slopes. On long hills, it is advisable to stop every now and again if you feel your speed is getting too high.
-
Page 19: Long Hills/Difficult Ground
Medema A/S Long hills/difficult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight. To protect the Mini Crosser motor from overheating, there is a built-in thermoswitch, which initially sets the Mini Crosser to half speed. -
Page 20: Serious Incident
Medema A/S Serious incident Any serious incident that occurs in connection with Mini Crosser must be reported to the manufacturer and the competent authority in the region of the country where the user and/or patient resides. 20 of 24 Quick guide 1533-2004-Q Version 2.0.2/2024... -
Page 21: Changes/Adjustments
Medema A/S Changes/adjustments Changes/adjustments made to the Mini Crosser scooter and MC Electric wheelchairs must be carried out in accordance to MDR. Original accessories for Mini Crosser or MC Electric wheelchairs, can be mounted on the main product and retain the CE marking. Non-original or 3rd party accessories: No changes may be made that affect the functionality or safety of the product. - Page 22 Medema A/S 22 of 24 Quick guide 1533-2004-Q Version 2.0.2/2024...
- Page 23 Medema A/S 23 of 24 Quick guide 1533-2004-Q Version 2.0.2/2024...
- Page 24 medemagroup...
