medemagroup Mini Crosser X2 HD User Manual

Hide thumbs Also See for Mini Crosser X2 HD:

Advertisement

Quick Links

Download this manual
medemagroup
GB
1533-2004-B ver. 2.0.3 - 2024 - 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini Crosser X2 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for medemagroup Mini Crosser X2 HD

Summary of Contents for medemagroup Mini Crosser X2 HD

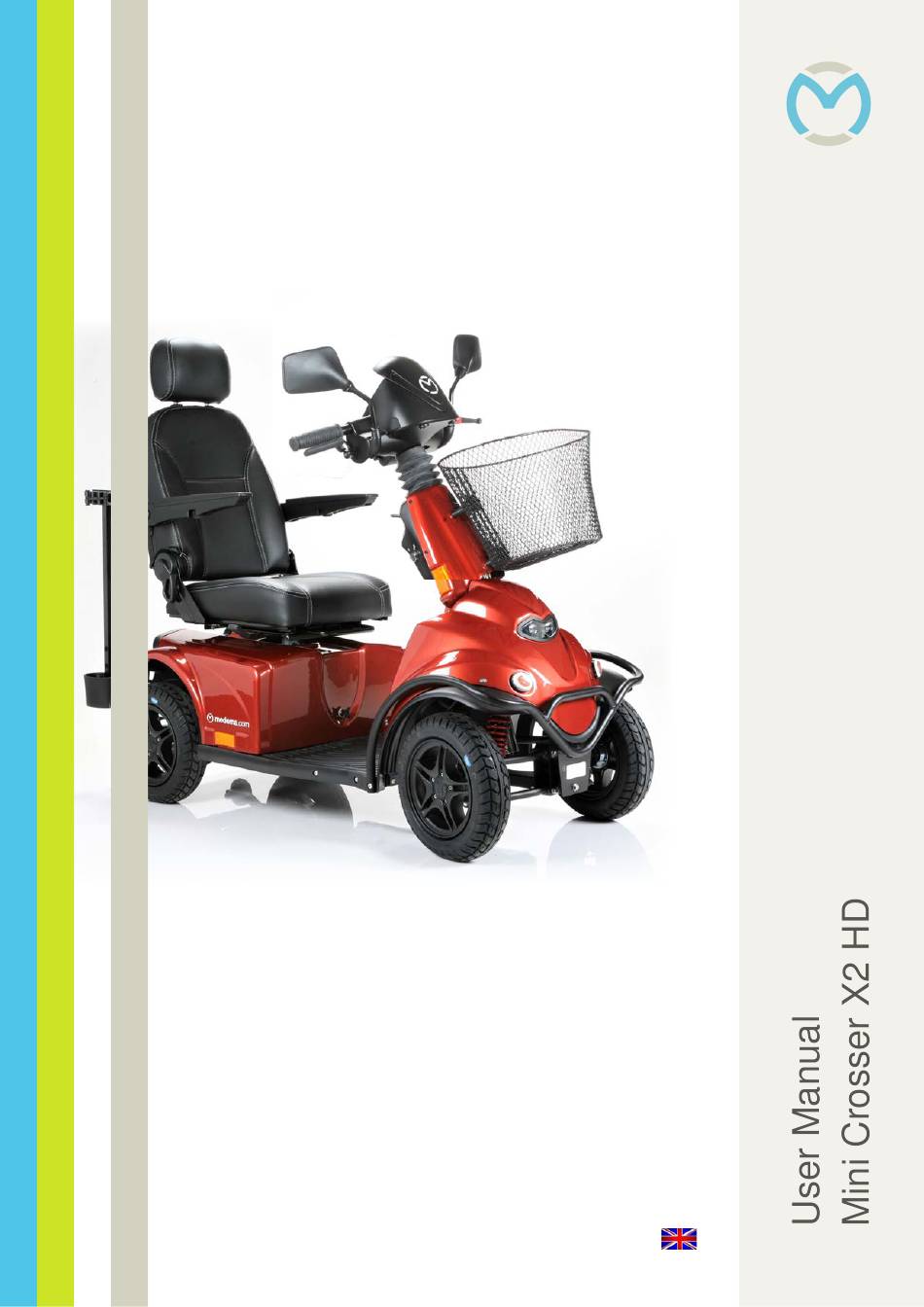

  • Page 1 1533-2004-B ver. 2.0.3 - 2024 - 10...
  • Page 2 Medema A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: Dealer: For this product You can expect to find the following documentation: • User manual • Service manual • Spare parts list • Presell information. Medema A/S Medema A/S Enggårdvej 7...

  • Page 3: Table Of Contents

    Electric seat adjustment ............19 Seat rotation ................20 Steering column ..............21 Serial number................. 22 Driving the Mini Crosser X2 HD .......... 23 Lap belt ................... 26 Electromagnetic compatibility ..........27 Specific driving situations ............ 28 Long hills/difficult ground ............ 30 Anti-tilt wheels / stabilisers ..........
  • Page 4 Medema A/S Basket on seatback ............... 55 Flame resistance ..............56 Troubleshooting ..............57 Programming ................. 60 Technical data ................ 61 Cassation ................64 Weight of the seats ..............65 Changes/adjustments ............66 Own notes ................67 User guide 1533-2004-B 4 of 68 Version 2.0.3 2024...

  • Page 5: Intended Occupant

    Medema A/S Intended occupant The intended occupant of the Mini Crosser X is a person with limited ability of walking themselves. The occupant must be able to see in order to register traffic sig- nals and other road users when driving in traffic. The occupant can be deaf and/or speechless.

  • Page 6: Symbols

    For safety reasons the vehicle must not be lent to persons who are not completely familiar with it. The vehicle is designed for one person only. The Mini Crosser X2 HD has been designed for users weighing max. 250 kg. Alarm...

  • Page 7: Serious Incident

    Medema A/S Serious incident Any serious incident that occurs in connection with Mini Crosser must be reported to the manufacturer and the competent au- thority in the region of the country where the user and/or patient resides. User guide 1533-2004-B 7 of 68 Version 2.0.3 2024...

  • Page 8: Introduction

    Manual carefully. As a new user, you should pay particular at- tention to the section entitled “Driving the Mini Crosser X2 HD”. The Mini Crosser X2 HD is designed for safe travel for at least 10 years, providing it has service and safety inspections every third year.

  • Page 9: Ec - Declaration Of Conformity

    Medema A/S EC - Declaration of conformity User guide 1533-2004-B 9 of 68 Version 2.0.3 2024...

  • Page 10: Medema A/S Warranty

    Medema A/S Medema A/S Warranty There is a 2-year warranty, with the exception of worn parts such as tires, hoses, fuses, light bulbs, bushings and brake pads. If you want to make a claim for a part under the warranty, it must be intact.

  • Page 11: Control Panel

    Medema A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthor- ised opening, adjustment or modification of the control panel. Menu / information Actual speed Mileage...

  • Page 12: User Menu

    Medema A/S User menu Term Description Menu / information Press the button and a menu at the top of the display switches between ”Date”, ”Time”, ”Complete km”, ”Complete running time”, ”Battery Voltage” Service ”and” inclination ”.”Slope” is optional, and appears only if it is engaged.
  • Page 13 Medema A/S Term Description Accelerator Front arm activates slowly and the Mini Crosser will start running forward. The more press, the faster it will run. When the lever is released, the arm flips itself back to the starting position and Mini Crosser stops. Upon activation of the posterior arm, the Mini Crosser run backward.
  • Page 14 Medema A/S Term Description Extras Anti-theft alarm (Extra) With this parameter set to ON, the anti-theft alarm is turned on every time you turn off the Mini Crosser. An activated alarm is turned off by turning the key to 1 (drive). If you have no opportunity to get to the Mini Crosser with the key, the alarm will stop after approx.

  • Page 15: Programming The User Menu

    Medema A/S Programming the User Menu Access the menu by holding the Menu/information button for approx. 3 sec. Scroll up and down with the + / -button under the display. The active parameter is highlighted with yellow writing and blue background. Access the value of the selected param- eter by pressing Enter.
  • Page 16 Medema A/S Parameter description Set time and date using the up / down with arrows. Moving Clock to the next digit by pressing the ”next” button. Quit with the ”Enter” Hazard enabled By default hazard (emergency lights) is operable even if the (On/Off) Mini Crosser is switched off and the key is removed.

  • Page 17: Preparations / Adjustments Prior To Use

    Medema A/S Preparations / Adjustments prior to use Adjusting the height of the seat Lift both armrests up, and fold the seatback. Release the handle so the seat can turn. Turn a little and lift the seat off. Make sure you keep your back straight when lifting the seat, which is very heavy.
  • Page 18 Medema A/S Hight adjustment seat post standard Loosen the counter nut. Use spanner, 17 mm. Adjust the seat post to the desired position. The seat post is marked with a ring at each centimetre. Be aware that the black line is holding its position after movement, so the seat is straight in front of the steering.

  • Page 19: Electric Seat Adjustment

    Medema A/S Seat tube Release Seat tube in top position. There are five holes for adjusting the seat tube. The release must be in a hole for the seat to be stable. Electric seat adjustment The Mini Crosser can be fitted with electric seat adjustment as an optional extra.

  • Page 20: Seat Rotation

    Medema A/S IMPORTANT! The Mini Crosser is most stable when the seat is in its lowest position. Always drive carefully when the seat is raised. Never use the seat adjustment when driving on an uneven surface or in hilly terrain. Take extra care when lowering the seat on a Mini Crosser using electric seat adjustment.

  • Page 21: Steering Column

    Medema A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column for- ward to make it easier to get out. The height of the steering column can be adjusted approx.

  • Page 22: Serial Number

    Medema A/S Serial number All vehicles have a serial number plate showing the year of pro- duction and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servic- ing, spare parts, etc.

  • Page 23: Driving The Mini Crosser X2 Hd

    It is important to learn a safe technique for getting in and out of the Mini Crosser. In general the following method should be followed: Make sure that the Mini Crosser X2 HD is off (switch turned to 0) • when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently.

  • Page 24: General Safety Advice

    Medema A/S General safety advice Make sure that the backrest is upright and the seat is as low as possible. Positioning belts are recommended if the user is unable to maintain a good driving posture independently. Adjust your driving to road conditions. Take light, traffic and weather into account.
  • Page 25 Medema A/S Driving Even though the Mini Crosser is very stable, it can tip over. Avoid sudden changes of speed and direction when travelling at high speed, on poor surfaces and, not least, on slopes. So be extra careful in following the driving tips given below. Anti-tilt wheels are recommended for driving in very hilly terrain.

  • Page 26: Traffic Regulations

    Medema A/S Traffic regulations The traffic legislation for Mini Crossers varies from country to country. Before starting to use the vehicle outdoors, it is the user’s responsibility to familiarise him/herself with the relevant legislation. Lap belt If there is a need for it you can, as an accessory, mount a lap belt or harness belt on MC 1124.

  • Page 27: Electromagnetic Compatibility

    Medema A/S Electromagnetic compatibility The Mini Crosser satisfies the requirements for the use of Mini Crossers in an environment with electromagnetic noise. There may, however, be rare situations in which electromagnetic noise can affect the Mini Crosser. Sources of such noise include radio and television stations and amateur radio transmitters.

  • Page 28: Specific Driving Situations

    Medema A/S Specific driving situations Up kerbs Stop at right angles to the kerbstone about 5-10 cm away from it. • Keep an eye on other road users. Lean forwards. • Accelerate moderately so that your vehicle can overcome the •...
  • Page 29 Medema A/S Up a ramp/hill There is a risk of tipping over backwards if the seat is pushed • back when you start driving up a slope, e.g. a ramp. Pull the seat forward! Check that any ramp is stable. •...

  • Page 30: Long Hills/Difficult Ground

    Medema A/S Across a slope • Lean into the slope. Avoid sudden and sharp movements. This is particularly relevant • when reversing. Always drive at low speed. • Long hills/difficult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight.

  • Page 31: Anti-Tilt Wheels / Stabilisers

    Medema A/S Anti-tilt wheels / stabilisers The Mini Crosser is a very stable vehicle. HOWEVER, in the case of incorrect weight distribution or careless driving there is a risk of tipping over. We therefore recommend fitting anti-tilt wheels in such circum- stances.

  • Page 32: General Care And Maintenance

    Medema A/S General care and maintenance A Mini Crosser X2 HD does not require much maintenance. It should be kept in a generally good condition, however. The fol- lowing should be checked regularly: Tyre pressure (if pneumatic tyres are fitted) •...

  • Page 33: Insurance

    (For further information see the Service Manual.) Insurance In the eyes of the law a Mini Crosser X2 HD with a maximum speed of 15 km/h is a cycle, so separate insurance is not re- quired.

  • Page 34: Batteries

    Medema A/S Batteries The Mini Crosser uses sealed, maintenance-free GEL or AGM batteries. They do not generate gas and do not have to be topped up with water. Battery weight 56 Ah = 21 kg 85 Ah = 27 kg It is important to fit the batteries correctly.

  • Page 35: Storage/Charging

    Medema A/S Storage/Charging The Mini Crosser is designed for use in all types of weather. However, storage and charging should take place under a roof, alternatively under tarpaulin. The batteries are best charged at +10 to + 30 °. At colder tem- peratures, capacity decreases, and thus driving distance.
  • Page 36 Medema A/S The battery manufacturer recommends that the batteries are charged at a temperature of + 10° to +30° C in order to achieve a charging time as specified in the section Technical data. The battery capacity is approx. half at -10 ° C compared to the capacity at + 20 °...

  • Page 37: Battery Disposal

    Medema A/S The charger will flash until it is finished. Then the indicator on the charger will be constantly lit. Connecting the charger Connect the plug to the wall socket Connect the charging plug to the 3-pin socket on the steering column. The charging socket is located under the protective cover.

  • Page 38: Standby Power

    Medema A/S Standby power The X2 Mini Crosser is equipped with an advanced display so- lution. The system requires that there is always a small standby power consumption of 70 mA. If you do not make sure that the Mini Crosser is set to charge at appropriate intervals, the batteries will fully discharge over time.

  • Page 39: Changing The Wheels

    Medema A/S Changing the wheels If you get a puncture in one of the pneumatic tyres or if a tyre is so badly worn that it needs to be replaced, follow the instruc- tions below. Tyres and inner tubes can be purchased from the authorised dealer who supplied the Mini Crosser.
  • Page 40 Medema A/S Remove the flange with the 5 screws (5 mm Allen key). Replace or patch the tube. Ensure that there are no foreign objects in the tyre before the tube is re- placed. Pump air into the tube so that it is positioned cor- rectly in the tyre, but do not fill it up completely yet.

  • Page 41: Fuses

    Medema A/S Fuses The Mini Crosser has the following protection systems: As a safeguard against overheating There are two switches • are integrated in the engine. By incipient overheating speed is reduced to half power, and by prolonged overheating the Mini Crosser will stop.

  • Page 42: Brakes

    Medema A/S Brakes There are four braking systems on the Mini Crosser: Motor brake - adjusts vehicle speed also when going downhill. • • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch.

  • Page 43: Disengagement

    Medema A/S Disengagement Manual The manual disengagement lever is placed underneath the back cover. Follow this procedure to use it. • Turn the key to (0) position. Push the disengagement lever down. • The motor brake is now disengaged and the vehicle can be pushed or towed, but not drive itself.

  • Page 44: Transporting By Motor Vehicle

    Medema A/S Electronic disengagement. Works only when the scooter is turned on. Disengagement button. Transporting by motor vehicle The Mini Crosser must always be restrained and the handbrake locked during transport in a motor vehicle or trailer. Avoid lifting by the seat, covers, handlebars and armrests If you just need to lift the Mini Crosser slightly, take hold of it between the rear lights and by the front bumper.

  • Page 45: Securing To Vehicle Floor With Belts

    Medema A/S Securing to vehicle floor with belts Dahl Engineering belt set for securing in motor vehicles. ALWAYS use four belts at the back and two at the front. The belts must always be attached to approved fittings in the vehicle and the four eyes welded to the Mini Crosser.
  • Page 46 Medema A/S Centre line User guide 1533-2004-B 46 of 68 Version 2.0.3 2024...
  • Page 47 Medema A/S For transport in an estate car, the seat can be folded and the han- dlebar folded down. This reduces the maximum height to 69 cm. The Mini Crosser can be used as a seat during transport in a van or bus, provided it is securely anchored to the vehicle with approved four-point belts attached to the restraint points pro- vided on the Mini Crosser.

  • Page 48: Transporting By Plane

    Medema A/S Transporting by plane If the Mini Crosser is to be transported by plane, the airlines require: the batteries to be flight-approved • • the air to be let out of the tyres the battery leads to be disconnected (not always, but frequently) •...

  • Page 49: Dimensioned Drawing, Mini Crosser X2 Hd

    Medema A/S Dimensioned drawing, Mini Crosser X2 HD X2 HD: 400 mm X2 HD+: 320 mm 1030 mm 1400 mm M2 HD+ : Equipped with extra large batteries, the foots pace will be reduced. User guide 1533-2004-B 49 of 68...

  • Page 50: Introduction To The Ergo2 Seat

    Medema A/S Introduction to the Ergo2 seat The Ergo2 seat is designed to stay safe to use for at least 10 years. Lever for rotating the seat The lever must be pulled back to rotate the seat. The seat can then be rotated to each side, locking at each 45°.
  • Page 51 Medema A/S Mount the seat again In order to ensure that the seat returns to the correct po- sition, the lever for rotating the seat must be released in order to place the seat. Lever for fwd/bw adjustment of the seat. Pull the lever up to release the seat on the slide rail.
  • Page 52 Medema A/S Width adjustment of armrest Each armrest can be adjusted 25 mm on each side. Loosen the Allen screw and the armrest can be adjusted longitudinally. Adjusting the angle of the armrests The adjustment screw makes it possible for the armrest to be adjusted 60°.
  • Page 53 Medema A/S Backrest tilted 90° forward. This is why the seat does not necessarily need to be re- moved during transport, e.g. in a car. Backrest forward / back. Loosen the specified screws on both sides. The depth of the seat can now be adjusted by sliding the seatback forward and back.

  • Page 54: Basket In Front

    Medema A/S Height adjustment of headrest. Press the button and the headrest can be raised and lowered as needed. Adjustment of the headrest forward and backward. The headrest can be tilted forward and backward as needed. Basket in front Mount the basket on the brackets (Click on) and now it is ready for use.

  • Page 55: Basket On Seatback

    Medema A/S Basket on seatback Mounting of basket on the seat. (Optional accessory) Complete mounting kit for basket. Two brackets and four Allen screws. Unzip the zipper and position the brackets in front of the two predrilled holes. Mount the basket on the brackets and now it is ready for use.

  • Page 56: Flame Resistance

    Medema A/S Flame resistance The Mini Crosser seat’s flame resistance has been tested in accordance with DS/EN 1021-2:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 2: Ignition source match flame equivalent. Warning! The seat may become very hot if exposed to direct sunlight. Similarly, the seat will become very cold if it is exposed to cold temperatures, e.g., frost.

  • Page 57: Troubleshooting

    Medema A/S Troubleshooting The following is a list of various problems that, in our experi- ence, may occur. The list gives possible causes and remedies. Problem Possible causes Remedy The user panel is Printed circuit boards in The X2 head needs to be completely black, even the user panel is damaged.
  • Page 58 Medema A/S Problem Possible causes Remedy Turn off the Mini Crosser Mini Crosser drives Can be caused by poor unevenly, choppy while connection of electricity. immediately and seek out an authorised workshop. If driving. you continue driving, heat can be generated in the poor connection resulting in a risk of fire.
  • Page 59 Medema A/S Problem Possible causes Remedy Thermometer symbol is The motor is overheat- Immediately pull over at a half-red and flashes. The ing and has reached the safe distance from other limit of when the first safety traffic and stop the Mini Mini Crosser is running at switch responds.

  • Page 60: Programming

    Medema A/S Lamps Causes Remedy Stop the unit and wait 3-5 minutes 6 lamps The S200 is prevented from driving. Inhibit 2 is active. This before restarting. Turn the key to may be due to the battery 0 and then to 1 to reset the fault. charger being connected, the plug to the thermal switches Contact supplier.

  • Page 61: Technical Data

    Medema A/S Technical data Technical data X2 HD General information: Transport height without seat (Steering column folded 70 cm down) Total length: 140 cm Total length incl. anti-tilt wheel: 148 cm Total width: 66 cm Total weight incl. batteries and Ergo2 Std seat. (45 cm) 169,5 kg Weight without seat (Ergo Standard 45 cm).
  • Page 62 Medema A/S Technical data X2 HD 2,8 bar 1503-1003 Wheel, model-X, 2,50-3,30-8”.complete with rim and tyre. 2,8 bar 1503-1008 Wheel model-X 2,50-3,70-8” Outw. Ø326 mm w/spikes 2,5 bar 1503-1012 3,50-8” ext. Ø370 mm Wheel, model X Used only as rear wheels and never with 15 km transaxle Classification, ISO Klasse C Seats:...
  • Page 63 Medema A/S Technical data X2 HD Battery weight pr. stk. 56 Ah 21 kg 85 Ah 27 kg Energy consumption in kWh, when charging from “empty”. 56 Ah 85 Ah Ca. 1,5 kWh Ca. 1,5 kWh Charger, 24 V DC 56 Ah 6 - 10 A 85 Ah...

  • Page 64: Cassation

    Medema A/S Cassation The Mini Crosser or parts (fx. batteries) af the Mini Crosser can, for a fee, be taken to the nearest dealer for disposal in accord- ance with current environmental regulations. User guide 1533-2004-B 64 of 68 Version 2.0.3 2024...

  • Page 65: Weight Of The Seats

    Medema A/S Weight of the seats This is our standard Ergo2 45 cm seat, the heaviest part of the X2 HD to remove. The label showing the seat’s weight is located as shown above. Seat model Weight Eblo seat 45 cm 19 kg Ergo2 seat 35 cm 20 kg...

  • Page 66: Changes/Adjustments

    Medema A/S Changes/adjustments Changes/adjustments made to the Mini Crosser scooter and MC Electric wheelchairs must be carried out in accordance to MDR. Original accessories for Mini Crosser or MC Electric wheel- chairs, can be mounted on the main product and retain the CE marking.

  • Page 67: Own Notes

    Medema A/S Own notes User guide 1533-2004-B 67 of 68 Version 2.0.3 2024...
  • Page 68 medemagroup...
