Summary of Contents for medemagroup Mini Crosser X2 4W Cabin

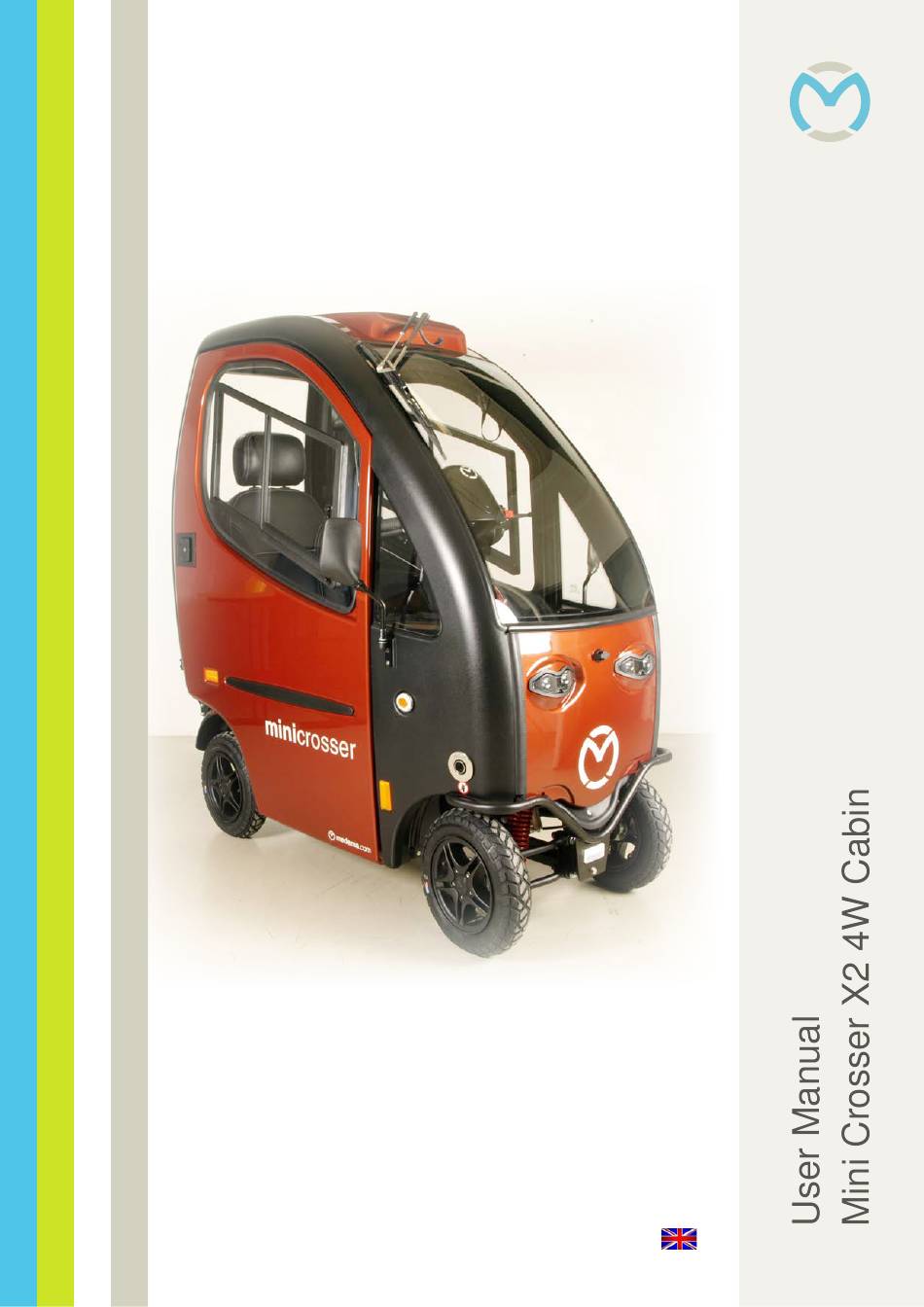

- Page 1 1533-2006-B ver. 1.0.2 - Juni 2020...
- Page 2 Medema Production A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: User guide 1533-2006-B 2 of 68 Version 1.0.2/2020...
-
Page 3: Table Of Contents
Medema Production A/S Contents Symbols.................. 5 Warning! ................. 5 Alarm ..................5 Contagion! ................5 Intended occupant ..............6 Help for the visually impaired ..........6 FSN (Field Safety Notice) ............6 Introduction ................7 Declaration of conformity ............. 8 Control panel ................. - Page 4 Medema Production A/S Introduction to the Ergo2 seat ..........52 Basket on the back of the cabin........... 57 Troubleshooting ..............58 Electronic faults..............60 Programming ................. 61 Technical data ................ 61 Weight of the seats ..............64 Own notes ................66 User guide 1533-2006-B 4 of 68 Version 1.0.2/2020...
-
Page 5: Symbols
Medema Production A/S Symbols Used in the manual to indicate sections describing situations where extra care is required owing to the risk of personal injury. Used to indicate sections on electromagnetic compatibility (EMC). Warning! For safety reasons the vehicle must not be lent to persons who are not completely familiar with it. -
Page 6: Intended Occupant
Medema Production A/S Intended occupant The intended occupant of the Mini Crosser X is a person with limited ability of walking themselves. The occupant must be able to see in order to register traffic sig- nals and other road users when driving in traffic. The occupant can be deaf and/or speechless. -
Page 7: Introduction

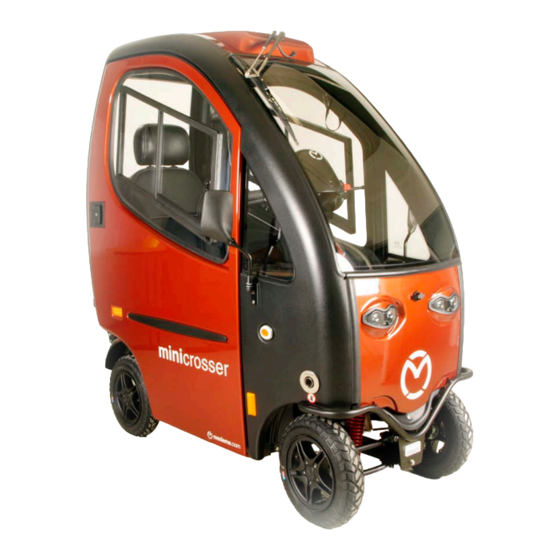

Medema Production A/S Introduction Congratulations on your new Mini Crosser X2 4W Cabin electric mobility scooter. You have now taken possession of an electric mobility Mini Crosser developed for outdoor driving by active users. It is what is called a Class C vehicle in according to the European stand- ard EN 12184. -
Page 8: Declaration Of Conformity
Medema Production A/S Declaration of conformity Model: Mini Crosser X2 CAB Medema-A/S declares on our sole responsibility that the product range mentioned below are manufactured in accordance with our incorporated standards and are in conformity with the following direc- tives and standards if they are used according to our instructions: Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices. -
Page 9: Control Panel
Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthor- ised opening, adjustment or modification of the control panel. Menu / information Actual speed Mileage... -
Page 10: User Menu
Medema Production A/S User menu Term Description Menu / information Press the button and a menu at the top of the display switches between ”Date”, ”Time”, ”Complete km”, ”Complete running time”, ”Battery Voltage” Service ”and” inclination ”.”Slope” is optional, and appears only if it is engaged. - Page 11 Medema Production A/S Term Description Accelerator Front arm activates slowly and the Mini Crosser will start running forward. The more press, the faster it will run. When the lever is released, the arm fl ips itself back to the starting position and Mini Crosser stops. Upon activation of the posterior arm, the Mini Crosser run backward.
- Page 12 Medema Production A/S Term Description Extras Anti-theft alarm (Extra) With this parameter set to ON, the anti-theft alarm is turned on every time you turn off the Mini Crosser. An activated alarm is turned off by turning the key to 1 (drive). If you have no opportunity to get to the Mini Crosser with the key, the alarm will stop after approx.
-
Page 13: Programming The User Menu
Medema Production A/S Programming the User Menu Access the menu by holding the Menu/information button for approx. 3 sec. Scroll up and down with the + / -button under the display. The active parameter is highlighted with yellow writing and blue background. Access the value of the selected param- eter by pressing Enter. - Page 14 Medema Production A/S Parameter description Clock Set time and date using the up / down with arrows. Moving to the next digit by pressing the ”next” button. Quit with the ”Enter” Hazard enabled By default hazard (emergency lights) is operable even if the (On/Off) scooter is switched off and the key is removed.
-
Page 15: Preparations / Adjustments Prior To Use
Medema Production A/S Preparations / Adjustments prior to use Adjusting the height of the seat Lift both armrests up, and fold the seatback. Release the handle so the seat can turn. Turn a little and lift the seat off. Make sure you keep your back straight when lifting the seat, which is very heavy. - Page 16 Medema Production A/S Hight adjustment seat post standard Loosen the counter nut. Use spanner, 17 mm. Adjust the seat post to the desired position. The seat post is marked with a ring at each centimetre. Be aware that the black line is holding its position after movement, so the seat is straight in front of the steering.
-
Page 17: Electric Seat Adjustment
Medema Production A/S Seat tube Release Seat tube in top position. There are five holes for adjusting the seat tube. The release must be in a hole for the seat to be stable. Electric seat adjustment The Mini Crosser can be fitted with electric seat adjustment as an optional extra. -
Page 18: Seat Rotation
Medema Production A/S IMPORTANT! The Mini Crosser is most stable when the seat is in its lowest position. Always drive carefully when the seat is raised. Never use the seat adjustment when driving on an uneven surface or in hilly terrain. Take extra care when lowering the seat on a Mini Crosser using electric seat adjustment. -
Page 19: Steering Column
Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column for- ward to make it easier to get out. The height of the steering column can be adjusted approx. -
Page 20: Serial Number
Medema Production A/S Serial number All vehicles have a serial number plate showing the year of pro- duction and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servic- ing, spare parts, etc. -
Page 21: Driving The Mini Crosser X2 Cabin
Medema Production A/S Driving the Mini Crosser X2 Cabin Getting in and out It is important to learn a safe technique for getting in and out of the Mini Crosser. In general the following method should be followed: • Make sure that the Mini Crosser X2 Cabin is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently. - Page 22 Medema Production A/S General safety advice Make sure that the backrest is upright and the seat is as low as possible. Positioning belts are recommended if the user is unable to maintain a good driving posture independently. Adjust your driving to road conditions. Take light, traffic and weather into account.
- Page 23 Medema Production A/S Driving Even though the Mini Crosser is very stable, it can tip over. Avoid sudden changes of speed and direction when travelling at high speed, on poor surfaces and, not least, on slopes. So be extra careful in following the driving tips given below. Anti-tilt wheels are recommended for driving in very hilly terrain.
-
Page 24: Lap Belt
Medema Production A/S Traffic regulations The traffic legislation for Mini Crossers varies from country to country. Before starting to use the vehicle outdoors, it is the user’s responsibility to familiarise him/herself with the relevant legislation. Lap belt If there is a need for it you can, as an accessory, mount a lap belt or harness belt on MC 1124. - Page 25 Medema Production A/S Electromagnetic compatibility The Mini Crosser is EMC tested according to EN 60601-1-2 and meets the requirements for Mini Crosser used in an environ- ment with electromagnetic noise. There may, however, be rare situations in which electromagnetic noise can affect the Mini Crosser.
-
Page 26: Specific Driving Situations
Medema Production A/S Specific driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle. - Page 27 Medema Production A/S Up a ramp/hill • There is a risk of tipping over backwards if the seat is pushed back when you start driving up a slope, e.g. a ramp. • Pull the seat forward! Check that any ramp is stable. •...
-
Page 28: Long Hills/Difficult Ground
Medema Production A/S Across a slope • Lean into the slope. • Avoid sudden and sharp movements. This is particularly relevant when reversing. • Always drive at low speed. Long hills/difficult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight. -
Page 29: Anti-Tilt Wheels / Stabilisers
Medema Production A/S Anti-tilt wheels / stabilisers The Mini Crosser is a very stable vehicle. HOWEVER, in the case of incorrect weight distribution or careless driving there is a risk of tipping over. We therefore recommend fitting anti-tilt wheels in such circum- stances. -
Page 30: General Care And Maintenance
Medema Production A/S General care and maintenance A Mini Crosser X2 Cabin does not require much maintenance. It should be kept in a generally good condition, however. The following should be checked regularly: • Tyre pressure (if pneumatic tyres are fitted) •... -
Page 31: Insurance
(For further information see the Service Manual.) Insurance In the eyes of the law a Mini Crosser X2 4W Cabin with a maxi- mum speed of 15 km/h is a cycle, so separate insurance is not required. -
Page 32: Batteries
Medema Production A/S Batteries The Mini Crosser uses sealed, maintenance-free GEL or AGM batteries. They do not generate gas and do not have to be topped up with water. Battery weight 56 Ah = 21 kg 80 Ah = 26 kg 110 Ah = 38 kg Charging Please NOTE that the Mini Crosser can be equipped with sev-... -
Page 33: Battery Disposal
Medema Production A/S The charging time will be extended by approximately 60% at a temperature of +5° C compared to a temperature of +20° C. This is because it is chemically more difficult for the battery to absorb the current. It is recommended to charge the Mini Crosser in a heated room. -
Page 34: Standby Power
Medema Production A/S Standby power The X2 Mini Crosser is equipped with an advanced display so- lution. The system requires that there is always a small standby power consumption of 70 mA. If you do not make sure that the Mini Crosser is set to charge at appropriate intervals, the batteries will fully discharge over time. - Page 35 Medema Production A/S It is important to fit the batteries correctly. The battery terminals are marked +/-. They must be fitted as shown in the sketch be- low. Make sure that the terminals are properly tightend. For the same reason there must not be any burrs on the cable terminals. Be aware that the Mini Crosser can varies types of chargers.
-
Page 36: Storage
Medema Production A/S Storage The Mini Crosser should be stored and charged under cover preferably at temperatures above 0°C. Note! The charger must be kept dry, but should not be covered when in use. In the case of long-term storage we recommend covering the Mini Crosser to protect it from dust, rain and sunlight. -
Page 37: Fuel For Heater
Medema Production A/S Fuel for heater The tank for fuel is placed behind the seat, and filled from the outside. Use ONLY paraffin or diesel. In the front, right side of the Mini Crosser X2 Cabin, you find the the exhaustion from the heater. -
Page 38: Windscreen Wiper / Washer
Medema Production A/S IMPORTANT! The heating ribs by the window and by the legs should NOT be covered up when the heating is on. That will cause overheating of the heater Windscreen wiper / washer Start the windscreen wiper by turning this knob. -
Page 39: Replacing The Wiper Blade
Medema Production A/S Replacing the wiper blade To exchange the wiper blade, do the following: Screw this screw out. Lift carefully, so you can pull the wiper blade over the pin. Mount a new in reverse order. Replacing the bulb - headlight Open the front cover, by turn- ing the handle 90°... - Page 40 Medema Production A/S Remove the headlight. De- tach the plug, and it is free to change. New headlight set. Mount in reverse order. The headlight can be adjust- ed up/down by turning this screw. NOTE! Be aware that drain list are not trapped when the front cover is closed.
-
Page 41: Changing The Wheels
Medema Production A/S Changing the wheels If you get a puncture in one of the pneumatic tyres or if a tyre is so badly worn that it needs to be replaced, follow the instruc- tions below. Tyres and inner tubes can be purchased from the authorised dealer who supplied the Mini Crosser. - Page 42 Medema Production A/S Remove the flange with the 5 screws (5 mm Allen key). Replace or patch the tube. Ensure that there are no foreign objects in the tyre before the tube is re- placed. Pump air into the tube so that it is positioned cor- rectly in the tyre, but do not fill it up completely yet.
-
Page 43: Fuses
Medema Production A/S Fuses The Mini Crosser has the following protection systems: • As a safeguard against overheating There are two switches are integrated in the engine. By incipient overheating speed is re- duced to half power, and by prolonged overheating the scooter will stop. - Page 44 Medema Production A/S Open the front cover, by turn- ing the handle 90° counter clockwise, and pull. Under the front cover you will find the fuse for the heater and windscreen wiper. Fuse for windscreen wiper. Fuse for heater. Fuse for Easy Start Select display NOTE! Be aware that drain list are not trapped when the front...
-
Page 45: Brakes
Medema Production A/S Brakes There are four braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch. -
Page 46: Disengagement
Medema Production A/S Disengagement Manual The manual disengagement lever is placed underneath the back cover. Follow this procedure to use it. • Turn the key to (0) position. • Push the disengagement lever down. The motor brake is now disengaged and the vehicle can be pushed or towed, but not drive itself. - Page 47 Medema Production A/S Electronic disengagement. Works only when the scooter is turned on. Disengagement button. User guide 1533-2006-B 47 of 68 Version 1.0.2/2020...
-
Page 48: Securing To Vehicle Floor With Belts
Medema Production A/S Securing to vehicle floor with belts Dahl Engineering belt set for securing in motor vehicles. ALWAYS use four belts at the back and two at the front. The belts must always be attached to approved fittings in the vehicle and the four eyes welded to the Mini Crosser. - Page 49 Medema Production A/S Attachment point Attachment point Greater than the anchorage points on the Greater than scooter the anchorage Centre line points on the scooter Remember to turn the Mini Crosser off during transport. Turn the key to 0. However, if at all possible, we recommend that the user occu- pies one of the seats in the motor vehicle.
-
Page 50: Transporting By Plane
Medema Production A/S Transporting by plane If the Mini Crosser is to be transported by plane, the airlines require: • the batteries to be flight-approved • the air to be let out of the tyres • the battery leads to be disconnected (not always, but frequently) The seat and cover have to be removed to disconnect the bat- tery leads. -
Page 51: Dimensioned Drawing, Mini Crosser X2 4W
Medema Production A/S Dimensioned drawing, Mini Crosser X2 4W 1030 mm 1610 mm User guide 1533-2006-B 51 of 68 Version 1.0.2/2020... -
Page 52: Introduction To The Ergo2 Seat
Medema Production A/S Introduction to the Ergo2 seat The Ergo2 seat is designed to stay safe to use for at least 10 years. Lever for rotating the seat The lever must be pulled back to rotate the seat. The seat can then be rotated to each side, locking at each 45°. - Page 53 Medema Production A/S Mount the seat again In order to ensure that the seat returns to the correct po- sition, the lever for rotating the seat must be released in order to place the seat. Lever for fwd/bw adjustment of the seat. Pull the lever up to release the seat on the slide rail.
- Page 54 Medema Production A/S Width adjustment of armrest Each armrest can be adjusted 25 mm on each side. Loosen the Allen screw and the armrest can be adjusted longitudinally. Adjusting the angle of the armrests The adjustment screw makes it possible for the armrest to be adjusted 60°.
- Page 55 Medema Production A/S Backrest tilted 90° forward. This is why the seat does not necessarily need to be re- moved during transport, e.g. in a car. Backrest forward / back. Loosen the specified screws on both sides. The depth of the seat can now be adjusted by sliding the seatback forward and back.
- Page 56 Medema Production A/S Height adjustment of headrest. Press the button and the headrest can be raised and lowered as needed. Adjustment of the headrest forward and backward. The headrest can be tilted forward and backward as needed. User guide 1533-2006-B 56 of 68 Version 1.0.2/2020...
-
Page 57: Basket On The Back Of The Cabin
Medema Production A/S Basket on the back of the cabin Mounting of basket on the cabin. (Optional accessory) The basket with the mounting bracket. You have to adjust the width by loosening the four screws - pull or push untill the width fits. -
Page 58: Troubleshooting
Medema Production A/S Troubleshooting The following is a list of various problems that, in our experi- ence, may occur. The list gives possible causes and remedies. Problem Possible causes Remedy The Mini Crosser will not The key has not been Turn the key and wait 5 turned to start. - Page 59 Medema Production A/S Problem Possible causes Remedy The “ready” lamp on the There has been a power Reconnect the charger charger does not light up cut. and repeat the charging even though the charger process. has been on for 10-12 The charger is doing a Check again half an hour hours.
-
Page 60: Electronic Faults
Medema Production A/S Electronic faults If there is an electronic fault, a number of lamps in the bat- tery indicator will light up. The following table shows what they mean. Lamps Causes Remedy 1 lamp The batteries need charging or Check all connections between the connection to a battery is the controller and batteries. -
Page 61: Programming
Medema Production A/S Programming NOTE! For safety reasons, modifications may only be made by trained personnel, such as Mini Crosser service engineers and consultants or authorised service personnel at mobility centres, etc. Technical data Technical data X2 Cabin General information: Transport height without seat (Steering column folded 161,5 cm down) - Page 62 Medema Production A/S Technical data X2 Cabin 1503-1115 4,1 bar 13x5.00-6” ext. Ø325 mm Wheel Norway black w/spikes - T, E, Nordic, MaxX, MaxX HD, M and X 1503-1336 3,5 bar 13x3.00-8” ext. Ø340 mm Wheel black - T, M and X 1503-1273 13x3.00-8”...
- Page 63 Medema Production A/S Technical data X2 Cabin Max battery meassure i cm. 56 Ah 26,5 x 17 x 23 85 Ah 26 x 17,1 x 21,5 Battery weight pr. stk. 56 Ah 21 kg 85 Ah 27 kg Energy consumption in kWh, when charging from “empty”.
-
Page 64: Weight Of The Seats
Medema Production A/S Weight of the seats This is our standard Ergo2 45 cm seat, the heaviest part of the X2 to remove. The label showing the seat’s weight is located as shown above. Seat model Weight Eblo seat 45 cm 19 kg Ergo2 seat 35 cm 20 kg... - Page 65 Medema Production A/S User guide 1533-2006-B 65 of 68 Version 1.0.2/2020...
-
Page 66: Own Notes
Medema Production A/S Own notes User guide 1533-2006-B 66 of 68 Version 1.0.2/2020... - Page 67 Medema Production A/S User guide 1533-2006-B 67 of 68 Version 1.0.2/2020...
- Page 68 medemagroup...
