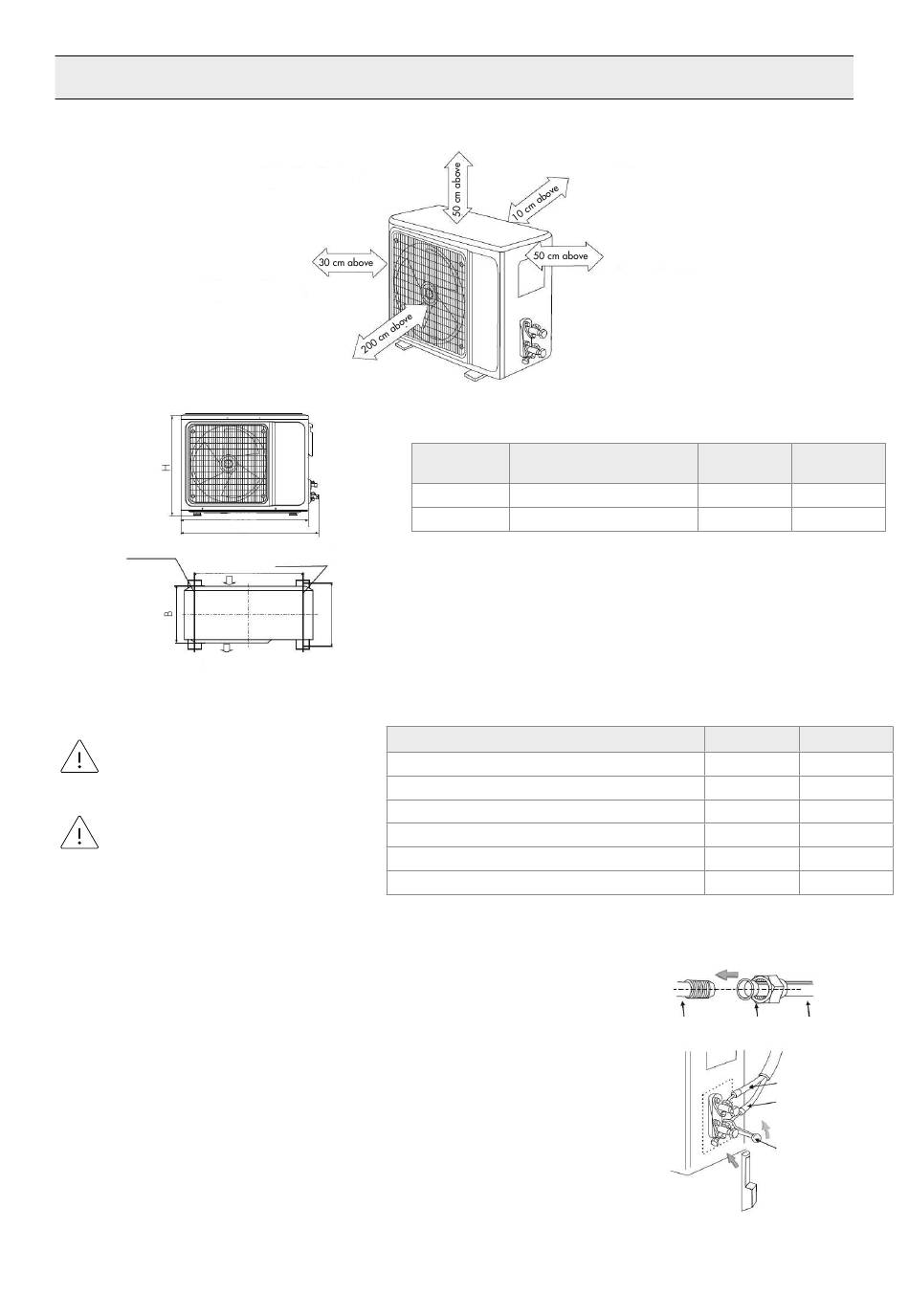

INSTALLATION OF OUTDOOR UNIT

DIMENSION DRAWING OF OUTDOOR UNIT INSTALLATION
Left installation feet
Air inlet
Air outlet
REFRIGERATING CONNECTIONS
Use equipment and connecting pipes
suitable for R32 refrigerator.
Always write the additional refrigerant
charge on the data label affixed to the
unit outside.

INSTALL THE CONNECTION PIPE

Connect the Outdoor Unit with Connecting Pipe: Aim the counter-bore of the connecting
pipe at the stop valve, and tighten the Taper nut with fingers. Then tighten the Taper nut
with a torque wrench.
When prolonging the piping, extra amount of refrigerant must be added so that the
operation and performance of the air conditioner will not be compromised
Note:
1. The joints shall not be reused, unless after re-flaring the pipe.
2. After installation, check the stop valve cover whether be fixed effectively.
52
Space to the obstruction
Space to the obstruction
Air out side
W1
W2
Right installation feet
A
MODEL
Standard refrigerant charge piping lenght (m)
Maximum lenght of pipes with additional charge (m)
Maximum lenght of pipes for units (m)
Additional charge (g/m)
Max. height between units (outdoor on top) (m)
Max. height between units (indoor on top) (m)
Air in side
Installation outdoor unit bolt
Outdoor unit size on shape
Model
W1(W2)*H*D (mm)
14K - 18K 785x300x555
21K 900x350x700
Space to the
obstruction
A (mm)
546
630
14K-18K
3 - 7,5
40
25
25
10
15
Taper nut
Stop valve
Liquid side pipe
Gas side pipe
B (mm)
316
350
21K
3 - 7,5
60
30
25
10
15
Connection
pipe
Spanner
V 06/24
