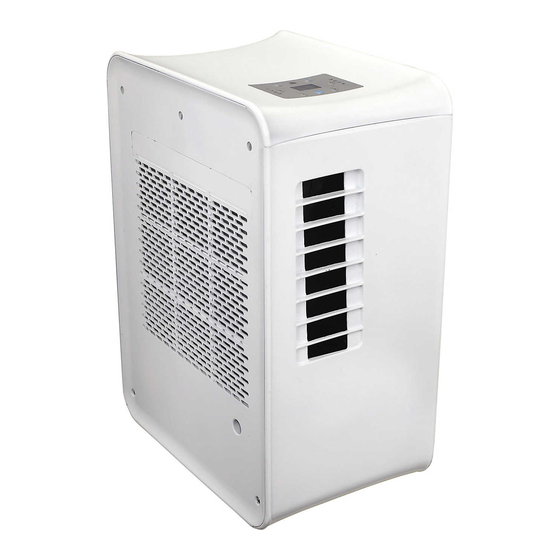

Local air conditioner

Advertisement

Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Keep these instructions in a safe place for future reference
V 12/13
LOCAL AIR CONDITIONER
OPERATING INSTRUCTIONS
.
EN
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the snappy and is the answer not in the manual?

Questions and answers

Summary of Contents for Argo snappy

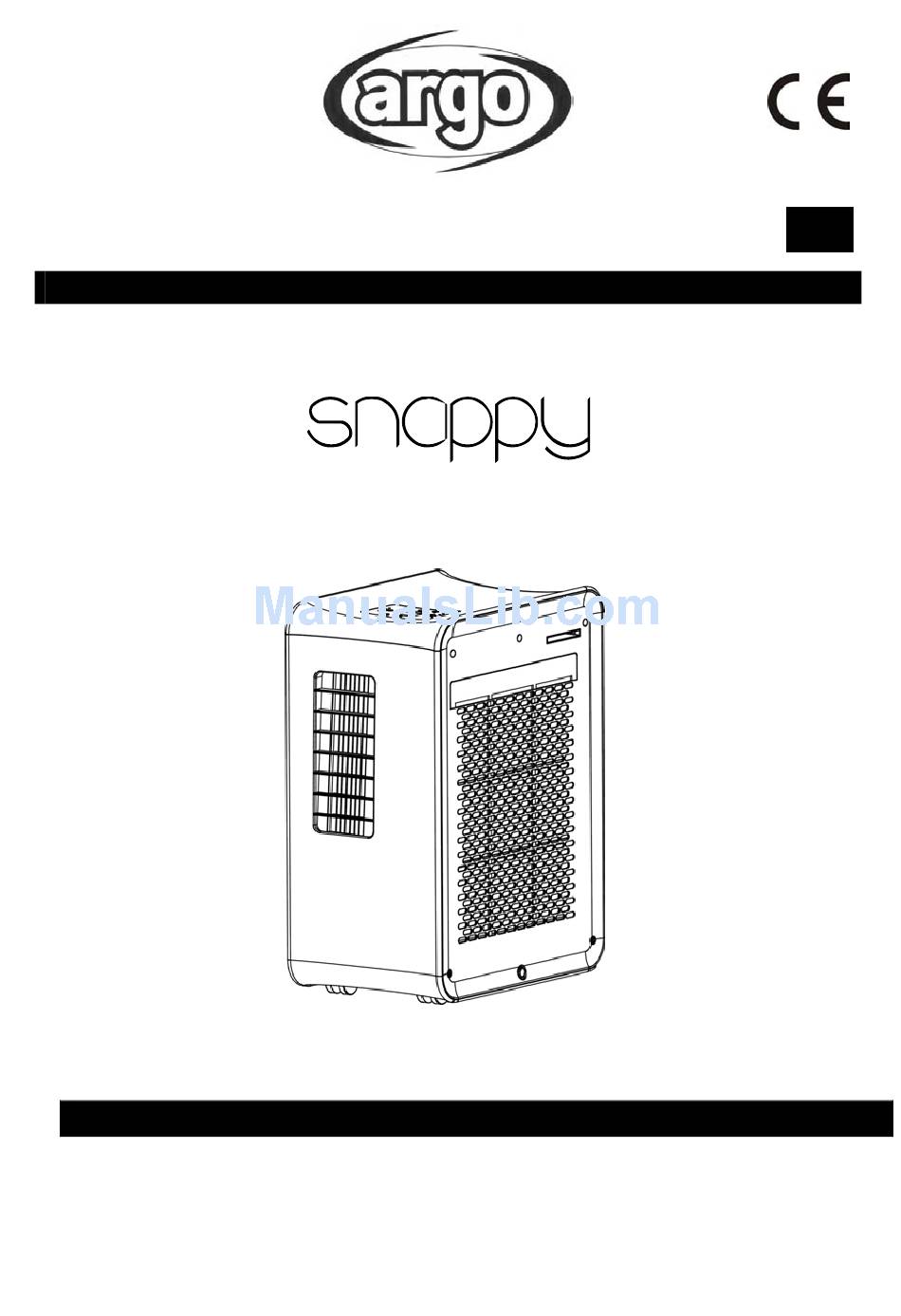

  • Page 1 LOCAL AIR CONDITIONER OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference V 12/13...
  • Page 2 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a portable air-conditioner, designed for domestic use.  Only use this air-conditioner as described in this manual.  Ensure that the required voltage and frequency (220-240V/50Hz) match the available power supply. ...
  • Page 3 INSTRUCTIONS TO REMOVE THE PACKAGING 1. Place the unit in the correct upright position before unpacking. 2. Cut the two packing straps. 3. Slide the carton upwards and it will release the base. 4. Grip the carry handles located on either sides of the unit and carefully lift it until it slides out of the foam base.
  • Page 4 APPLIANCE START-UP Elements supplied (illustrated in the box below). Type CR2025 battery Remote control. for the remote control. Connector for hot air Connector for cold air expulsion expulsion hose hose (heating operation). (cooling operation). Terminal circular connector to be positioned between the end of the hose and the flat Flexible hose.
  • Page 5 TRANSITION FROM COOLING MODE TO HEATING MODE REAR VIEW Disconnect the flexible hose and the connector, rotate 180° the unit. Insert the connector for cold air expulsion and the flexible hose on the rear of the appliance. USE WITH TERMINAL CONNECTION FOR WINDOW Connect the end part of the flexible hose (5) to the flat connector (4).
  • Page 6 Cooling Heating Dehumidification THE DISCHARGE TUBE MUST BE CONNECTED to the appliance AT ALL TIMES: the only exception is when the appliance is used for Dehumidification only, in which case it is recommended that the appliance discharges directly into the environment to obtain maximum efficiency (see the paragraph entitled "Dehumidification Mode"). Clean the air filters under the easily removable side panels regularly to keep the air conditioner working efficiently.
  • Page 7 3. HEATING MODE TO USE THE AIR CONDITIONER IN HEATING MODE, DISINSERT THE FLEXIBLE HOSE AND THE CONNECTOR, ROTATE 180° THE UNIT. INSERT THE CONNECTOR FOR COLD AIR EXPULSION AND THE FLEXIBLE HOSE ON THE REAR OF THE APPLIANCE.  Press FUNC to select HEATING.
  • Page 8 CONTROL PANEL AND REMOTE CONTROL FOR OPTIMAL REMOTE CONTROL FUNCTION, POINT THE HEAD OF THE TRANSMITTER TOWARDS THE RECEIVER ON THE AIR-CONDITIONER. Button TEMPERATURE Button TEMPERATURE INCREASE DECREASE Button TIMER Button SLEEP Button fan speed Button FUNC - AUTOMATIC MODE SELECTION Button fan speeds HIGH - MEDIUM - LOW Button POWER - ON/OFF...
  • Page 9 Decrease (▼): 1) Enables the adjustment of the temperature desired in Cooling and Heating modes 2) Each time the (▼) button is pressed, the temperature set decreases by 1ºC; by holding the button pressed, the temperature decreases continuously. (6) FUNCTION DISPLAY The display shows the temperature and the set timer.
  • Page 10 HOW TO INSERT / REMOVE THE REMOTE CONTROL BATTERIES (refer to the diagram below) Open the battery cover at the rear of the remote control (press and pull the cover). Place the battery into the cover, observing the correct polarity. Insert the cover on to the remote control. INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2006/66/EC Please replace batteries when flat: at the end of their useful life, batteries must not be disposed of with unsorted...
  • Page 11 4. Transport. If possible, transport the air-conditioner in a vertical position. If not possible, lie it on its right side; when you reach your destination, immediately return the appliance to a vertical position and wait at least 4 hours before using 5.
