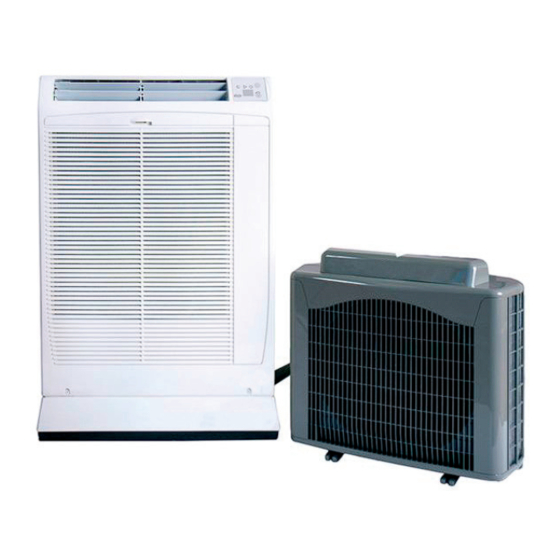

Room air conditioner with remote condenser

Advertisement

Quick Links

CLIMIA
Room air conditioner with remote condenser
Operating instructions
CMK 4000
WiFi
V
V
Version 1.0
english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLIMIA CMK 4000 WiFi and is the answer not in the manual?

Questions and answers

Summary of Contents for Argo CLIMIA CMK 4000 WiFi

  • Page 1 CLIMIA Room air conditioner with remote condenser CMK 4000 WiFi Operating instructions Version 1.0 english...
  • Page 2: Table Of Contents

    CMK 4000 Room air conditioner with remote condenser Contents 01 SAFETY INSTRUCTIONS 02 INSTALLATION LOCATION 03 ELECTRICAL REQUIREMENTS 04 PRODUCT IDENTIFICATION 05 MONITOR PANEL 06 AIR CONDITIONER INSTALLATION 07 IMPORTANT ADVICE 08 USING THE REMOTE CONTROL UNIT 09 REMOTE CONTROL UNIT HOW TO SET THE CLOCK COOLING/AUTOMATIC MODE DEHUMIDIFYING MODE (DRY)
  • Page 3: Installation Location

    CLIMIA 02 - INSTALLATION LOCATION • Do not install this air conditioner where there are fumes or flammable gases, or in an extremely WARNING humid space such as a green house. • Do not install the air conditioner where excessively high heat-generating objects are placed. •...
  • Page 4: Product Identification

    Room air conditioner with remote condenser CMK 4000 04 - PRODUCT IDENTIFICATION 11. Infrared rays remote control unit 12. Monitor panel 13. Supply air deflector 14. Return air grille 15. Outdoor unit 16. Flexible tube 17. Air filter 18. Power cable with plug (about 2.30 m) 19.
  • Page 5: Air Conditioner Installation

    CLIMIA 06 - AIR CONDITIONER INSTALLATION The air conditioner is made of two units interconnected by a flexible tube. The indoor unit must be placed in the room to be air condi- tioned, near a window, a balcony-door or a perimeter wall. The out- door unit, that provides to the disposal of heat and condensation, must be located outside, on a window sill, on a balcony or hanged to the wall.
  • Page 6: Using The Remote Control Unit

    Room air conditioner with remote condenser CMK 4000 08 - USING THE REMOTE CONTROL UNIT HOW TO INSTALL BATTERIES • Remove the lid in the rear part of the remote control unit. RESE T • Insert two AAA alkaline batteries of 1,5 V-DC making sure that point in the direction marked in the battery compartment.
  • Page 7: Remote Control Unit

    CLIMIA 09 - REMOTE CONTROL UNIT DISPLAY Information is displayed when the remote controller is switched on. HEATING MODE: not active on this unit FLAP: not active on this unit Operation mode I FEEL mode is active Cooling AUTO (remote controller sensor active) Night mode Automatic...
  • Page 8: How To Set The Clock

    CMK 4000 Room air conditioner with remote condenser 09 - REMOTE CONTROL UNIT HOW TO SET THE CLOCK DEHUMIDIFYING MODE (DRY) Press for a few seconds the Timer button 1. Turn on the unit with the ON / OFF button Press the button 2.
  • Page 9: Night Mode

    CLIMIA 09 - REMOTE CONTROL UNIT NIGHT MODE HOW TO SET SCHEDULES A) DELAYED TIMER This program is used to increase silence and comfort during This timer is used to start the unit (if it the night. To activate the Night mode: a certain time, to set the delayed time.
  • Page 10: Parameters Setting

    Room air conditioner with remote condenser CMK 4000 10 - PARAMETERS SETTING To access to the “Parameter menu”, long press “MODE/SET” from the main screen or from the OFF screen: 2 sec) When a parameter has been selected, long press “MODE/SET” to modify the value of the parameter. The value of the parameter starts blinking and SET symbol switches on: (2 sec) Press “UP”...
  • Page 11 CLIMIA 10 - PARAMETERS SETTING (0.5 sec) Press “ON/OFF” to go back to main screen: Par. Parameter name Default Values Factory default reset 0 = No action 1 = Reset all remote control parameters to factory default value Software version Software version of the remote controller Temperature scale 0 = °C (Celsius)
  • Page 12: Wifi Configuration

    CMK 4000 Room air conditioner with remote condenser 11 - WiFi CONFIGURATION (FIRST START) 1. Connect the unit to the power supply. 2. Check if the WiFi status LED (dot on the bottom right of the display) is flashing. If it is not blinking, unplug the power supply and wait for the display to turn off.
  • Page 13 1. Check if the unit is connected to WiFi (WiFi status LED on display is solid). 2. Open the web APP by connecting to the address http://31.128.210/UI/WEBAPP/ webapp.php?logo=Argo or scan the adjacent QR code. NOTICE: To access the WEBAPP, the smartphone or tablet must also be connected to the Internet.
  • Page 14 Room air conditioner with remote condenser CMK 4000 4. Once you are logged in, the following page will appear: Use the APP as a remote control of the unit. For instructions on how to use the remote control, see this guide. Tap this button to change the settings.
  • Page 15 CLIMIA If you are using an ANDROID device: Tap on the adjacent symbol (top of screen) Select „Add to Home Screen“ The screen is displayed: Share... Enter a name. Search on page Add to home screen WIFI NETWORK RESET Press the control button of the unit for 5 seconds to reset the WiFi network access data, e.g. to connect to a new network or to change the settings of the existing network.
  • Page 16: Adjusting The Air Flow Direction

    Room air conditioner with remote condenser CMK 4000 12 - ADJUSTING THE AIR FLOW DIRECTION VERTICAL Hold the end of the flap and move it up and down to adjust the vertical air flow. HORIZONTAL The horizontal air flow can be adjusted by moving the vertical blades to the left or right, as indicated in the following figure.
  • Page 17: Accessories (Supplied On Request)

    CLIMIA AIR FILTER The air filter must be cheked at least once every two weeks operation. Operation with a dirty filter always causes a lower ef- ficency of the air conditioner and severe product damage. The filter is located at the back of the intake grille in the front of the air-conditioner and shall be removed from the upper side of the unit.
  • Page 18: Tips For Energy Saving

    CMK 4000 Room air conditioner with remote condenser 16 - TIPS FOR MAXIMUM COMFORT AND REDUCED CONSUMPTION AVOID: • Block the air intake and outlet of the unit. If they are obstructed, the unit will not work well, and may be damaged. •...
  • Page 19 CLIMIA AUTO-DIAGNOSIS TIMER OPERATION STANDBY POSSIBLE CAUSE REMEDY • Heating mode not available Select an available mode Communication error with HMI receiver PCB (WiFi model only) Contact service centre Condensate drainage error (float error) Contact service centre • • PFC error (over current, over voltage or PFC communication error) Contact service centre •...
  • Page 20 Intakt GmbH Climia - Klima- und Wärmetechnik Niemeierstraße 13 D - 32758 Detmold...
