EN

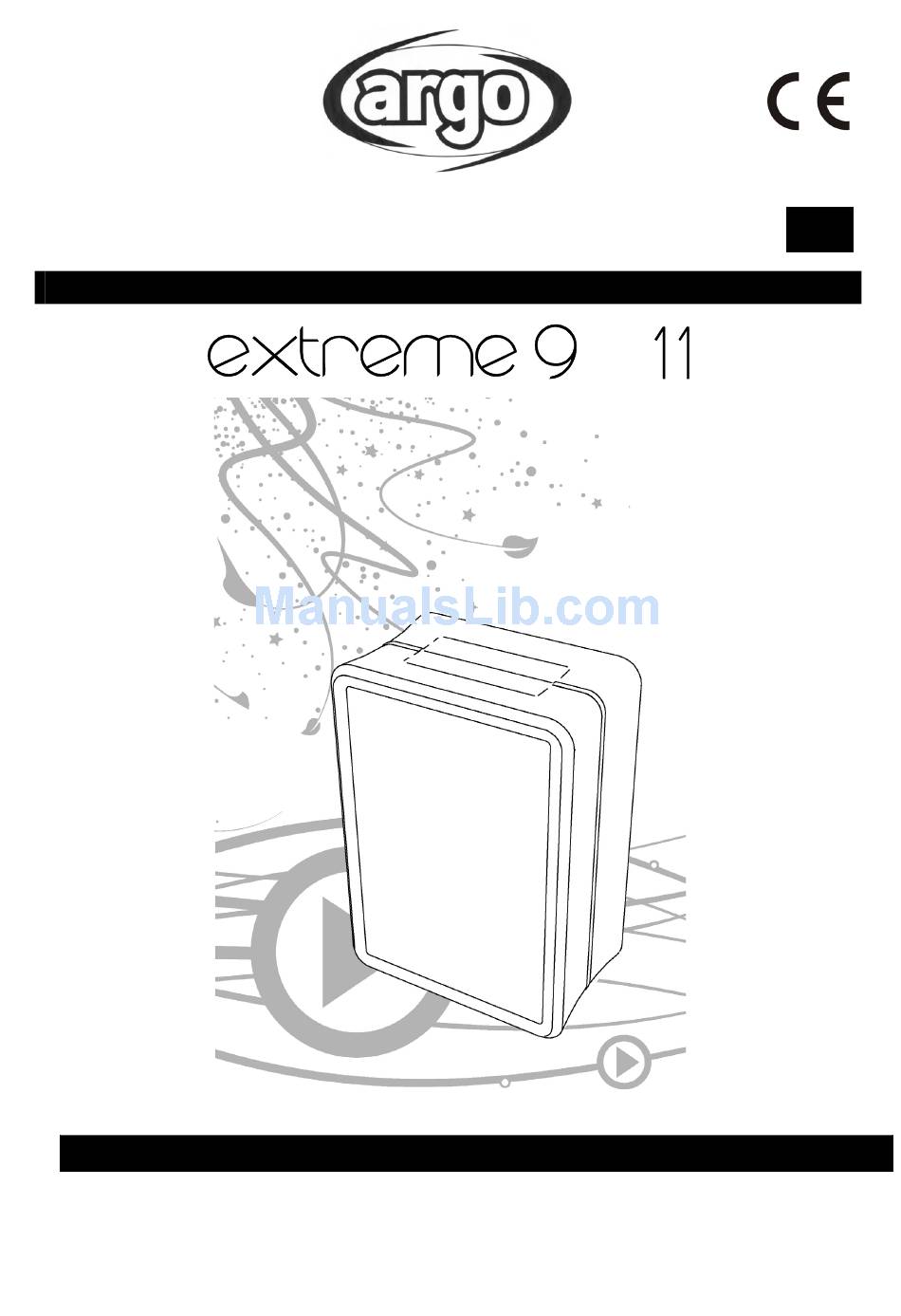

PORTABLE (LOCAL) AIR CONDITIONER
/
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
.
damage. Keep these instructions in a safe place for future reference
V 01/13
11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argo Extreme 9
Summary of Contents for Argo Extreme 9
- Page 1 PORTABLE (LOCAL) AIR CONDITIONER OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference V 01/13...
- Page 2 GENERAL OPERATING AND SAFETY INSTRUCTIONS This appliance is a portable air-conditioner, designed for domestic use. Only use this air-conditioner as described in this manual. Ensure that the required voltage and frequency (220-240V/50Hz) match the available power source. ...
- Page 3 DESCRIPTION OF THE APPLIANCE FRONT VIEW CONTROL PANEL - FUNCTION BUTTONS FOR OPERATION WITHOUT REMOTE CONTROL TERMINAL CONNECTOR OF THE AIR EXPULSION TUBE AIR EXPULSION TUBE REMOTE CONTROL RECEIVER AIR OUTLET INLET GRILLE CONDENSATE DRAIN HOLE OPERATING LED POWER CORD T AIR OUTLET 10) CONCEALED WHEELS 11) DIGITAL REMOTE CONTROL...
- Page 4 APPLIANCE START-UP Open the packaging and remove the box from above. Remove the product and the other elements supplied (illustrated in the box below). Digital remote control Type AAA batteries for the remote control. Circular connection to be positioned Opening kit for installation in window (also between the end of the tube and the for double glazing).
- Page 5 Insert the window without its closure cap. Remove the hot air terminal connection from the retracting flexible hose. Bring the air-conditioner close to the window and insert the air discharge tube. Avoid tight curves and folds in the flexible hose. Connect the power cord to a suitable electrical socket (230V).
- Page 6 The temperature is controlled by the electronic card and cannot be regulated. In this way, each time the Power button is pressed, the unit switches off, the appliance saves the settings and when switched back on again, it will retain them. ...
- Page 7 REMOTE CONTROL OPERATION Insert the batteries into the remote control, respecting polarities specified. Only use type AAA or IEC R03 1.5V batteries. Remove the batteries if the remote control is not used for a month or longer. Do not attempt to recharge the batteries. Change all batteries at the same time. Do not throw batteries onto a fire, they may explode.
- Page 8 (1) SIGNAL TRANSMITTER (2) FUNCTION DISPLAY (3) FUNCTION SELECTION BUTTON (FUNC) Press this button to select the different operating modes, according to the following sequence: Cooling → Dehumidification → Heating (NOT ACTIVE) → (4) TEMPERATURE ADJUSTMENT BUTTON ▲▼) Increase (▲): 1) Enables the adjustment of the temperature desired in Cooling mode.
- Page 9 OPERATION WITHOUT A REMOTE CONTROL If the remote control is not working or has been lost, the button on the control panel can be used. 1. "POWER" BUTTON (SWITCHING ON/FUNCTION SELECTION (Cooling / Heating (NOT ACTIVE)/ Switching off) By pressing this button consecutively on the control panel, the unit is activated, cooling mode is selected, heating mode (NOT ACTIVE) is selected and finally the appliance is deactivated.
- Page 10 4. Transport. If possible, transport the air-conditioner in a vertical position. If not possible, lie it on its right side; when you reach your destination, immediately return the appliance to a vertical position and wait at least 4 hours before using it to cool.
