AUMA SA 40.1 Operation Instructions Manual

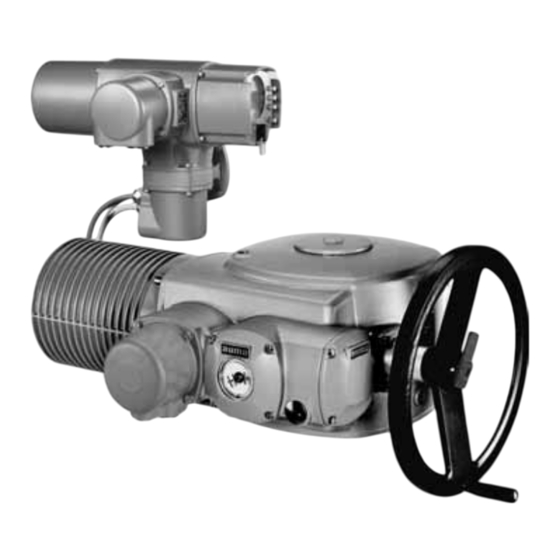

Multi-turn actuators, control unit: electromechanic with actuator controls, intrusive
Hide thumbs Also See for SA 40.1:
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-turn actuators
SA 25.1
SA 40.1/SAR 25.1
SAR 30.1
Control unit: electromechanic
with actuator controls
AUMATIC AC 01.2 Intrusive
Control
Parallel
Profibus DP
Modbus
Operation instructions
Assembly, operation, commissioning
