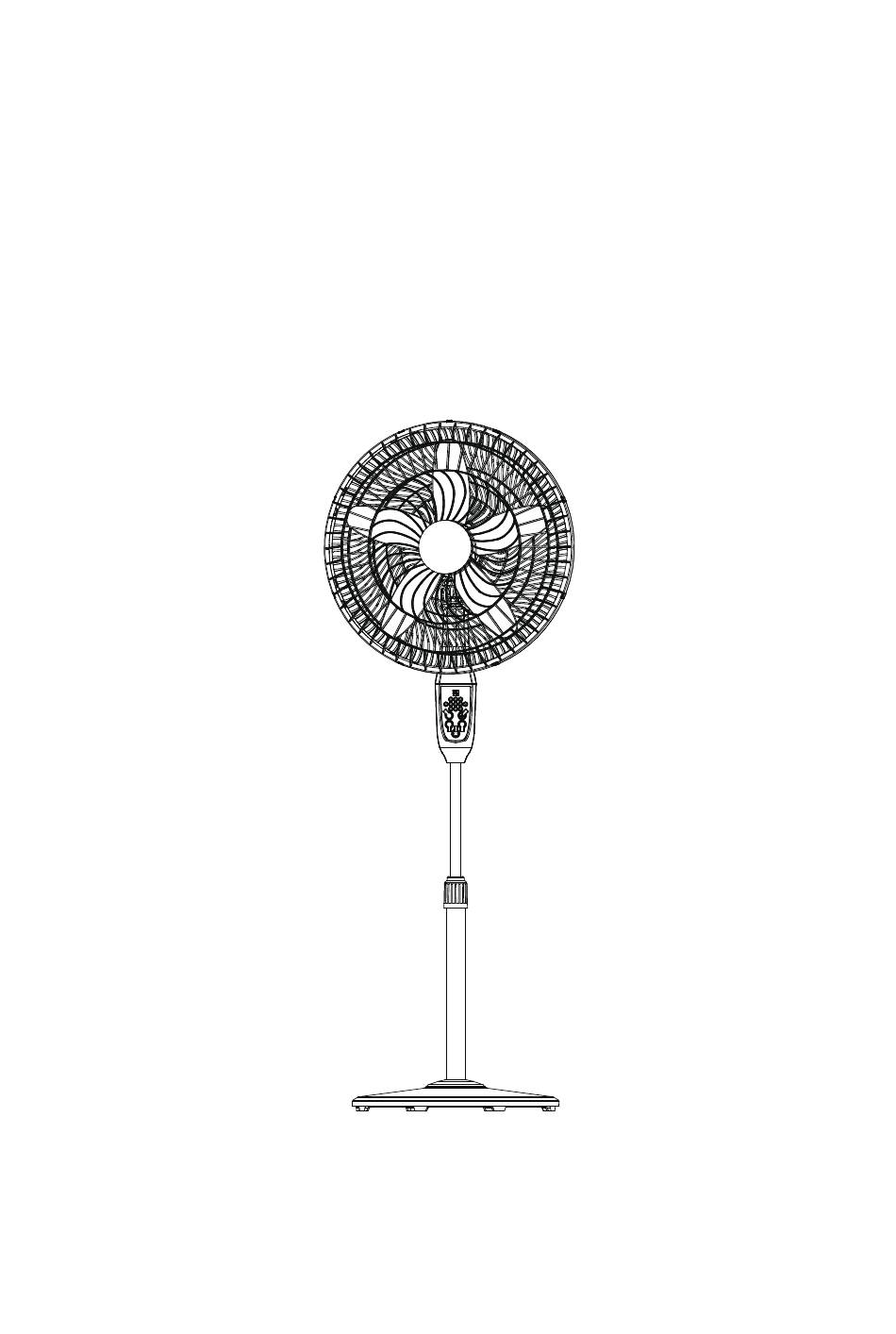

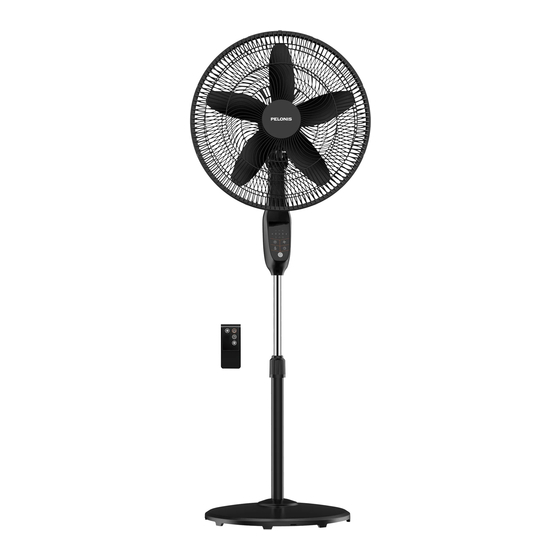

- Page 1 OWNER’S MANUAL Stand Fan MODEL: FS45-20AR READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Caution Read Rules for Safe Operation and Instructions Carefully. WARNING 1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. - Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING 7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 4: Rules For Safe Operation
RULES FOR SAFE OPERATION 1. Never insert fingers, pencils, or any other object through the grille when fan is running. 2. Disconnect fan when moving from one location to another. 3. Be sure fan is on a stable surface when operating to avoid overturning. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Name of components Motor shaft Motor Install by aligning Front grill ① Rear grill Tighten knob Lock nut of blade Lock nut of blade Pole anticlockwise, and then install the front fan cover. Blade Pull the blade to rotate after installing, so as to ensure that the blade can be normally rotated. - Page 6 OPERATING INSTRUCTION 1. Remote Controller (Fig.1) “ ” ON/OFF KEY The key is for switching on the fan. The fan will be started. Press the key again, it will be switched off. “ ” TIMER KEY When the TIMER key is touched repeatedly , the time to be set for air delivery increased step by step .For instance, if the fan operation is required to be set for 7hours, this key must be touched repeatedly so that the pilot lamps for 1, 2and 4 hours lighten together.
- Page 7 OPERATING INSTRUCTION NOTE : Use manganese or alkaline batteries of type "AAA". Do not use rechargeable batteries. Remote controller • BATTERY WARNING AS BELOW Do not dispose of batteries in fire, batteries may explode or leak. AAA Battery,1.5v Do not mix old and new batteries. Battery cover Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
-
Page 8: Indicator Light Display
OPERATING INSTRUCTIONS CONTROL PANEL “ ” TIME KEY When the TIMER key is touched repeatedly , the time to be set for air delivery increased step by step .For instance, if the fan operation is required to be set for 7hours, this key must be touched repeatedly so that the pilot lamps for 1, 2and 4 hours lighten together. - Page 9 INSTRUCTIONS FOR USE Instructions for operation of body Horizontal Swing Pull-up for static Push-down to swing Swing Pull-knob Tilt Adjustment Body key Manual “SPEED” key “TIMER”key “ON/OFF” key “ECO” key “MODE” key Height Adjustment Turn counterclockwise and loosen for performing height adjustment. Height Adjustment Key...
-
Page 10: Maintenance Instruction
MAINTENANCE INSTRUCTION The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed. 1. Before cleaning and assembling, fan must be unplugged. 2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust.
