ARH 维修手册

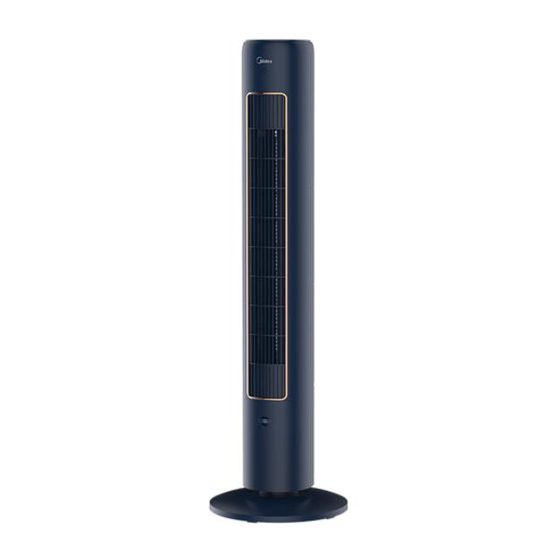

(本图片为参考示意图,具体外观和配置以实物为准)(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
编制
审核
批准
维修手册
Manual
Applicable Models
适用机型
FZ10-21CR
Prepared by
Reviewed by
Approved by
重要安全通知
Service Manual, 2017 v1.0
Service
张瑜
李媛媛
吴孔升
1 / 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the FZ10-21CR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Midea FZ10-21CR

  • Page 1 维修手册 Service Manual, 2017 v1.0 ARH 维修手册 Service Manual Applicable Models 适用机型 FZ10-21CR (本图片为参考示意图,具体外观和配置以实物为准)(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 张瑜 Reviewed by 审核 李媛媛 批准 Approved by 吴孔升...
  • Page 2: Important Safety Notice

    Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 2 / 12...
  • Page 3: Safety Warning Code

    维修手册 Service Manual, 2017 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions.
  • Page 4 维修手册 Service Manual, 2017 v1.0 整机拆卸 Dismantling of appliance Remove the chassis 底盘拆卸 拧下索母,然后取下底盘。 Unscrew the cable and then remove the chassis. Remove protective net and rear shell 防护网、后壳拆卸 拆下防护网, 松开并取出后壳 10 颗螺钉, 向后 壳方向用力拍,让前后壳扣位脱开。 Remove the protective net, loosen and take out the 10 screws of the rear shell, and pat hard in the direction of the rear shell to release the buckle position of the front...
  • Page 5 维修手册 Service Manual, 2017 v1.0 Motor and wind wheel dismantling 电机、风轮拆卸 用螺丝刀取下风轮的固定螺钉,用螺丝刀取下 电机安装的固定螺钉,即可取下电机、风轮。 Remove the fixing screw of the wind wheel with a screwdriver, remove the fixing screw of the motor installation with a screwdriver, that is, remove the motor and wind wheel.
  • Page 6: Function And Operation

    维修手册 Service Manual, 2017 v1.0 电源板拆卸 Disassembly of power panel 用螺丝刀松开防火盒螺钉,拿出电源板 Using a screwdriver, loosen the fireproof box screw and remove the power board. 出风口框、装饰件拆卸 Disassembly of air outlet frame and decorative pieces 1、 将出风口框从前壳上拆下。 2、 将装饰件从出风口框上拆下。 1. Remove the air outlet frame from the front shell.
  • Page 7 维修手册 Service Manual, 2017 v1.0 Installation of air outlet frame and decorative pieces 出风口框、装饰件安装 1、将装饰件安装在出风口框上; 2、将出风口框装在前壳上 1. Install the decorative pieces on the air outlet frame; 2. Install the air outlet box on the front shell. 控制电路板安装 Control board installation 将控制电路板安装在顶盖上...
  • Page 8 维修手册 Service Manual, 2017 v1.0 Air duct assembly installation 风道组件安装 将风道组件安装在前壳上 Install air duct assembly on the front housing. 安装 Rotating head assembly installation 摇头组件 将摇头组件安装在前壳上 Install the oscillating assembly on the front housing. 电源电路板、防火盒安装 Power circuit board, fireproof box installation 1、将电源电路板插好线装入防火盒;...
  • Page 9: Fault Code And Solutions

    维修手册 Service Manual, 2017 v1.0 The chassis to install 底盘安装 将底盘安装在机身上并旋紧索母 Install the chassis on the fuselage and tighten the cable. 常见故障及解决方法 Fault code and solutions 故 障 代 码 故障内容 Fault 显示 维修方法步骤 Display Steps for maintenance methods Fault code content A、检查插座是否有电,如出现故障更换。...
  • Page 10 维修手册 Service Manual, 2017 v1.0 Appendix: 附录 Electrical Schematic Diagram 整机接线图 风扇维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 10 / 12...
  • Page 11 维修手册 Service Manual, 2017 v1.0 平口螺丝刀 拆卸螺钉和铆钉 slotted screw and screwdriver rivet assemble and disassemble 斜口剪钳 拆卸扎带 Remove the tie Bevel cutting pliers 活动扳手 拆卸风轮螺母 Remove the monkey wrench wheel nut 钳子 拆卸风叶 pliers Remove the blades 11 / 12...
  • Page 12 如需获得厂家详细技术咨询,请联系: xxx@midea.com 环境电器事业部 外销 地址:中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City,...
