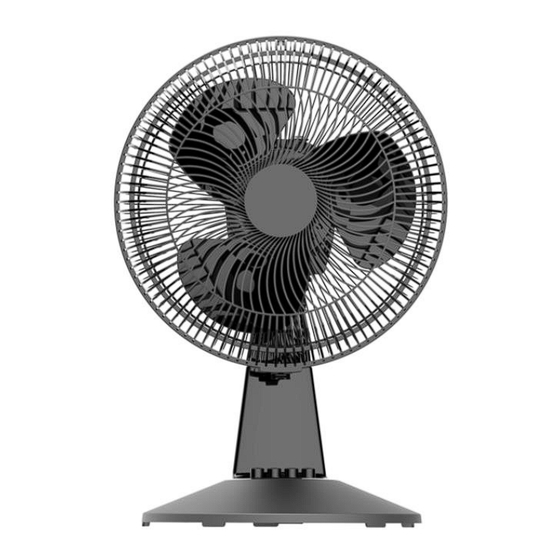

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific
appearance and configuration are subject to the real product)
编制
审核
批准
本维修手册仅用于具有适当电气、电子和机械经验背景的维修人员使用。
任何修理主要装置的测试均可能导致人身伤害和财产损失。
制造商或经销商不对本资料的内容和解释负责。
维修手册
维修手册
Service Manual
适用机型
Applicable Models
FT30-21MA
Prepared by
Reviewed by
Approved by
重要安全通知
美的环境电器
Service Manual, 2017 v1.0
张冲
张眉
吴孔升
1 / 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea FT30-21MA
Summary of Contents for Midea FT30-21MA
- Page 1 维修手册 Service Manual, 2017 v1.0 维修手册 Service Manual 适用机型 Applicable Models FT30-21MA （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 张冲 Reviewed by 审核 张眉 Approved by 批准...
- Page 2 Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 2 / 12...
- Page 3 维修手册 Service Manual, 2017 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions.
- Page 4 维修手册 Service Manual, 2017 v1.0 整机拆卸 Dismantling of appliance 前网罩拆卸 拆下网扣螺钉，前网罩从后网罩上面取下； Remove the mesh screw and remove the front net cover from the rear net cover 风叶拆卸 顺时针拧出风叶索母，然后取下风叶; Screw out the spinner of clockwise, then remove the blade. 后网罩拆卸 逆时针拧出网罩索母，然后取下后网罩； Unscrew the spinner of counterclockwise and remove the rear grill.
- Page 5 维修手册 Service Manual, 2017 v1.0 抽钮拆卸 如果抽钮内无螺钉可直接向上用力拔出抽钮，有螺钉 的话使用螺丝刀将抽钮内部螺钉拧松，再取出抽钮； If there is no screw in the knob, you can pull the knob out directly and forcefully. If has a screw, use the screwdriver to loosen the internal screw of the knob and then take out the knob.
- Page 6 维修手册 Service Manual, 2017 v1.0 连接头的拆卸 取下底座柱的一颗螺钉，即可拆卸连接头 Remove the screw from the base column to remove the connector. 2.10 电机的拆卸 使用螺丝刀将连接头前段的定位钉与摇头连杆的螺钉 去除即可拆卸电机 Remove screws of the oscillating arm and the Neck,and then take off the motor. 2.12 底盘的拆卸 沿扣位方向拆开底盘和底板 Disassemble the chassis and bottom plate along the locking direction 6 / 12...
- Page 7 维修手册 Service Manual, 2017 v1.0 整机的安装 Function and operation Operation panel 连接头的安装 使用螺丝刀，安装摇头连杆和电机 Using a screwdriver, install the shaking link and motor Operation panel 电机的安装 将电机机头线穿过连接头，将电机中心轴插入连 接头定位套孔中， 将定位钉拧紧在连接头上， 并测 试电机是否已经固定在连接头上 Pass the motor head line through the neck, insert the motor center shaft into the neck positioning sleeve hole, tighten the locating scerw on the neck, and check whether the motor has been fixed on the neck...
- Page 8 维修手册 Service Manual, 2017 v1.0 Display screen 电机后壳的安装 将电机后壳对好位置后插入前壳中，扣位连接的 需要确保 4 个扣位扣紧 Insert the motor rear shell into the front enclosure after it is in position. The fastener connection needs to ensure 4 fasteners are tightened. The screw connection needs to use screws to fix the motor rear enclosure 3.10 后网罩的安装...
- Page 9 维修手册 Service Manual, 2017 v1.0 手动安装顺序，安装时会听到咔啪声 hands in sequence, and when it is installed, you will hear a click 网扣安装 Self-locking installation 常见及解决方法 Fault code and solutions 故 障 代 码 代 码 可见 故 障 内 容 显示 维修方法步骤 Display Steps for maintenance methods Fault...
- Page 10 维修手册 Service Manual, 2017 v1.0 Appendix: 附录 爆炸图 EXPLORD 10 / 12...
- Page 11 维修手册 Service Manual, 2017 v1.0 Electrical Schematic Diagram 整机接线图 风扇维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 slotted screw and rivet screwdriver/scraper assemble and disassemble 11 / 12...
- Page 12 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 外销 地址：中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City, Guangdong...
