ELECTRIC FAN
OWNER'S MANUAL

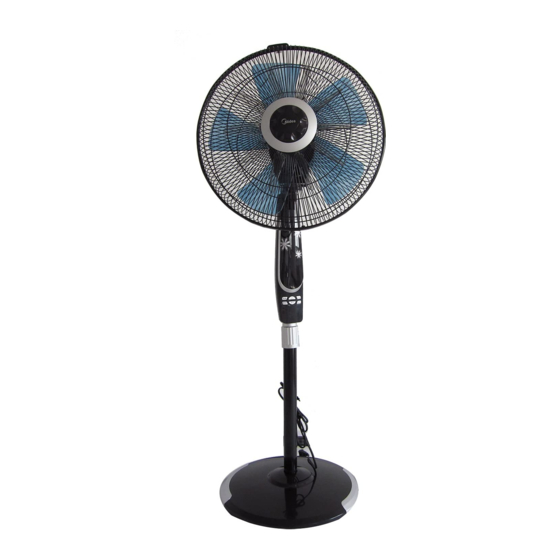

16" STAND FAN
MODEL: FS40-10AR
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea FS40-10AR
Summary of Contents for Midea FS40-10AR
- Page 1 ELECTRIC FAN OWNER’S MANUAL 16" STAND FAN MODEL: FS40-10AR READ AND SAVE THESE INSTRUCTIONS GD Midea Environment Appliances MFG.CO.,Ltd. Midea Industrial Park, Dongfu Road, Dongfeng Town, Zhongshan, Guangdong, Attention: Pictures in the IM are for reference only. 528425, P.R.China...
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 3 PART FIGURE Front grill Rear grill Thumb screw Chassis 7-shape Bolt Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. ASSEMBLY OF CHASSIS &...
- Page 4 Fig.1 Fig.2 Fig.3 Fig.4 Mounting hole Thumb screw Loose e n Annular groove GRILL & FAN BLADE ASSEMBLY 1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counterclockwise to remove both of them. Fix the rear grill to the motor then tighten the plastic nut again.
- Page 5 OPERATING INSTRUCTION I. Remote Controller (Fig.8) a. KEY INSTRUCTION 1. “ ” ON/OFF KEY The “ ” key is for switching on the fan .The fan will be started at breeze step. Press the “ ” key if the fan needs to switch off. 2.
- Page 6 of “0.5h-1h-...-7h-7.5h-0h-0.5h...”. Meanwhile, corresponding indicator will be on. Time indicators will extinguish in turn as the time pass by. When the preset time is over, the fan will be switched off automatically. 6. “ ” SILENCE KEY In the state of non-silence, press silence button, the fan would be in silent state and the silence icon is lightened, while the indicator icons of the other wind types and wind levels would turn off.
- Page 7 II. Buttons on fan body (Fig.10) / Panel indication (Fig.11) The buttons on the body such as air speed, on/off, air mode, mute, appointment/ timer, oscillation have the same functions as those of the corresponding keys on the remote controller. Fig.10 Fig.11 III.
