维修手册

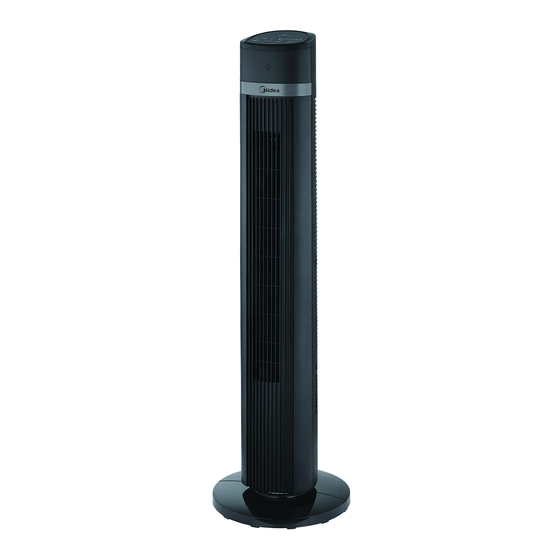

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
审核
批准
本维修手册仅用于具有适当电气、电子和机械经验背景的维修人员使用。
任何修理主要装置的测试均可能导致人身伤害和财产损失。
制造商或经销商不对本资料的内容和解释负责。
保留全部版权。未经美的环境电器外销书面批准，不得以任何形式全部或部分复制本手册。
Service Manual
适用机型
Applicable Models
FZ10-18TRB
编制
Prepared by
Reviewed by
Approved by
重要安全通知
美的环境电器
技术手册
版权@2017
Important Safety Notice
维修手册
Service Manual, 2019 v1.0
邓询
张眉
吴孔升
1 / 16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea FZ10-18TRB
Summary of Contents for Midea FZ10-18TRB
- Page 1 维修手册 Service Manual, 2019 v1.0 维修手册 Service Manual 适用机型 Applicable Models FZ10-18TRB （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 邓询 Prepared by 审核 张眉 Reviewed by 批准 吴孔升 Approved by 重要安全通知...
-
Page 2: Safety Warning Code
Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 安全警示规范 Safety Warning Code WARNING Read these instructions. - Page 3 维修手册 Service Manual, 2019 v1.0 been dropped. 16 To reduce the risk of fire or electric shock, do not expose this appliance to rain, moisture, dripping, or splashing. 17 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 4 维修手册 Service Manual, 2019 v1.0 螺钉拆卸 Screw disassembly 松开后网螺钉并取下后网，然后松开 并取出后壳 8 颗螺钉 Loosen the rear mesh screws and remove the rear mesh, then loosen and remove the 8 screws of the rear shell 后壳的拆卸 Rear shell disassembly 向后壳方向用力拍。让前后壳扣位脱开。 Press backward in the direction of the shell and pull the front and rear buttons off.
- Page 5 维修手册 Service Manual, 2019 v1.0 Back shell 取下后壳 取下后壳 Back shell 导风板的拆卸 Disassembly of guide plate 用螺丝刀取下固定风道的螺钉，然后取下风道 Use a screwdriver to unscrew the duct and remove the duct 轴承组件的拆卸 Disassembly of bearing components 用螺丝刀将轴承从风道中撬出，取消风道轴承 Pry the duct bearing out of the duct and remove the duct bearing 5 / 16...
- Page 6 维修手册 Service Manual, 2019 v1.0 风轮的拆卸 Disassembly of the wind wheel 用螺丝刀取下风轮的固定螺钉，用螺丝刀取下 电机安装的固定螺钉，即可取下电机。 。 Use the screwdriver to take down the fixing screw of the wind wheel Remove the motor with the screwdriver. Remove the motor with the screwdriver. 运动组件的拆卸 Disassembly of motion components 用螺丝刀取下摇头组件的固定螺钉，即可取下...
- Page 7 维修手册 Service Manual, 2019 v1.0 控制系统的拆卸 Disassembly of the control system 使用螺丝刀将控制盒固定螺钉松开即可 打开顶盖 Use the screwdriver to open the top cover by loosening the control screw. 撕开面贴并松开电路板支架螺钉，取下 电路板支架 Tear off the face sticker and loosen the board support screw. Remove the board support 掰开接收头卡扣，取下遥控器接收头...
- Page 8 维修手册 Service Manual, 2019 v1.0 打开控制盒，取下电路板 Open the control box，Take off the circuit board 依次取出连接线 Take out the connection line in turn 拆掉防火盒固定螺钉，取下电源电路板 依次取出连接线 Take out the connection line in turn 8 / 16...
-
Page 9: Function And Operation
维修手册 Service Manual, 2019 v1.0 整机的安装 Function and operation 的安装 控制系统和风道系统 Installation of control system and duct system 将轴套装入风道轴套孔中 Load the shaft sleeve into the shaft sleeve hole of the wind channel 风轮装入风道中，风轮轴卡入轴套孔中 The shaft sleeve is loaded into the shaft sleeve hole of the wind passage by aligning the shaft sleeve hole in the wind wheel... - Page 10 维修手册 Service Manual, 2019 v1.0 用螺丝刀拧紧风轮的固定螺钉 Tighten the fixed screw of the wind wheel with a screwdriver 按电路图接线 Wiring according to circuit diagram 电路板放入防火盒中 Put the circuit board in the fireproof box 盖上顶盖盖 Cover the box 10 / 16...
- Page 11 维修手册 Service Manual, 2019 v1.0 用螺丝刀将防火盒、防火盒盖、电路板、 顶盖锁好，线束放入防火盒盖卡扣中 Use a screwdriver to lock the fire box, fire box cover, circuit board, top cover, wire harness into the fire box cover buckle 使用螺丝刀将连接顶盖的固定螺钉拧紧 Tighten the fastening screws connecting the top cover with a screwdriver. 运动组件安装...
- Page 12 维修手册 Service Manual, 2019 v1.0 后壳的安装 The installation of the rear shell 合上后壳 Back shell 用螺丝刀拧紧后壳的 8 颗固定螺钉 Tighten the 8 fixed screws of the rear shell with a screwdriver 底盘的安装 Chassis installation 装上底盘，拧上索姆 Install the chassis, screw on the somme 12 / 16...
-
Page 13: Fault Code And Solutions
维修手册 Service Manual, 2019 v1.0 常见故障及解决方法 Fault code and solutions 故 障 代 码 故障内容 Fault 显示 维修方法步骤 Display Steps for maintenance methods Fault code content A、家庭的电源插座故障：检查插座是否有电，如出现故 障更换。 B、产品内部各部分故障： B1、电路板故障：电路板损坏，插线脱落； B2、内部接线故障：内部线断；故障：电路板损坏，插 线脱落； 不能正常启动 B3、电机故障：烧坏或热熔断器断路。 It is not normal 处理方法：分段检查，逐一排除找到原因后进行修理。 to start A, home power socket failure: check whether the socket has electricity, if there is a malfunction replacement. - Page 14 维修手册 Service Manual, 2019 v1.0 附录 Appendix: 整机接线图 Electrical Schematic Diagram 风扇维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 14 / 16...
- Page 15 维修手册 Service Manual, 2019 v1.0 15 / 16...
- Page 16 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 外销 地址：中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City,...
