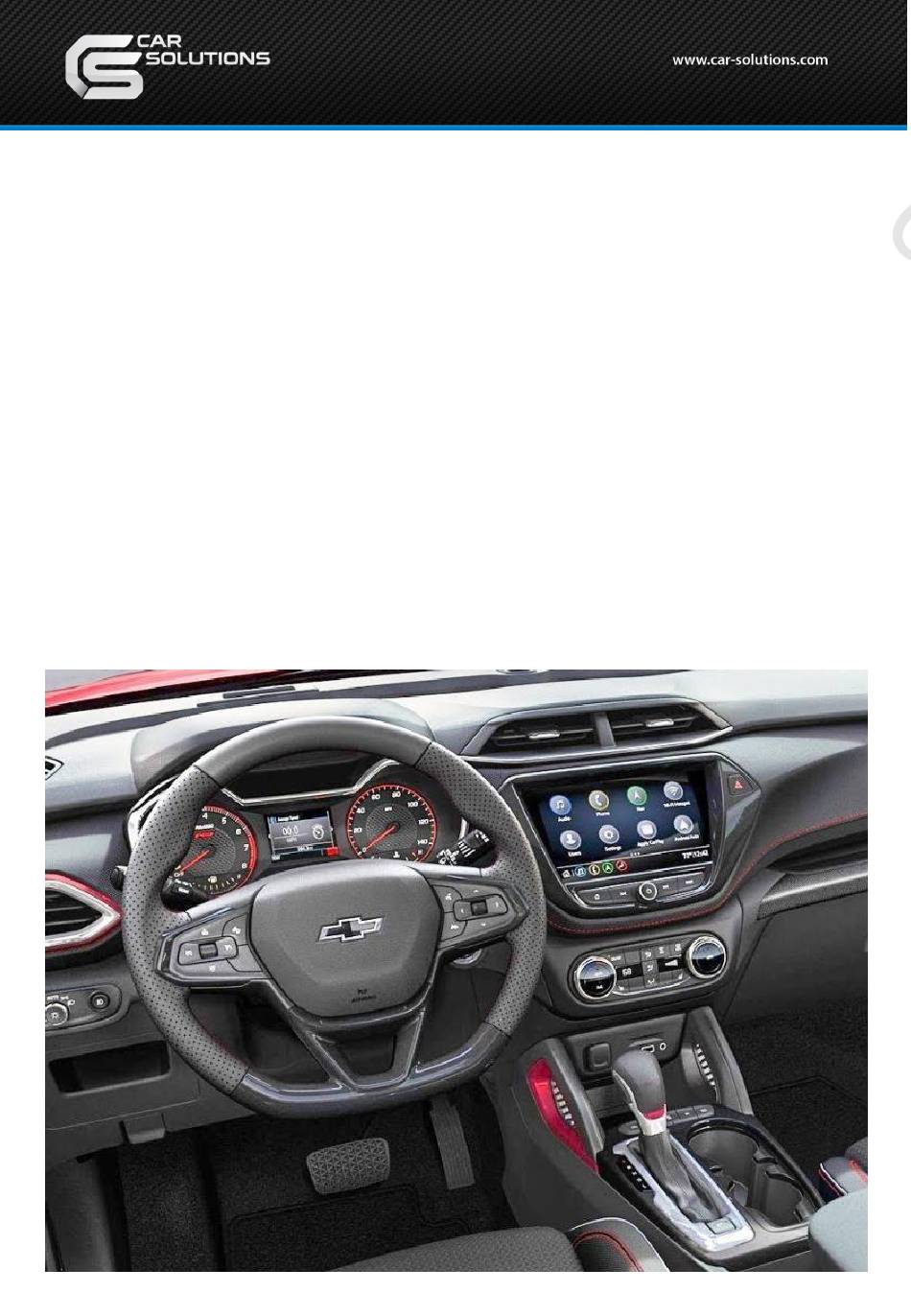

- Page 1 Installation Manual Multimedia Interface for Chevrolet Trailblazer / Opel Insignia 2020 QHLI-CAMARO car-solutions.com support@car-solutions.com...
-
Page 2: Specification

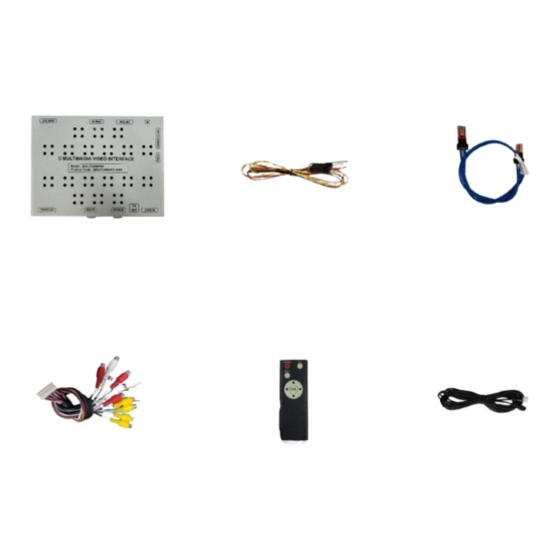

Specification Compatibility: Opel Insignia 7” 2020 Chevrolet Trailblazer 8” 2020 Chevrolet Colorado 8” 2022 Support Multi-Touch Function • Mode change with OEM button • Support moving PAS Line on rear camera mode • Interface Input / Output specification : Input: LVDS x1 A/V x2 CVBS(Front Camera) x1... - Page 3 Components MAIN BOARD POWER CABLE LCD CABLE QCPASS1474 HPOWER0250 HLCDCA0056 AV CABLE REMOTE CTRL. IR CABLE HAVCAB0066 HIRCAB0002 REMOTE0001 BUTTON CABLE UART CABLE HARETC0001 HTOUCH0015 car-solutions.com support@car-solutions.com...
- Page 4 Components with Options LCD Cable IN/OUT for Colorado Old Model [Optional] 6P male to 12P 6P female to 12P male LCD Cable male LCD Cable HLVDSC0073 HLVDSC0074 car-solutions.com support@car-solutions.com...
- Page 5 Components with Options HDMI 480P 1Port Sub Board [Optional] HDMI-SUB HDMI-SUB Cable QCPASS1435 HARETC0327 T/S OUT Pin #2 (middle) is used for touch data transmission (UART-TX) HDMI UART- QROIX car-solutions.com support@car-solutions.com...
-
Page 6: Cable Connection
Cable Connection PWR/CAN: Connect provided power/CAN cable MULTI: Connect Multi cable HD SUB: for HD1P Option Board connection T/S OUT: Connect UART 3P cable, Pin #2 (middle) used for touch data transmission [UART-TX] LVDS IN: LVDS Input (QROIX) OEM IN: Connect one end of the supplied LCD cable and the other end to the OEM head unit OEM OUT: Connect OEM LCD cable coming from the OEM monitor DIP S/W: DIP SWITCH setting... -
Page 7: Dip Switch Settings
DIP Switch Settings * ON: DOWN / OFF: UP Please make sure to disconnect the power cable of interface and reconnect to apply dip ... 10 switch setting whenever changing DIP switch. Dip S/W SELECT OFF : LVDS Mode ON : LVDS Mode Skip OFF : HDMI Mode ON : HDMI Mode Skip OFF : AV1 Mode... - Page 8 DIP Switch Settings * ON: DOWN / OFF: UP Please make sure to disconnect the power cable of interface and reconnect to apply dip ... 10 switch setting whenever changing DIP switch. Car Model DIP4 DIP6 DIP8 DIP9 DIP10 single wire can Trailblazer normal can Equinox...
-
Page 9: Factory Settings
Factory Settings ◀ Long Press: Access to the Factory Menu OK Short Press: Selection or Mode Change ▶ Long Press: Factory Reset ▲ Short Press: Moving Upward ▼ Short Press: Moving Downward MENU Short Press: Back PIP Short Press: No Use Menu of FACTORY IMAGE PAS TYPE... - Page 10 Factory Settings Menu of FACTORY IMAGE CAR MODEL PARK LVDS MODEL UTIL1 HDMI MODEL UTIL2 AVOUT SELECT INFO FACTORY RESET MENU to Return SEL to Select/Save UTIL1 CAR MODEL : Selection for gear CAN and touch use (Trailblazer TBZ/ INSIGNIA / TAHOE / SILVERADO / EQUINOX / CAMARO) LVDS MODEL : Android, Car-play, Navigation Model Setting SUNE10, SE NAV2, SE CP : 800x480 •...
- Page 11 Factory Settings Menu of FACTORY IMAGE REMOTE CONTROL PARK REMOTE TYPE UTIL1 IR MEMORY UTIL2 INFO MENU to Return SEL to Select/Save UTIL2 REMOTE CONTROL: Able to control UI remote by touch (OFF / ON) REMOTE TYPE: Able to use remote control on DVD, DTV by selecting “User” after IR memory registered IR MEMORY: Register IR memory of remote control for DTV, DVD (AV1 / AV2) car-solutions.com...
- Page 12 LCD Cable Connection * Head unit is under the glove box. Car with OEM Navigation: TRAILBLAZER, SILVERADO Connect original LCD Cable to Connect supplied LCD interface “OEM OUT” Cable from interface “OEM IN” to the head unit For the car with original navigation: TRAILBLAZER, SILVERADO •...
- Page 13 LCD Cable Connection_ Colorado Old Model * Head unit is under the glove box. Car without OEM Navigation: COLORADO 800x480 old (LVDS USB connector) Behind the monitor LVDS USB Type Connect OEM 6P connector(behind the monitor) to provided 6P Connect provided 6P female connector and 12P male to the monitor and male connector to “OEM IN”...
- Page 14 Power / CAN Connection_ Behind the head unit Car with OEM Navigation: TRAILBLAZER, SILVERADO Green: Single Wire connect to Interface Power Pin #7 (MMI) Black -> GND connect to Interface Power Pin #2 (GND) Red -> 12V B+ connect to Interface Power Pin #1 (ACC) * There’s 2 red wire, both are B+,...
- Page 15 Power / CAN Connection_ Colorado Old Model Car without OEM Navigation: COLORADO 800x480 old (LVDS USB connector) Green/Gray: Single Wire connect to Interface Power Pin #7 (MMI) Single Wire CAN must be connected, otherwise screen display will goes to black. Head unit is under the glove box Behind Head Unit...
- Page 16 Power / CAN Connection_ OBD You can also find single wire CAN in the OBD plug, And OBD plug is under the steering wheel Black -> GND Green: Single Wire Red -> 12V B+ connect to connect to connect to Interface Power Interface Power Interface Power...
- Page 17 OEM Button Use * Please long press below button for mode change (function every 3secs). * Home button long press for mode change only available when Dip #8 ON. * Home/Back button short press to OEM mode. * Panel_ Home button doesn’t support with Opel Insignia car-solutions.com support@car-solutions.com...
- Page 18 OEM Button Use_ Opel Insignia * Please long press below button for mode change (function every 3secs). Dip #8 set OFF • Mode change with handle_ voice button • Panel_ Home button doesn’t support with Opel Insignia • car-solutions.com support@car-solutions.com...
- Page 19 OEM Button Use_ Colorado * Please long press below button for mode change (function every 3secs). Dip #8 set OFF • Mode change with handle_ right arrow button • Panel_ Home button doesn’t support with Colorado • car-solutions.com support@car-solutions.com...
- Page 20 QROIX Connection by LVDS Input HDMI Cable Factory Settings -> FUNC -> LVDS MODEL : QROIX • car-solutions.com QROIX power and audio cable connect to the car. • support@car-solutions.com...
- Page 21 QDISPLAY Connection by LVDS Input HDMI Cable LVDS OUT Factory Settings -> FUNC -> LVDS MODEL : SE-CP • car-solutions.com QDISPLAY power and audio cable connect to the car. • support@car-solutions.com...
- Page 22 Installation Demo Chevrolet Trailblazer_ QROIX car-solutions.com support@car-solutions.com...
- Page 23 Installation Demo Opel Insignia_ QROIX car-solutions.com support@car-solutions.com...
- Page 24 Installation Demo Opel Insignia_ QROIX car-solutions.com support@car-solutions.com...
- Page 25 Installation Demo Colorado_ 360 AVM car-solutions.com support@car-solutions.com...
- Page 26 Power Cable Drawing No Use car-solutions.com * Pin #7 (MMI) is for single wire CAN connection. support@car-solutions.com...
- Page 27 AV Cable Drawing car-solutions.com support@car-solutions.com...
