Summary of Contents for Car Solutions QPI_PCM4.0

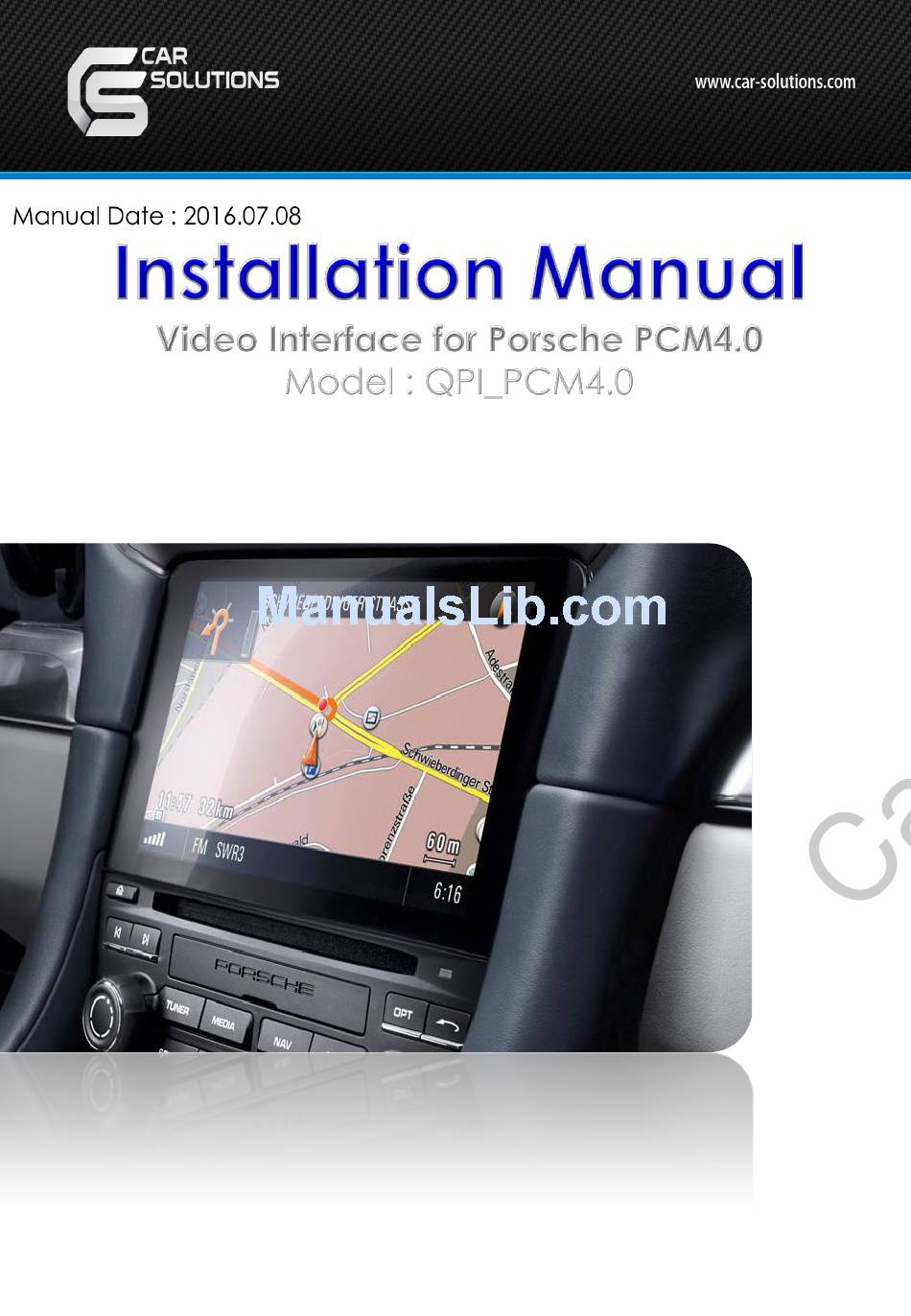

- Page 1 www.car-solutions.com support@car-solutions.com...
- Page 2 •Specification Car Compatibility : 2016 Porsche model with PCM4.0 Components : Interface* 1ea Multimedia interface Input/output spec Input : Analog RGB*1, A/V*1, CVBS(Rear Camera)*1 CVBS(Front Camera)*1 Output : To LCD*1 Power spec Input power : 8VDC ~ 18VDC Consumption : 5WATT Switch input mode External video sources skip function : able to control input ...
- Page 3 •Product exterior Length-90mm Height-18mm Width-140mm POWER/UART(Power / UART Connection) | REAR-CAM(Rear camera connection) | NAVI(Navigation connection) | AV(AV cable connection) | DIP S/W(Dip switch setting) | LVDS-OUT(Original LVDS cable connection) | LVDS IN(Supplied LVDS cable connection) | T/S OUT | IR(IR cable connection) | TEST(No use) | MODE(Button cable connection) |LED •Components POWER * 1ea JACK BY JACK * 1ea...
-
Page 4: Dip Switch
•DIP SWITCH ※ ON : DOWN / OFF : UP FUNCTION Dip S/W SETTING OFF : RGB DISPLAY RGB INPUT MUTE ON : RGB Skipping RGB Mode OFF : AV1 DISPLAY AV1 MODE MUTE ON : Skipping AV1 Mode OFF : AV2 DISPLAY AV2 MODE MUTE ON : Skipping AV2 Mode OFF : AV3 DISPLAY... - Page 5 •Factory setting Adjust a current screen position and size. Menu of FACTORY IMAGE H-POSITION H-POSITION : Move display horizontally PARK V-POSITION UTIL1 H-SIZE(NAVI) V-POSITION : Move display vertically UTIL2 INFO H-SIZE(NAVI) : Adjust the horizontal size of Navigation MENU to Return SEL to Select/Save Menu of FACTORY Adjust rear view camera setting.
-
Page 6: Factory Setting
•Factory setting Navigation & Car model setting up Menu of FACTORY IMAGE NAVI MODEL NAVI MODEL : Setting up RGB Navigation. PARK AVOUT SELECT UTIL1 FACTORY RESET Default UTIL2 INFO MYVI_WVGA ICUBE_WVGA QROI_WVGA MENU to Return SEL to Select/Save GI5000A_WVGA GI8000N_WVGA SMITH_PAD_WVGA WP9200_WVGA... - Page 7 •OEM Buttons usage BUTTON Press Function Switch modes HOME (OEM→NAVI→AV1→AV2→ AV3) Long press (2 sec) BACK Activate front camera Long press (7 sec) RESET HOME TUNER MEDIA NAVI Short press Back to OEM screen SOURCE PHONE www.car-solutions.com BACK support@car-solutions.com...
-
Page 8: Installation Diagram
•Installation Diagram NAVI BOX RX wire IR CABLE BUTTON CABLE TOUCH CABLE POWER CABLE A/V OUT SAFE DTV-IR FRONT-DETECT DVD-IR F-CAM CAN-H A/V IN 2 CAN-L A/V IN 1 CAN2-H(IN) CAN2-L(IN) CAN2-H(OUT) CAN2-L(OUT) NAVI CABLE REAR CABLE Connection Connection NAVI BOX www.car-solutions.com support@car-solutions.com... - Page 9 •Power / LVDS cable connection Original Command Original LVDS cable From command Jack by jack cable Power cable (HPOWER0121) (HPOWER0120) 1) Disconnect the original power cable from the command and connect to the jack by jack cable. 2) Disconnect the original green LVDS cable and connect it to “LVDS OUT”...
- Page 10 •Power / LVDS cable connection Take out the monitor from the Disconnect all cables from the center fascia. command. Connect a bunch of cables from Connect the other side of Jack by the command to a female jack cable (Male) to the command. connector of Jack by jack cable.
-
Page 11: Troubleshooting
•Trouble shooting Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. - Page 12 •Revision History Date History Page www.car-solutions.com support@car-solutions.com...
