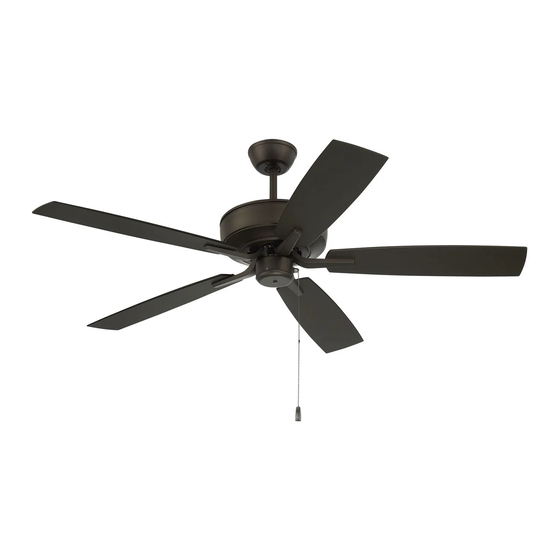

Outdoor Pro Plus 52"
Installation Guide
For model:
OP52
LISTED
For
Wet Location
E192641
net weight of fan: 15.76 lb (7.15 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pg. 7
Canopy Assembly. pg. 8
Blade Assembly. pg. 8
Testing Your Fan. pg. 9
Troubleshooting. pg. 10
Parts Replacement. pg. 10
Warranty. pg. 10
page 1
PRINTED IN CHINA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Craftmade OP52
Summary of Contents for Craftmade OP52
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Outdoor Pro Plus 52” Installation Guide For model: OP52 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly. -
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) blades a clearance of 7 feet (2.13m) from the (2.13m) floor and 30in. (76cm) from any wall or obstruction. -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. Remove hanging ball from downrod provided by stop pin loosening set screw on hanging ball. Lower set screw hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram hanging ball Loosen yoke set screws and nuts at top of motor diagram 1 housing. - Page 6 5. Fan Assembly. (cont.) Thread wires through hanging ball and then slide hanging ball over downrod--the top of the weatherproof downrod should be noted as having a set screw hanging hole; use this hole when setting the set screw. ball cover Insert stop pin into top of downrod and raise electrical wiring hanging ball.
-
Page 7: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. white supply wire ground CAUTION: Be sure outlet box is properly (green or bare) black supply wire grounded or that a ground wire (GREEN or Bare) is present. -
Page 8: Canopy Assembly
7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging screw bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging canopy bracket and push up. -
Page 9: Testing Your Fan
9. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain. Start at the OFF motor position (no blade movement). First pull will set housing the fan to HI. -
Page 10: Troubleshooting
Contact Craftmade Customer Solutions: Service at 1-800-486-4892 to arrange for return of fan. Return fan, shipping prepaid, to Craftmade. We will repair 1. Check wall switch to fan. or ship you a replacement fan, and we will pay the return 2.
