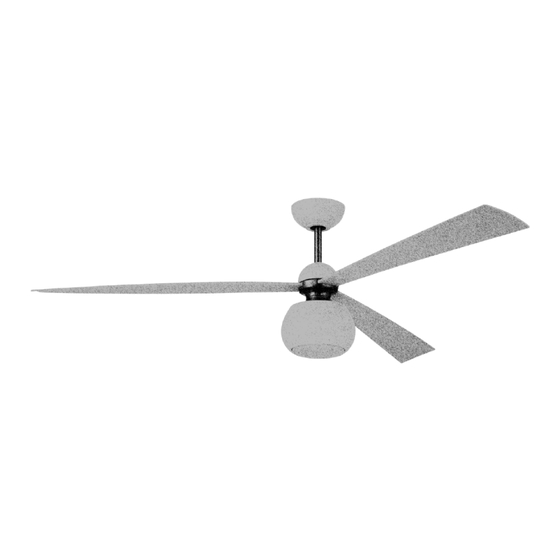

Otto
Installation Guide
For Model:
OTT60
WARNING:
DC Motor will not operate
until blades are installed
Remote control and
receiver are
pre-programmed
E192641
net weight of fan: 13.42lb ( 6.10 kg )
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 3
Unpacking Your Fan. pg. 4
Parts Inventory. pg. 4
Installation Preparation. pg. 5
Hanging Bracket Installation. pg. 5
Blade Assembly. pg. 6
Fan Assembly. pgs. 6 - 8
Wiring. pg. 9
Canopy Assembly. pg. 10
Light Kit Assembly (Optional). pg. 11
Automated Learning Process./
Activating Code. pg. 12
Remote Control Operation. pg. 12
Smart Ceiling Fan Wi-Fi Control.
pg. 13
Testing Your Fan. pg. 14
Troubleshooting. pg. 15
Warranty. pg. 15
Parts, Replacement or
Technical Assitance. pg. 15
page 1
PRINTED IN CHINA
Advertisement
Related Manuals for Craftmade Otto
Summary of Contents for Craftmade Otto
- Page 1 READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Otto Table of Contents: Installation Guide Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 For Model: Installation Preparation. pg. 5 OTT60 Hanging Bracket Installation. pg. 5 Blade Assembly.
- Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
- Page 3 Light kit is dimmable to 10% with the remote control included. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
- Page 4 1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor assembly and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
- Page 5 3. Installation Preparation. To prevent personal injury and damage, ensure that the blade edge hanging location allows the blades a clearance of 7 feet (2.13m) from the floor and 30in. (76 cm) from the outer inches (76 cm) edge of the fan and any wall or obstruction. This fan is 7 feet (2.13 m) suitable for room sizes up to 400 square feet (37.2 square...
- Page 6 5. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blade attachment blades. If overtightened, blades may crack and break. screws/lock washers Locate 3 blade plates and 9 blade attachment screws/lock washers in hardware packs.
- Page 7 6. Fan Assembly. (cont.) Slide yoke cover, canopy cover and canopy over electrical wiring downrod. [Refer to diagram 3.] (Note: Canopy safety cable cover must be turned with smooth side toward downrod motor housing.) canopy Thread safety cable and wires through hanging ball;...
- Page 8 6. Fan Assembly. (cont.) With the hanging bracket secured to the outlet safety cable loop box and able to support the fan, you are now wood ready to hang your fan. Grab the fan firmly with ceiling joist two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the wood screw and washer...
- Page 9 7. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. white supply wire CAUTION: Be sure outlet box is properly ground (green black supply wire or bare) grounded and that a ground wire (GREEN or BARE) is present.
- Page 10 8. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging hanging bracket. Partially loosen the other screw. bracket Lift canopy to hanging bracket. Place rounded part screw of slotted hole in canopy over loosened screw in hanging bracket and push up.
- Page 11 9. Light Kit Assembly (Optional). Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing female plug from motor housing to come through hole in middle of fitter plate.
- Page 12 10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on backside of remote control by loosening screw on battery cover.
- Page 13 12. Smart Ceiling Fan Wi-Fi Control. (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.
- Page 14 13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test the light ON/OFF function by pressing the button; test the dimmer function (if applicabel) by pressing the button and holding it down for up to 5 seconds.
- Page 15 Warranty. Troubleshooting. CRAFTMADE LIMITED LIFETIME WARRANTY: WARNING: Failure to disconnect power supply prior CRAFTMADE warrants this fan for use as intended to troubleshooting any wiring issues may result in under the following provision: CRAFTMADE will serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate Problem: Fan fails to operate.
