Aries P204046 Installation Manual

INSTALLATION MANUAL
Parts List

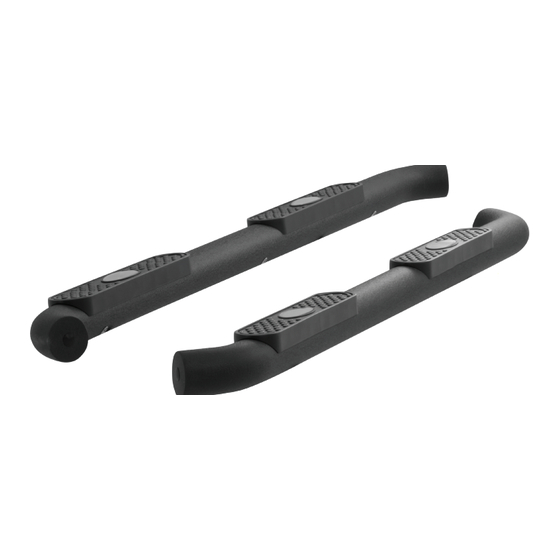

1 Driver / left side bar
1 Passenger / right side bar
6 Mounting bracket, universal
13 Clip nut, M8
13 Hex bolt, M8 x 25mm
13 Flat washer, M8
13 Lock washer, M8
13 Hex bolt, M10 x 30mm
15 Flat washer, M10
14 Lock washer, M10
1 Bolt plate, M10
2 Hex nut, M10
1 Plastic bolt retainer, M10
1 Def-tank L-bracket
1 Def-tank support bracket
Tools Required
Ratchet Level
Socket, 13mm Wrench, 16mm
Socket, 16mm
Torque Specifications
M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Level of Difficulty
Easy
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Always start threaded fasteners by hand and finish tightening with a wrench.
Do not use an impact driver as this may result in cross-threading and cause
damage to the side bar.
PAGE 1 • P204046-INS-RA • 800.798.0813 • NEED ASSISTANCE?
