Aries P2066 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy

Parts List

1 Grille guard
1 Driver / left frame
mounting bracket
1 Passenger / right frame
mounting bracket
2 Top mounting brackets,
2015-on only
1 Wrench, S=4
1 Wrench, S=5
2 Button head screw, 8mm x 20mm
2 Button head screw, 8mm x 25mm
4 Lock nut, 8mm
2 Lock washer, 8mm
10 Flat washer, 8mm
2 Hex bolt, 8mm
4 Lock washer, 10mm
8 Flat washer, 10mm
4 Hex nut, 10mm
4 Hex bolt, 10mm
2 Clip nut, 8mm

Tools Required

Socket set Wrench

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

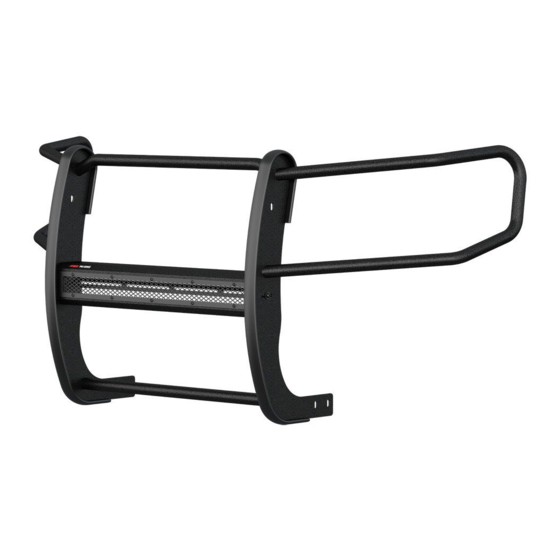

Product Photo
Brackets and Hardware

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
• NEED ASSISTANCE? • 877.287.8634 • P2066-INS-RB • PAGE 1
P2066
