Uplift Desk CHR463 Manual

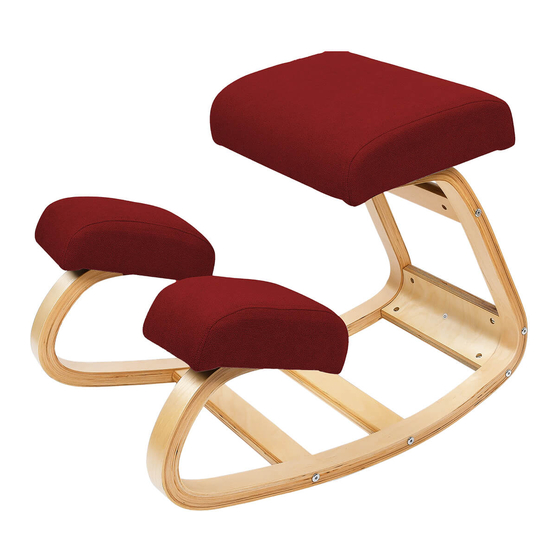

Ergonomic Kneeling Chair
CHR463
Package Contents
Rocker, qty 2 Large Brace
Hardware Components
Allen Wrench (4mm)
M6 x 80mm (3"), qty 2
Step 1
A. Using the Large Brace, connect the right and left Rockers
while making sure it is properly aligned. Insert the Large
Brace's metal screw-pegs into the holes on the back curve of
each Rocker.
B. Insert a Medium Screw in each of the holes from the outside
of each Rocker and begin tightening with the Allen Wrench,
but do not fully tighten until Step 3.
Step 2
Slide the Small Brace between the Rockers, lining up the wood
pegs with the holes in the Rockers.
Note
The Small Brace's outer edges flare slightly out. Make sure the
flared side is facing the front of the chair assembly.
If you wish to assemble the kneeling chair so that the Barrel
Nuts are hidden, simply insert the Small Brace with the Barrel
Nut holes facing the floor.
Step 3
A. Insert a Barrel Nut into each hole on the Small Brace.
Make sure the notch on each Barrel Nut is facing up and
perpendicular to the Rockers.
B. Insert a Long Screw into each hole on the outside of the
Rockers and begin tightening. Once all screws from Step
1 and Step 3 are in place, tighten them all with the Allen
Wrench.
Small Brace Seat Cushion
Long Screws Medium Screws
M6 x 40mm (1.5"), qty 4
Assembly Instructions
Knee Cushion, qty 2
Short Screws
M6 x 30mm (1"), qty 6
Wood Pegs Barrel Nut
M6 thread, qty 2
5/16" dia x 3/4", qty 6
Large Brace
front of
assembly
Small Brace
Small Brace
