Uplift Desk CHR458 Instructions

Package Contents

Seat Back
(with armrests)
(fig. 01) (fig. 02)
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
®

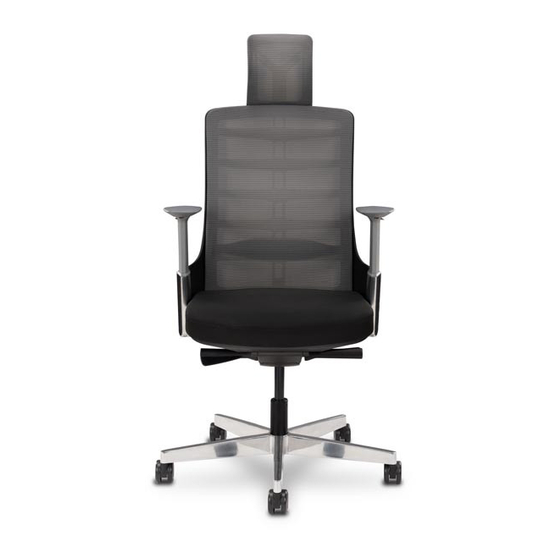

Vert Ergonomic Chair
CHR458
Headrest Base
Step 1
Insert the Casters into the holes on the Base, and press them firmly to secure
them in place.
Flip the Base, Casters down, onto the floor and insert the Cylinder into the Base
in the orientation shown, with the smaller diameter end up. Be cautious around
the end of the Cylinder to prevent it from getting oil on you or your clothes.
Step 2
Place the Seat upside down on the edge of a stable surface, such as a table.
Line up the holes for the Back and the Seat. Have a friend help keep it steady
while you attach the Back to the Seat. Using the Allen wrench, screw the Back
and Seat into place using three (3) Socket cap screws and three (3) Flat washers.
Note: The screws and washers may arrive partially inserted into the Back,
upon unboxing. Simply remove, and then attach the Seat and Back together.
Step 3
Lower the chair assembly onto the Cylinder to secure it in place.
Step 4
The Headrest fits into the Back in a specific way. Look for the lower holes
on the rubber portion of the headrest (fig. 01) and the recessed tab in the
Back (fig. 02). These two parts fit together.
Angle the Headrest, as shown. Lining up the slot on the Headrest with the
tabs on the Back, tilt it forward firmly, fitting the two parts together.
Next, insert two (2) Socket pan head screws and tighten using the Allen wrench.
And finally place the two (2) Plastic caps over the screws.
Socket cap screw
(M8x20)
Flat washer
Socket pan head screw
(M6x20)
Plastic cap
Allen wrench
Cylinder Casters
(qty 5)
(qty 3)
(qty 3)
(qty 2)
(qty 2)
(L-shape)
CHR458/R01
