3.1 PCB BYPASS MODE
When the bypass mode is selected, the heater will operate at 100% of rated power OR may be controlled by
other type of external control system. Installer or specifier is responsible for compatibility and safety of controls
not included with this heater.
3.2

REMOTE MODE

The remote control must be pointed in the direction of the receiver on the heater body (located on the front
face) and must be used within a maximum distance of 6 m.
In remote mode the heater has 6 power levels. The power level can be selected with the remote. The selected
power level is displayed on the screen on front of the heater. The remote mode only works with the remote
control supplied with the product. L0 represents standby while L6 represents the maximum heating level.
3.2.1

OPERATION OF THE REMOTE CONTROL

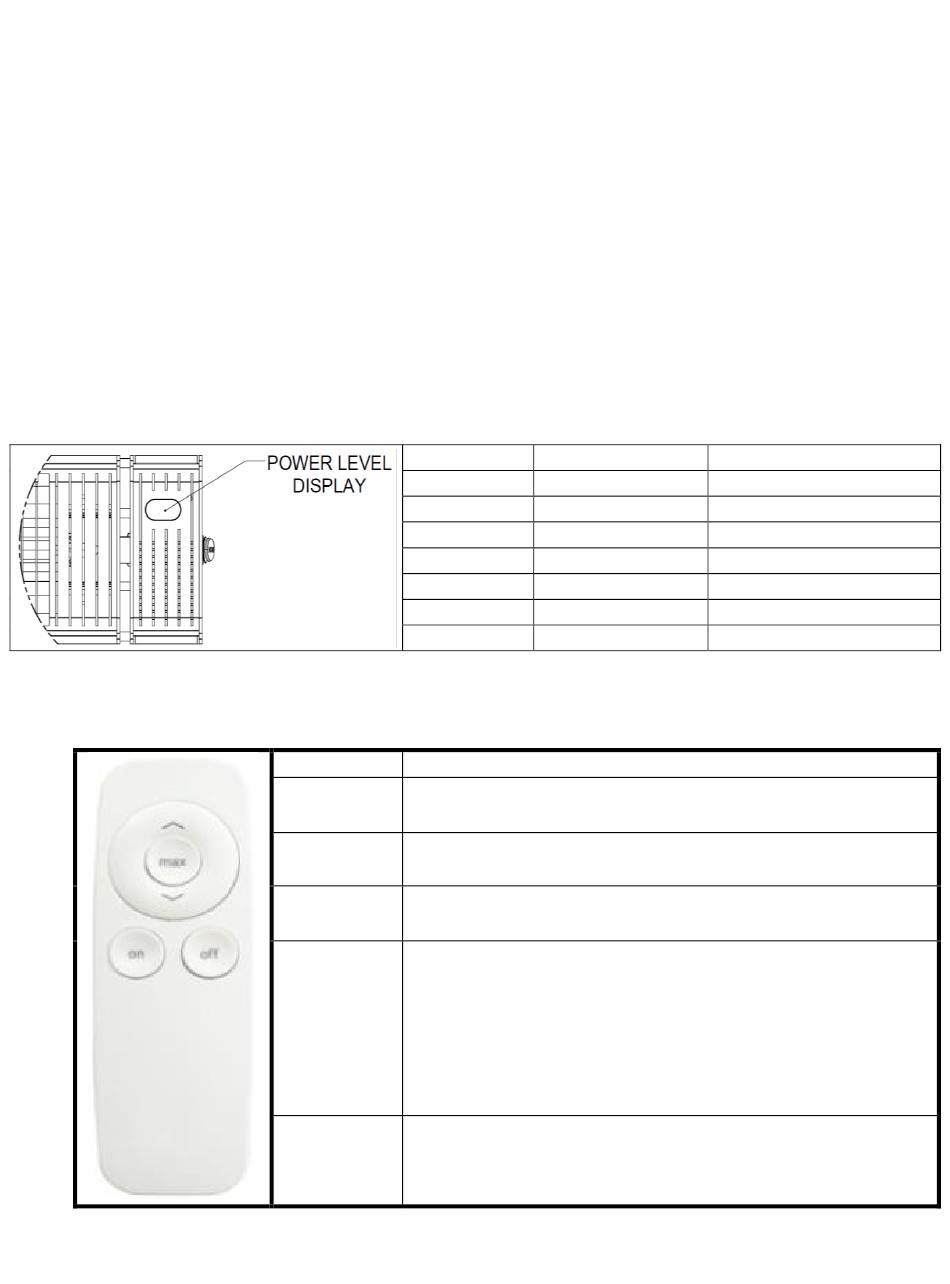

Display
L1
L2
L3
L4
L5
L6
L0
Symbol Description
˄
Up one heating level
The heater goes directly to the highest heating level (short
MAX
delay on start).
˅
Down one heating level.
To switch the heater ON: Press On.
The heater has a soft start function using only 16% of
ON
maximum power. 4 seconds after the heater has been turned
on, it will automatically switch to the last heating level used.
In case of the first-time use, after 4 seconds the heater will
automatically switch to 100% power.
To switch the heater OFF: Press OFF. The heater will switch to
OFF
Standby mode (the receiver indicator will light up).
Description
Heating level 1
Heating level 2
Heating level 3
Heating level 4
Heating level 5
Heating level 6
Standby
Power setting
33%
50%
66%
80%
88%
100%
0%
