2.2 ELECTRICAL INSTALLATION
Safety Precautions
1. Each power supply circuit must be properly grounded.
2. Use a certified ground fault protection device for wet environment installations.
3. Use a proper electrical connection box.
4. Supply voltage and frequency must correspond to the electrical rating indicated on unit's information
plate.
2.3

WALL-MOUNTED INSTALLATION

1. Take the heater out of the box and remove all
protective foam inserts.
2. Select the installation location on the wall by
identifying the studs or structural beams that will
allow the heater to be securely attached.
WARNING: Ensure minimum clearances outlined in
section 2.1 are met.
3.
Securely fasten the L-shaped brackets to the
mounting surface using both fixing holes in the
short part of the bracket. NOTE: Wall bolts or
anchors are not supplied. Select an appropriate
size to provide adequate support for the weight
of the unit and taking into consideration any
wind load conditions.
CAUTION: If there is any question regarding
security of the bolts and fixtures, contact a
professional contractor.
4. Mount the heater to the brackets with the
terminal box at the right side of the heater.
5. Adjust the heater to the desired directional
angle, then fix in this position by tightening the
fixing bolts on the brackets at the back of the
heater.
6. Secure the electrical supply cable so it does not
contact the heater body or obstruct the air vents.
Follow local and national electrical code
requirements.

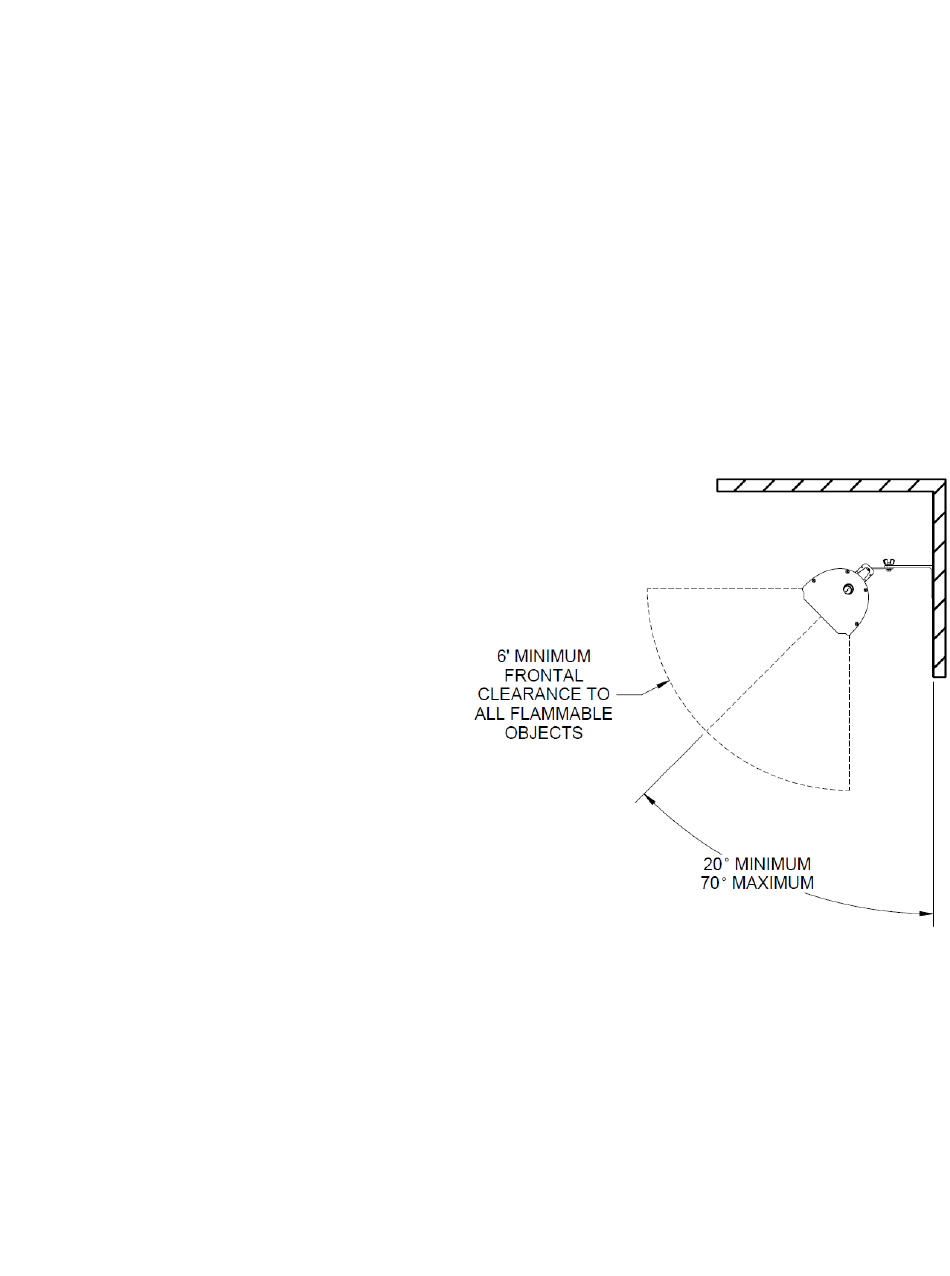

The angles of attachment are 20° to 70°,
measured from the mounting wall.
