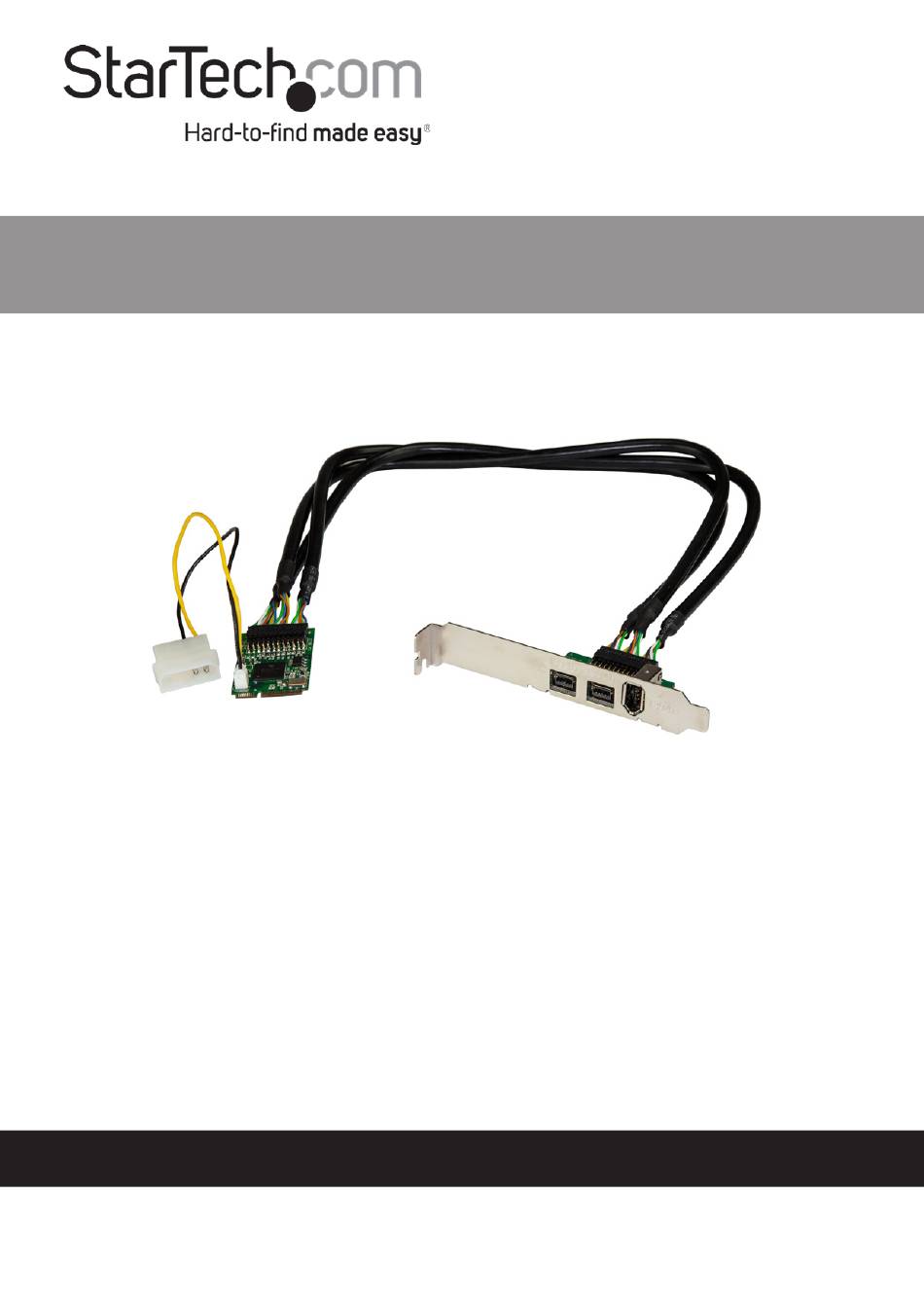

- Page 1 Mini PCI Express FireWire Adapter Card Actual product may vary from photos User Manual SKU#: MPEX1394B3 For the latest information and specifications visit www.startech.com/MPEX1394B3 Manual Revision: 05/12/2020...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Safety Statements
• 電源が入っている状態の製品または電線の終端処理を行わないでくださ い。 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I terminiali dei fili elettrici non devono essere realizzate con il prodotto e/o le linee elettriche sotto tensione. • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Table Of Contents
Compliance Statements ................1 Safety Statements ..................2 Product Diagram ..................4 Product Information ................5 Package Contents ............................. 5 Requirements ............................. 5 Installation ....................6 Hardware Installation ..........................6 Driver Installation ..................7 Specifications ..................7 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 5: Product Diagram
(e.g. Mini-ITX). Connect Peripherals to 9-Pin FireWire 800 • Connectors the Mini Adapter Card. Connect a Peripheral to 6-Pin FireWire 400 • the Mini Adapter Card. Connector To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Product Information
Windows Server® 2003, 2008 R2, 2012, or 2016 • Mac OS® 10.6 to 10.12 • Linux 3.5.x to 4.4.x LTS Versions Only • Tools Small Phillips® Head Screwdriver • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Hardware Installation
Insert the Bracket Screws through the Mini Adapter Card and into the Screw Holes on the Full Profile Bracket. Using the Small Phillips Head Screwdriver, tighten the Bracket Screws, being careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 8 Gently insert the Mini Adapter Card (mini card) into a Mini PCI Express Slot on the Host Computer’s Mother Board. Securely fasten the Mini Adapter Card to the Host Computer’s Motherboard. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 9: Driver Installation
Connect Peripheral Devices to the FireWire Connectors on the Mini Adapter Card. Driver Installation No driver or software installation is required for supported operating systems, as this card is natively supported. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Specifications
FireWire800: 800 Mbps Maximum Data • Transfer Rate FireWire400: 400 Mbps • Operating Temperature 0°C ~ 70°C (32°F ~ 158°F) • -54°C ~ 150°C (-65°F ~ • Storage Temperature 302°F) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 11 7, 8, 8.1, 10 Windows Server® 2003, • Compatible Operating 2008 R2, 2012, 2016 Systems Mac OS® 10.6 to 10.12 • Linux 3.5.x to 4.4.x LTS • Versions Only To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
