Fametech Tysso KS-1827 Quick Installation Manual

KS-1827
27-Inch Digital Self-Order Kiosk
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.

Use only parts, especially power adapter, recommended by the

manufacturer; unapproved parts may be hazardous.
Make sure that the voltage applied to the power outlet is within the specified

range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
Power off the system and remove the power adapter while cleaning the

system.
Before powering on the system, make sure all the peripherals are

firmly installed.

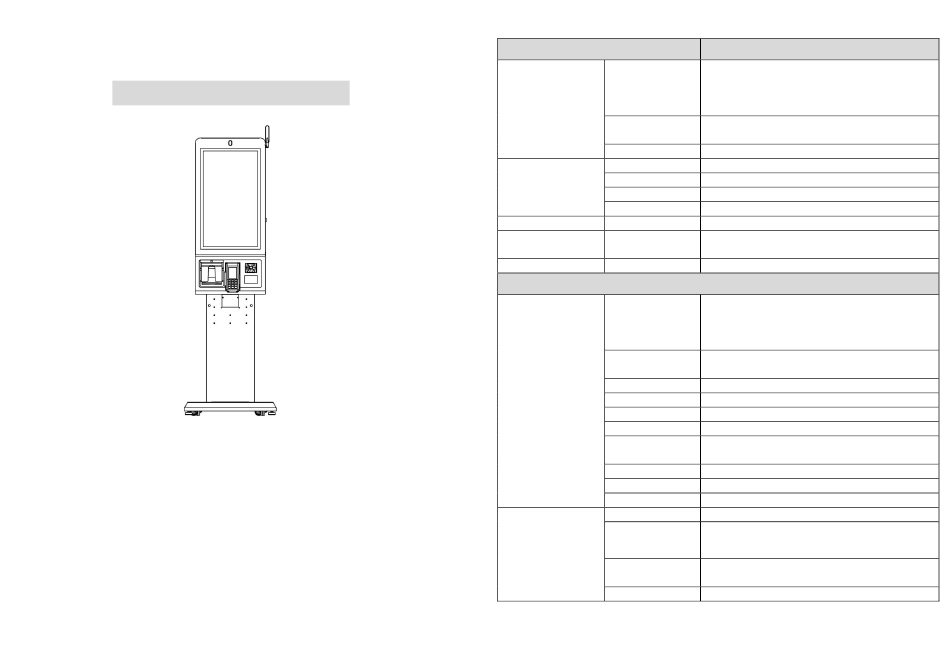

 Specifications
Model Name
Processor
Core Logic
Memory
Storage
Panel Size
Resolution
LCD Panel
Brightness
View Angle
Touch Panel Modular Parts
RF
Wi-Fi / 4G LTE
Communication
Speaker Internal Speaker 2 x 5W Speakers
I/O Interface
USB
COM
LPT
Internal I/O
HDMI
(Box PC)
VGA
Audio
Cash Drawer
DC Power Out
Power Switch
Power LED
USB
LAN
External
I/O(Bottom)
Power Cord
Socket
Power Switch
KS-1827
Intel® Core™ i3-1115G4 (Tiger Lake)
6M Cache, Max. 4.1 GHz
Intel® Core™ i5-1135G7 (Tiger Lake)
8M Cache, Max. 4.2 GHz
2 x 260 pin DDR4 SO-DIMM
(3200MTs, up to 32GB)
1 x M.2 SSD (PCIe4.0 x 4 NVMe)
27-inch VA LED Panel
1080 (V) x 1920 (H)
300nits
89° / 89° / 89° / 89°
True-Flat PCAP Touch (G+G)
Option
3 x USB 3.2 Type A
1 x USB 3.2 Type C (w/ DP ALT mode)
6 x USB 2.0 Type A
(5 of them USB for TP/2D/PRP/outlet x2)
3 x COM (RJ45), w/ RI/5V/12V by BIOS
2 x COM (DB9), w/ RI/5V/12V by jumper
1 x Parallel Port (option)
1 x HDMI Port
1 x VGA (DB15)
1 x Line-out & 1 x MIC-in
1 x RJ11 Port supports 2 cash drawer
w/ 12V/24V by jumper
1 x DC 12V Power Out (DC 2.1mm)
1 x SPST-NO Momentary Rocker Switch
1 x Blue 5mm Round Diffused
2 x USB 2.0 type A
1 x RJ45 Ethernet (Host)
1 x RJ45 Ethernet (option : for EMV)
1 x AC Male Power Socket
1 x Power Switch Button
