Diode Dynamics DD5169 Programming Manual

Keep this programming guide in your glove box to reference when programming your fog lights.
NOTE: These instructions should be used only when the fog lamp is operated independently. If you have both the headlight and the fog light,
all headlight programming will be applied automatically to the fog light.
Programming Tips:
• Parking in front of a window or reflective wall makes it easier to see what's happening!
• While it seems like a lot of information, the programming method follows a standard theme.
After just a few minutes, you'll get the hang of it! Please contact Diode Dynamics with
any questions.
• Always start with the vehicle off, and with fog light switch in the OFF position.
• To enter any programming mode, you must flash your lights off and back on a specific number
of times. If you forgot the count, switch the lights off and wait 10 seconds, then start again.
DRL Color
1. Turn the hazard lights on and back off, so they only flash one time.
2. Immediately toggle your fog lights on and back off three times. (
3. Turn the hazard lights on and back off again, so they only flash one time.
4. The fog light DRL will flash in the selected color three times, and save the selection.
To change the color again, repeat this process.
Ford F - 150 Elite Fog Light Programming Guide
)
See back for further instructions.

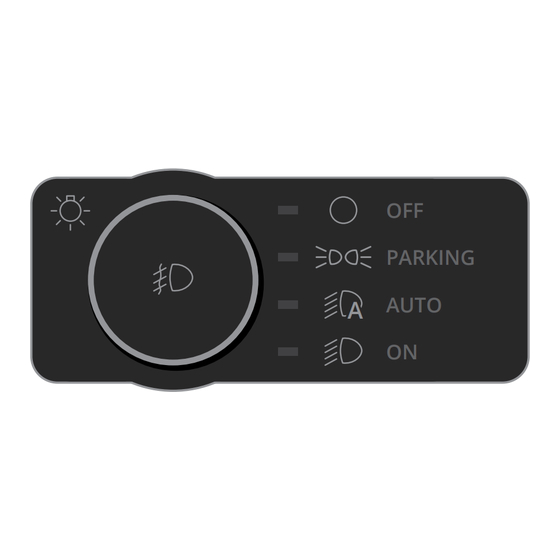

OFF
PARKING
AUTO
A
ON
DRL COLOR
White DRL (Default)
Amber DRL
