This menu displays a graphic image of the outputs. You can use the cursor to move through the outputs in order
to select the one you wish to assign. Pressing the SET button at a selected output highlights the FUNCTION field,
where you can select the signal to be assigned to this output. Pressing the SET button again highlights the FAIL
field, and pressing the SET button a third time causes the cursor to move back to the Outputs field.

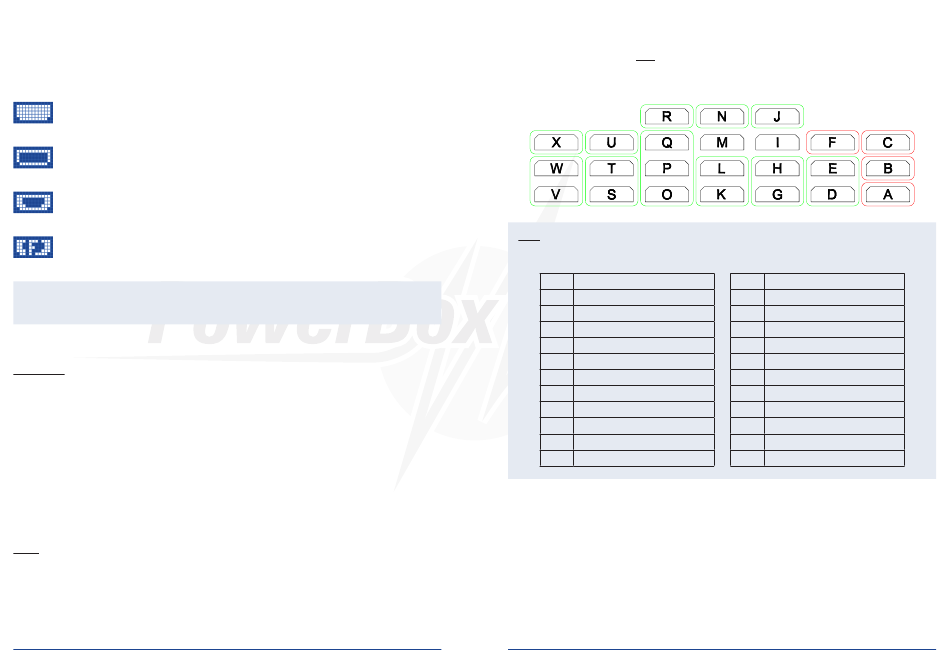

Key to the different displays for the outputs:
Cursor, or selected output
Free output, not yet assigned
Assigned channel, output switches to Hold when fail-safe is triggered
Assigned channel, output switches to saved fail-safe position when fail-safe is triggered
Note: Output Mapping provides enormous scope for individual arrangements. By default most of the outputs
are pre-defined, as this minimises the amount of set-up work that has to be carried out. You will find a list of
pre-defined outputs on the next page.
The following set-up facilities are provided:
- FUNCTION:
» DIRECT 1...18:
Depending on your radio control system, you can output channels 1-18 (Futaba) directly, i.e. as they arrive from
the transmitter.
Example: the right-hand landing flap is programmed to channel 9 at your transmitter, and you want to connect
the landing flap servo to output D. Move the cursor to the OUTPUT D field, and confirm your choice with the
SET button. Set DIRECT 9 under FUNCTION. The servo connected to output D now outputs channel 9 from your
transmitter 1:1 - unless Servo Matching has been carried out on this channel.
» DS-OUT 1...6:
If you select one of these functions, the output is linked to the door sequencer. You can select which wheel door
or which valve is controlled by which door sequencer output without any restriction, but we always recommend
that you make use of the door sequencer Assistant, which determines the output assignment as shown below.
- FAIL:
» FS:
If there is a complete loss of signal at all receivers connected to the system, this output runs to a previously
determined position. See Point 7. for information on defining this position.
» HOLD:
If there is a complete loss of signal at all receivers connected to the system, this output remains in the last known
valid position.
10 PowerBox-Systems − World Leaders in RC Power Supply Systems
By default, or after you have RESET the OUTPUT MAPPING, certain outputs are pre-defined in order to reduce
the amount of set-up work the user is required to carry out. The door sequencer functions are assigned to the
outputs listed below, but only if the door sequencer Assistant has been invoked.
If you wish to re-assign an output after setting up the door sequencer, this generally presents no problems, as the
changes do not affect the door sequencer settings.
Default output assignments:
Note:
- After a Reset the fields outlined in black are assigned as shown below:
- Fields outlined in red are assigned as shown below, but only if the Sequencer Assistant has been used:
A Direct 5 / VALVE sequencer
B R.H. wheel door
C L.H. wheel door
D Direct 8
E Direct 8
F Nosewheel door
G Direct 2
H Direct 2
I free
J Direct 9
K Direct 3
L Direct 3
www.powerbox-systems.com
M free
N Direct 10
O Direct 4
P Direct 4
Q Direct 4
R Direct 11
S Direct 7
T Direct 7
U free
V Direct 6
W Direct 6
X Direct 1
